UP6 400W 10A Smart Dual Channel AC/DC Charger


SKU: BS063-001 Category:



This is the UP6 160W/400W AC/DC Ultra Power Charger. The UP6 is a super powerful charger. The relevant charging data can be seen clearly thanks to the 2.4 inches LCD display. Convenient, compact, and easy to use, the UP6 may be the most versatile and useful charger on your workbench!

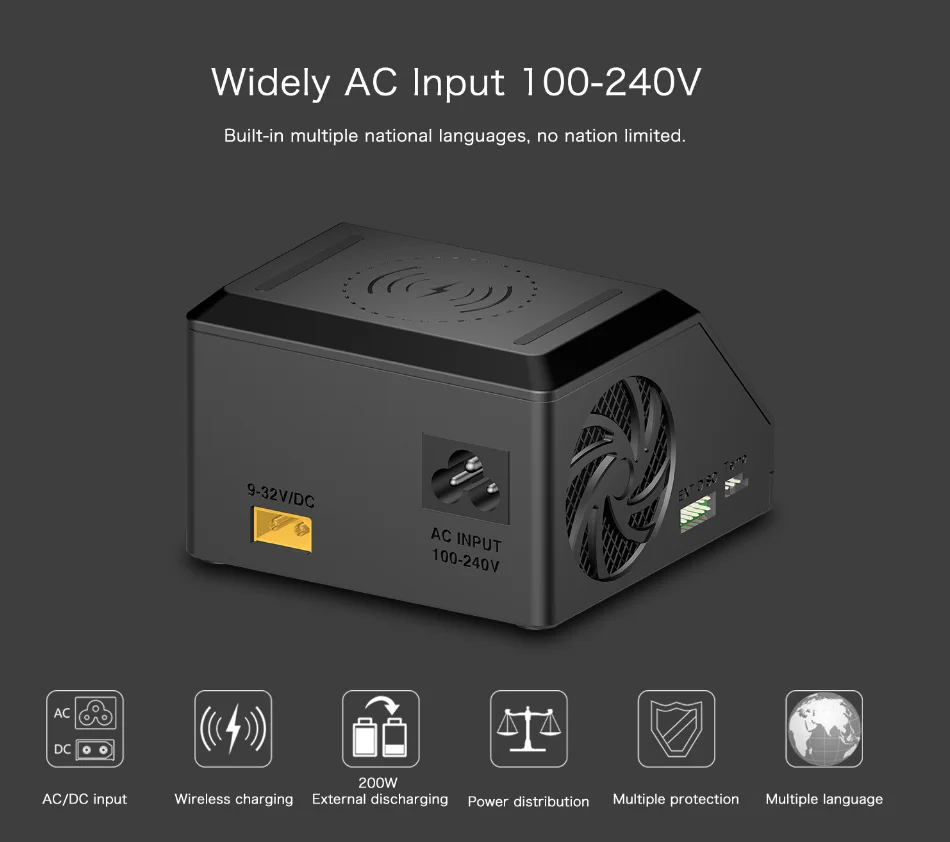

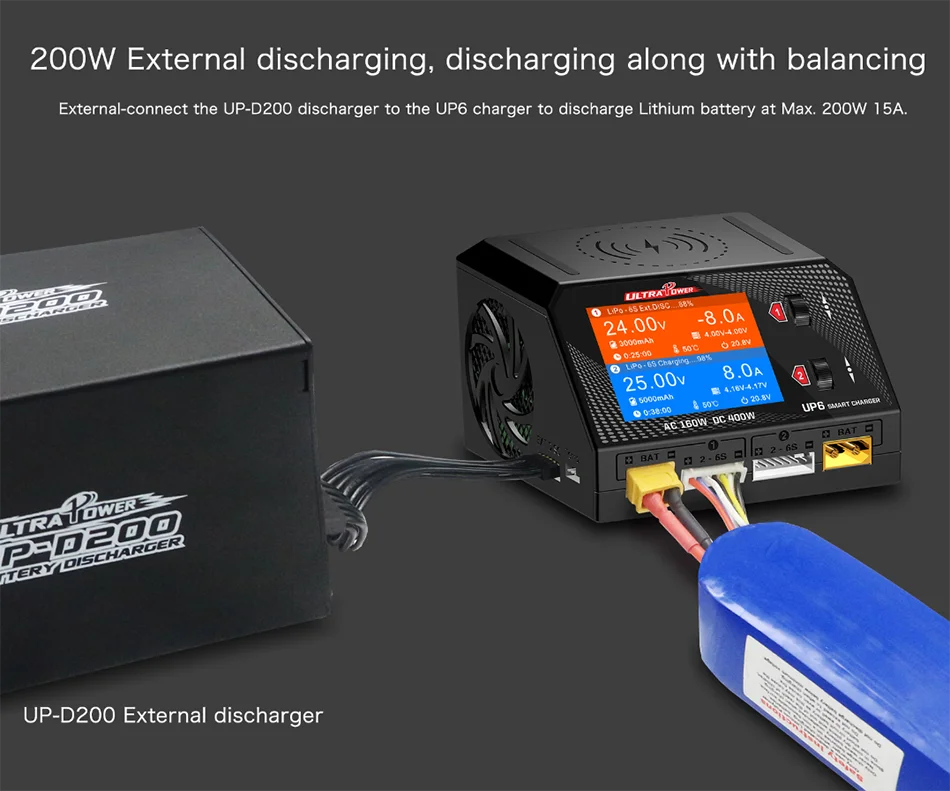

Ultra Power UP6 Charger: AC 160W 100V—240V; DC 400W 9-32V. Tow channels smart balance charger for Lipo/LiHv/Life/Lilon/NiMH/NiCD/Lead Acid Battery. Dual-channel works at the same time, and it can charge mobile phones wirelessly at the same time. Supporting phone types: iPhone X/iPhone XS/iPhone 11/iPhone 11 Pro/Samsung Galaxy S10 / Galaxy Note 10+/Huawei Mate 30/Huawei Mate 30 Pro/Xiaomi 9/ Xiaomi 9 Pro. It supports many languages: Chinese, English, German, French, Japanese. 2.4 inches high-definition IPS colorful screen, all the dates are visible under the sunshine. Colorful IPS display clearly shows real-time status. Monitoring the comprehensive real-time data and showing the battery status, judging the charging status by the LCD color. Independent output, without interference from each other. Two independent output channels, independently setting and working. 200W External discharging, discharging along with balancing. External-connect the UP-D200 discharger to the UP6 charger to discharge Lithium battery at Max.200W 15A.

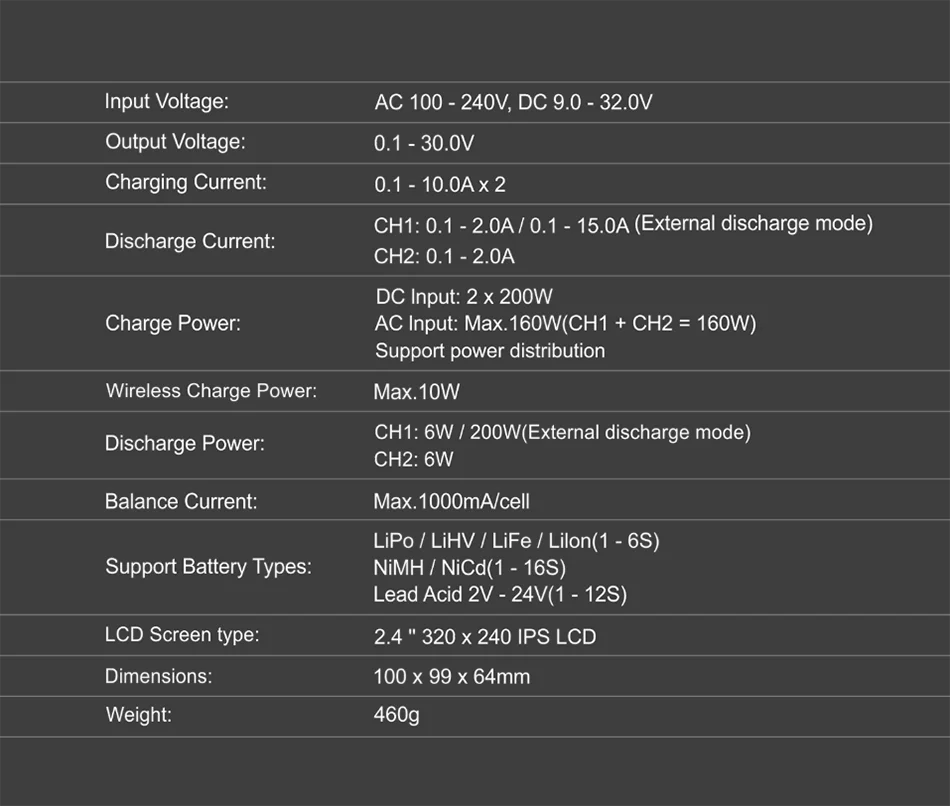

Product name: Ultra Power UP6 Charger Input Voltage: AC 100-240V, DC 9-32V Output Voltage: 0.1-30V Charge current: 0.1-10A*2 Discharge current: CH1: 0.1-2.0 A / 0.1-15.0 A (External discharge mode); CH2: 0.1-2.0 A Charge power: DC input: 2*200W AC Input: Max.160W(CH1 + CH2 = 160W) Support power distribution Wireless Charge Power: Max.10W Discharge power: CH1: 6W/200W (External discharge mode Requires D200 discharger); CH2: 6W Balance current: Max.1000 mA/cell Support Battery Types: LiPo/LiFe/LiHV/LiIo (1-6S); NiMH/ NiCd(1 – 16S); Lead Acid 2V-24V(1-12S) LCD Screen type: 2.4 inches 320×240 IPS LCD Size: 100 * 99 * 64mm Package information: Package Weight: 690g Package size: 18*12*8cm Package list: 1*Ultra Power UP6 Charger 1*Power cord 1*User instruction

Channel settings

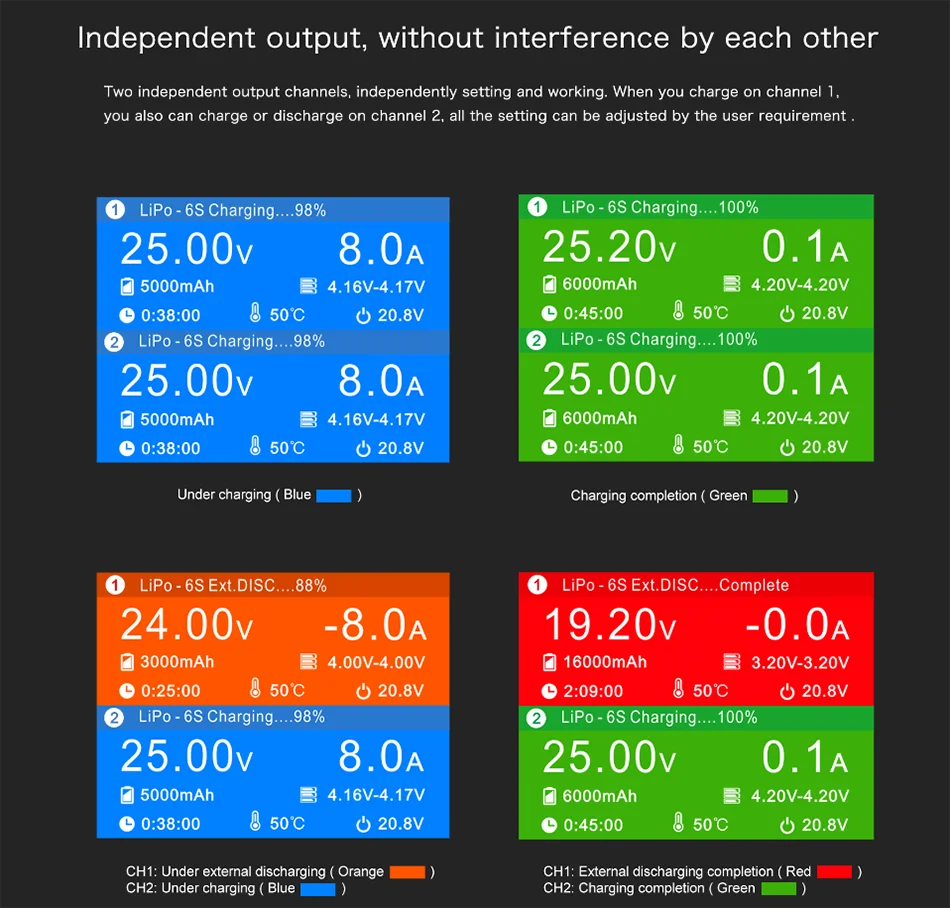

Dual-channel independent setting, you can charge different types of batteries at the same time, and you can also charge while discharging at the same time, without mutual interference.

UP6 400W 10A Smart Dual ChannelUP6 400W 10A Smart Dual Channel

Special Reminder.

External discharger, available in our shop, model: UP-D200. If you can’t find it, please contact customer service.

UP6 400W 10A Smart Dual Channel

Additional information

Weight 2 kg
