Happymodel Mobula 6 HDZero 65mm HDZero Whoop


Login to view prices

This is currently on Pre order and expected to ship by July middle. Pre order the Mobula6 HDZero at the best price now!

Introducing Mobula 6 HD Zero, the very first 65mm HD brushless whoop in the World, weights less than 23.5 grams only! Happymodel have been working on innovations of Brushless Whoop for many years. And finally, they are out with a 65mm FPV whoop carrying HD VTX. Teaming with HDZero, Runcam, Nick Burns, Mr Shutterbug, Ryan Quellet and many other enthusiasts, here the dream comes true finally! Mobula6 HDZero weighs only 23.5g, offcourse that is without the weight of the battery. However, It is nearly the same weight as of an Analog 65mm Whoop that would be around 20g.

Happymodel Mobula 6 HD features the SuperbeeF4 lite flight controller with the built in Receiver for FrSky or ELRS. With the ExpressLRS, you don’t have to worry about the Radio range. Being video range is something that lacks for a 65mm Analog whoop, Now the HDZero takes it further which increased the fun to fly it further. It uses EX0802 19000kv motors which ensures optimum perfomance and more fun with the Whoop. Need to say, this is a long range 65mm whoop now :).

HDZero is set out to set new standards for FPV that provides an unparalleled, robust, and unidirectional secure video/audio/data wireless link. In collaboration with Runcam, they have released an onboard HDZero nano camera for the Mobula 6 which makes it Mobula 6 HDZero after taking feedbacks and doing Research and development for some time. In short, Mobula 6 HDZero is going to be the favorite whoop for whoop lovers and whoop masters shortly.

Specification of Mobula 6 HD Zero Whoop:

  • Brand: Happymodel
  • Model: Mobula6 HDZero
  • Frame wheelbase: 65mm
  • Weight: 23.5 gram without battery
  • Size: 80mm*80mm*50mm
  • Receiver option:
  • SPI ELRS 2.4GHz
  • SPI FRSKY 2.4GHz
  • Compatible with 1S Lipo battery or Lihv battery PH2.0 Plug ( NOT Included)

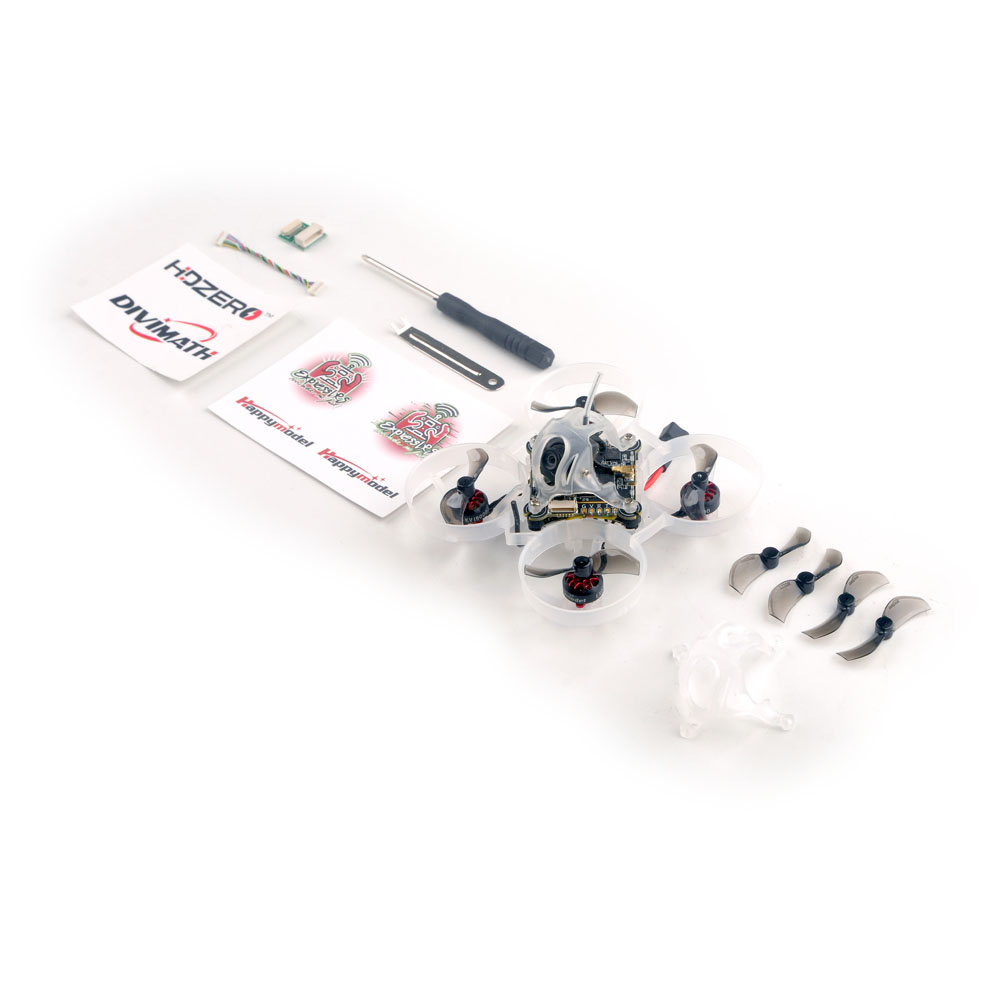

Package includes:

Item Name Qty
Mobula 6 HD 65mm frame+Canopy 1
SPI Receiver Option1: SuperbeeF4 Lite FC built-in ExpressLRS SPI RX 1
SPI Receiver Option2: SuperbeeF4 Lite FC built-in Frsky SPI RX
EX0802 KV19000 Unibell brushless motor 4
Gemfan 1210 31mm propeller(4cw+4ccw) 1
HDZero Nano Lite Camera 1
HDZero Whoop Lite VTX 1
Spare Canopy 1
Propeller disassemble tool 1
Screw driver 1



Flight controller

SuperbeeF4 Lite ELRS/FRSKY

SPI ELRS version Firmware target: CrazybeeF4SX1280

SPI FRSKY version Firmware target: CrazybeeF4FR
MCU:STM32F411CEU6 (100MHz, 512K FLASH)
Sensor: MPU-6000 or ICM20689 or BMI270(SPI connection)
Power supply: 1S Lipo Lihv battery input (DC 2.8V~4.35V)
Built-in 5A(each) Blheli_S 4in1 ESC Dshot600 ready
Built-in Betaflight OSD(SPI Control)
Built-in SPI Frsky/ExpressLRS receiver
Built-in 5V 1A BEC
Built-in voltage detection

Onboard 4in1 ESC MCU upgraded to EFM8BB21
Power supply: 1S LiPo/LiPo HV (2.8v~4.35v)
Currents: 5A continuous peak 6A (5 seconds)
Support BLHeliSuite programmable
Factory firmware: O_H_5_REV16_8.HEX
Default protocol: DSHOT150/DSHOT300/DSHOT600
Onboard SPI ExpressLRS 2.4GHz Receiver Packet Rate option: 25Hz/50Hz/150Hz/250Hz/500Hz
RF Frequency: 2.4GHzAntenna plug: IPEX
Telemetry output Power: <12dBmReceiver protocol:  SPI ExpressLRSCould bind with ELRS V2.0 firmware TX module
Onboard Frsky SPI D8 /D16 2.4GHz Receiver SPI BUS receiver Frsky D8/D16 compatible
Compatible Non EU transmitter D8 model and EU-LBT(Frsky_x_lbt)Channels: 8ch or 16ch
Failsafe support
No ground interference ( Transmitter and receiver 1 m from the ground): 100m~200mBased on CC2500 RF module Compatible with Futaba S-FHSS , Redpine protocol
Motor Mode: EX0802 19000KV
Configu-ration:9N12P
Stator Diamter:8mm
Stator Length:2mm
Shaft Diameter:Φ1mm
Motor Dimension(Dia.*Len):Φ10.5mm*14.9mm
Weight(g):1.7g
No.of Cells(Lipo):1S only
Propeller Gemfan 1219 Bi-blades Weight:0.19g
Material: PC
Pitch:1 inchProps Dia:30mm
Center Hole Dia:1mm
HDZero Nano Lite Camera 14x16x11 mm

1.5gram

0.5 inch, up to 10650 mV/Lux-sec ultra-high sensitive CMos sensor

Excellent low light performance

Fov:

4:3: D:130° H:108° v:84°

16:9:D:122° H:108° V:65°

HDZero Whoop Lite VTX 1S Input

25mW/200mW RF Output-SmartAudio Support

25.5×25.5 M2 Soft Mounting- Antenna Retention

Removable Shielding Box- 32.5×32.5mm(29x29mm inner)

4.5grams/4mm Thickness (without shielding)

Check out the old Mobula 6 HD version here. It dont have Built in ELRS and its been added to the HDZero Mobula 6 Whoop. So now get yours at Beasthobby.
