Electronics, Servos

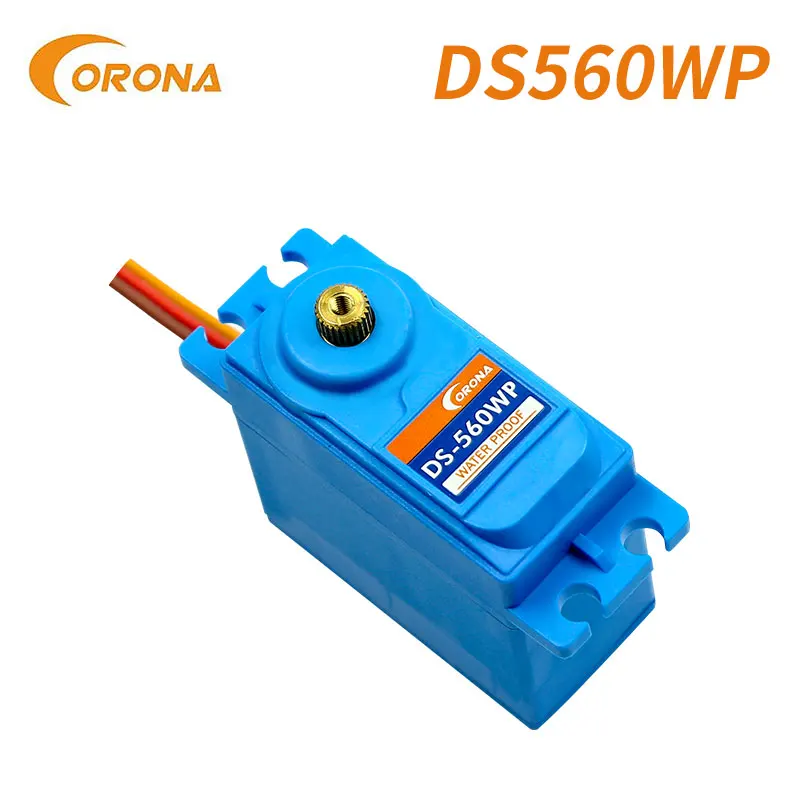

Corona DS560WP 15KG 0.16sec Full waterproof high torque metal gear servo motor for rc servo motor
Login to view prices
| Item No | DS560WP |
| size | 41.8*20*40.8mm(1.65”*0.82”*1.61”) |
| Weight | 63.6g |
| Operating Voltage | 6V/7.4V |
| Operating Current | 300mA / 400mA |
| Operateing speed | 0.18sec.60º / 0.16sec.60º |
| Stall torque | 13kg.cm/15kg.cm |
| Dead band | ≤3uSec |
| Operating speed | 40º/one side pulse traveling |
| Potentiometer | High Precision |
| Ball bearing | MR106/MR126 |
| Gear | Metal |
| Connector wire length | 300mm |
| Operating Temperature Range | -20℃ to +60℃ |
