VIFLY ToothStor – 4 Port 2S Balance Charger with Storage Mode for FPV Drone


Login to view prices

Description

Report Item

Features:

  • 【4 Port 2S Balance Charger with Storage Mode】You can balance charge four 2S batteries at the same time. And they are 4 independent charging channels, not necessary to ensure the batteries are all the same voltage or the same size. In addition to charging the battery to full voltage, you can charge or discharge it to storage voltage for long time storage.
  • 【Colorful LCD Screen, Intuitive Interface】VIFLY ToothStor installs high quality LCD screen, the charging status is displayed clearly and the intuitive interface makes the operation very simple.
  • 【Support XH2.54 and BT3.0 Batteries】VIFLY ToothStor pre-soldered four XH2.54 and BT3.0 connectors, so it can work with any general XT30 2S battery with 3Pin XH2.54 Balance Plug or BetaFPV BT3.0 battery, but don’t put the two batteries in the same port.
  • 【Strong Heat Dissipation Capability】The fan and big heat sink would effectively dissipate the heat to prevent the unit from overheating. This greatly improves the efficiency and speed of the discharging.
  • 【Multiple Power Input】It supports Type-C, XT60 and DC power input. Type-C supports PD3.0 protocol that requests the input power must be higher than 65W.
  • 【Memory Function】VIFLY ToothStor had the memory feature of remembering last time settings, no need to set the charge current every time you turn it on.
  • 【Buzzer Indication】VIFLY ToothStor added the buzzer to beep when one charging circle finished, if you don’t like beeping, you can turn the buzzer off manually.

Specifications:

Dimensions 109*56*30mm
Weight 142g
Input connector XT60, DC(5.5*2.1mm), USB-C(PD3.0)
Input voltage range 10V-26V
Minimum input power 65W
Max charging current 1.5A/port
Support battery connector XH2.54 3Pin & BT3.0
Battery type LiHV / LiPo
Storage voltage 3.80V/Cell & 3.85V/Cell
Max discharge current 0.2A/port
Balance Current 0.2A

4 Port 2S Battery Balance Charger with Storage Mode

You can balance charge four 2S batteries at the same time. And they are four independent charging channels, not necessary to ensure the batteries are all the same voltage or the same size. In addition to charging the battery to full voltage, you can charge or discharge it to storage voltage for long time storage.

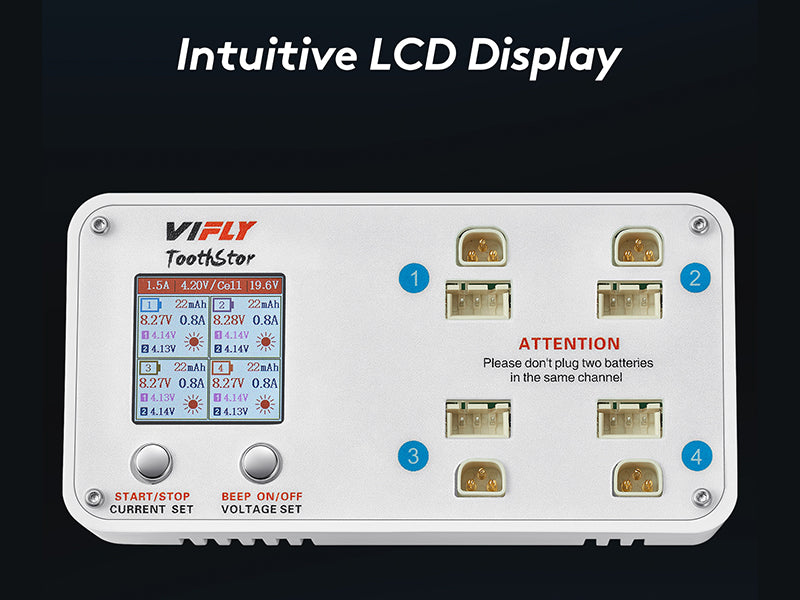

Colorful LCD Screen, Intuitive Interface

VIFLY ToothStor installs high quality LCD screen, the charging status is displayed clearly and the intuitive interface makes the operation very simple.

Support XH2.54 and BT3.0 Batteries

VIFLY ToothStor pre-soldered four XH2.54 and BT3.0 connectors, so it can work with any general XT30 2S battery with XH2.54 Balance Plug or BetaFPV BT3.0 battery, but but don’t put the two batteries in the same port.

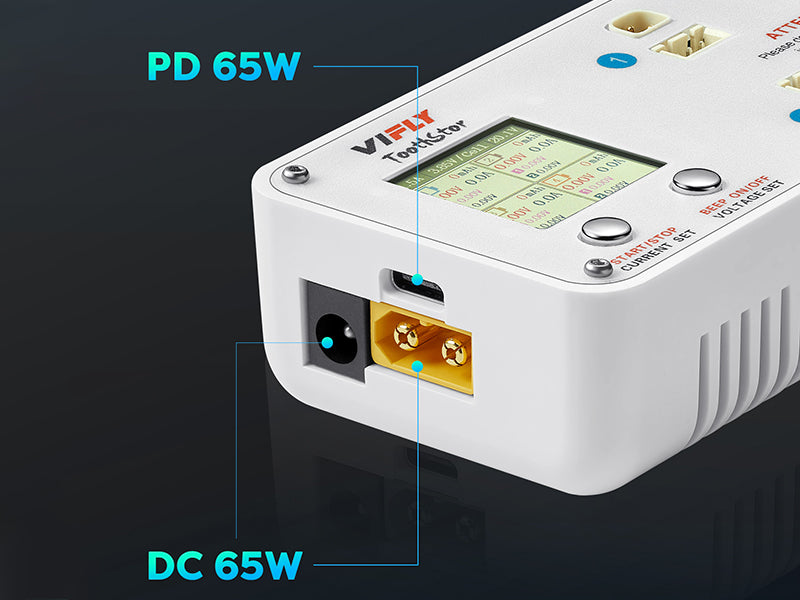

Multiple Power Input

VIFLY ToothStor 2S charger supports Type-C, XT60 and DC power input. Type-C PD3.0 protocol requests the input power must be higher than 65W.

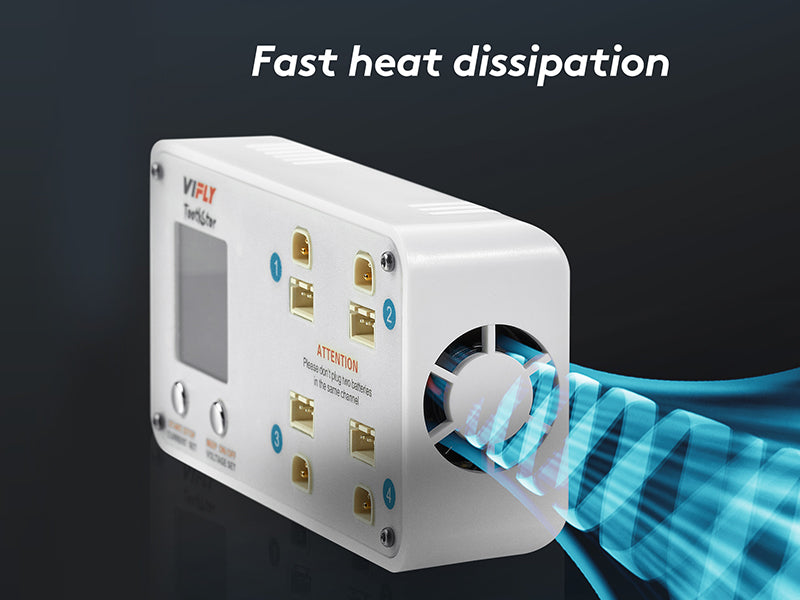

Strong Heat Dissipation Capability

The fan and big heat sink would effectively dissipate the heat to prevent the unit from overheating. This greatly improves the efficiency and speed of the discharging.

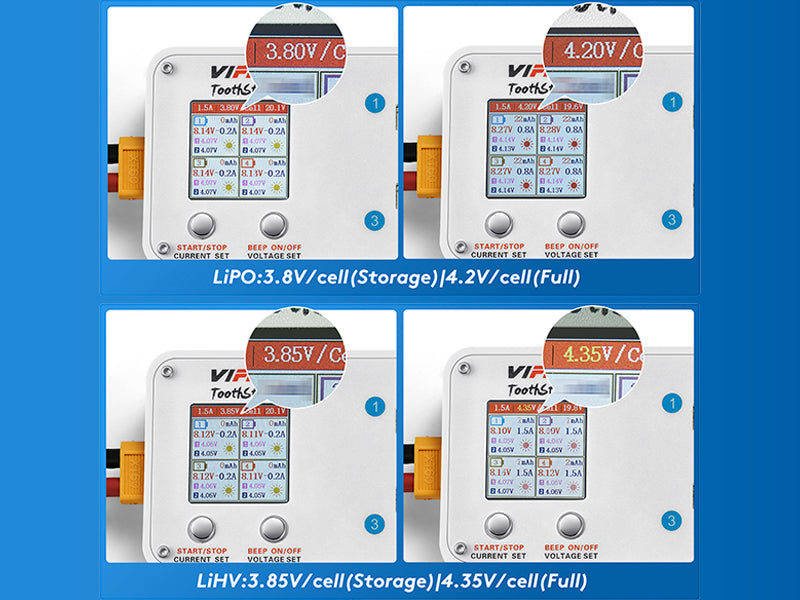

Storage Charger and Discharger

VIFLY ToothStor is a combination of 2S charger and discharger. It has 4 target voltages per cell (3.8V/3.85V/4.2V/4.35V), set your target voltage like 3.8V/cell (LiPo Storage Voltage), it will start the charging or discharging process automatically when the battery is lower or higher than 3.8V.
