Description:Â

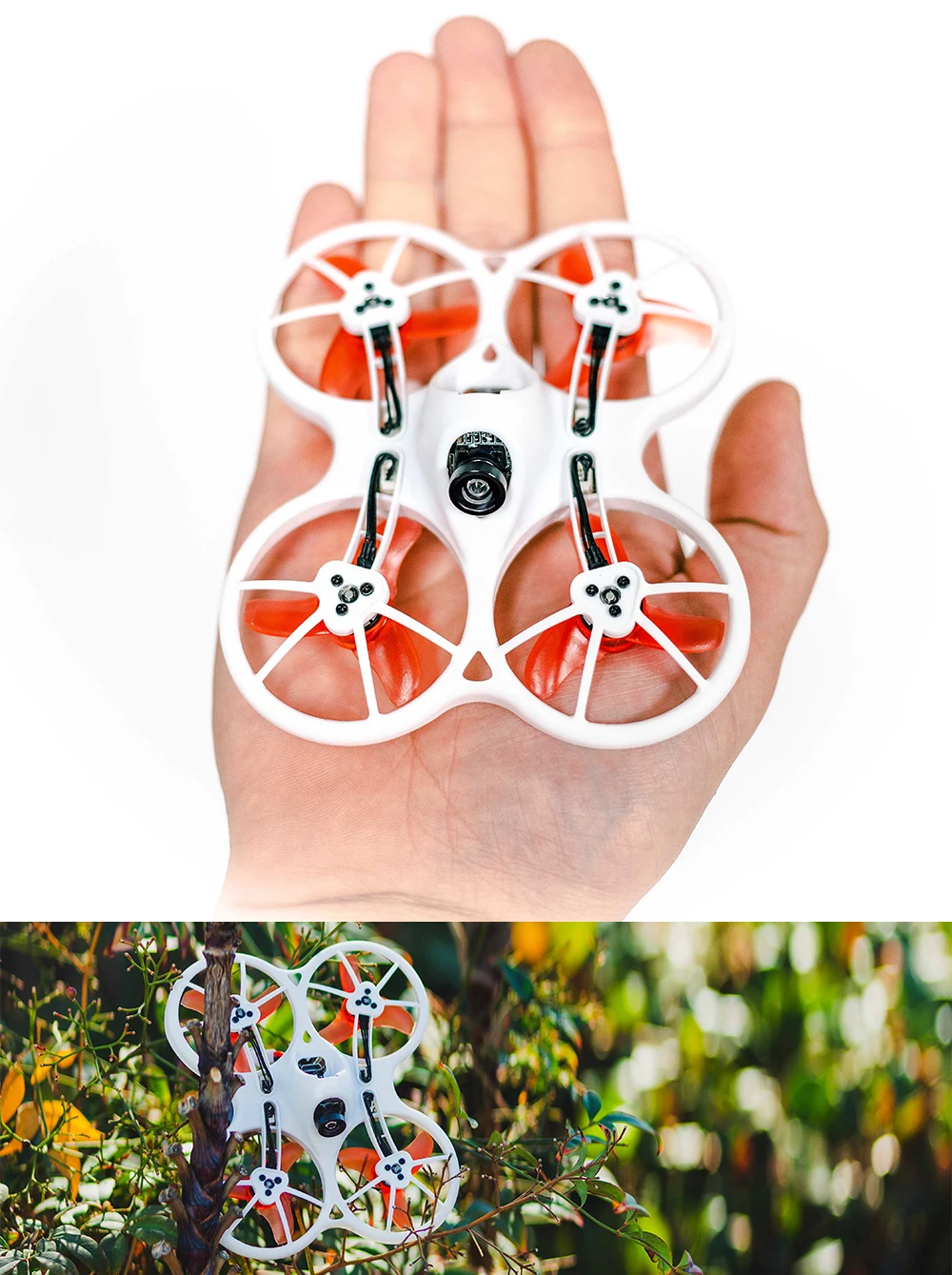

- 75mm Indoor racing drone
- 08025 brushless motor with durable ball bearing for increase flight and low maintenance
- Durable polypropylene plastic frame with propeller guards
- Motor beeper function. Find your tinyhawk after a crash
- Speeds up to 56kph
- Up to 4 minutes flight time on single battery
- Fast F4 Processor for smooth stable flight characteristics
- MPU6000 gyro for vibration free operations
- Unique inverted motor design to keep CG as low as possible to fit in the smallest of spaces
- 25mw VTX and 600tvl Camera included for fun FPV flight via FPV style goggles
- Smart Audio function to change VTX channel via your transmitter
- OSD settings control to customize flight feel
- Pre-tuned from factory with expert pilots and new pilots in mind. 3 rate profile settings for all types of flying feel
- Plug in type motors for easy maintenance
- 1s High Voltage (HV) 450mah lipo included
- 40 Channel goggles for FPV (First Person View) be like a bird, or pilot.
- 6 Channel gamepad size controller. Feel comfortable, like it playing a video game

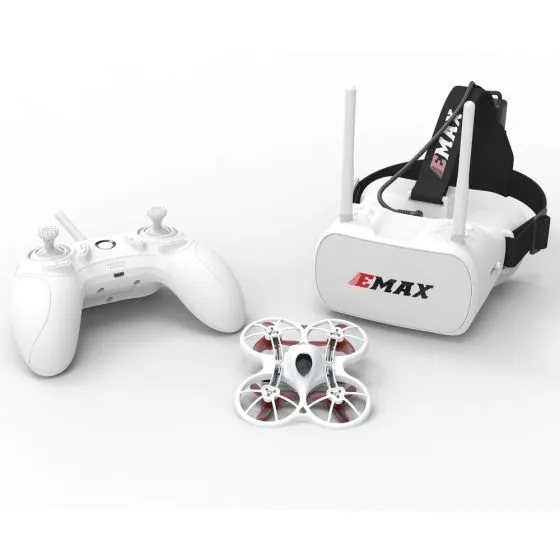

- Everything included in one package, no need for extra to get in the air out of the box.
- Frsky compatible D8 receiver built in to FC

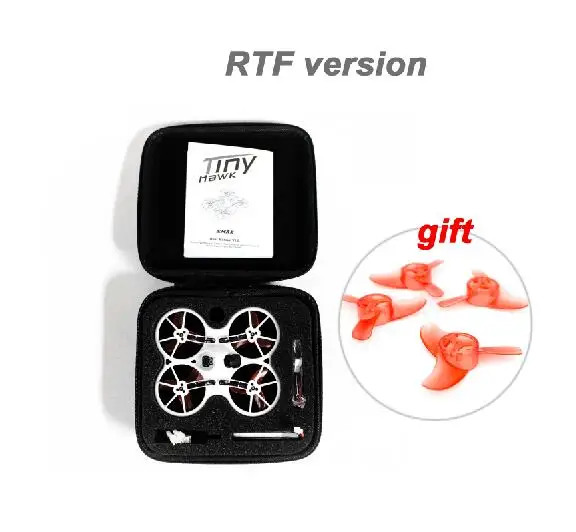

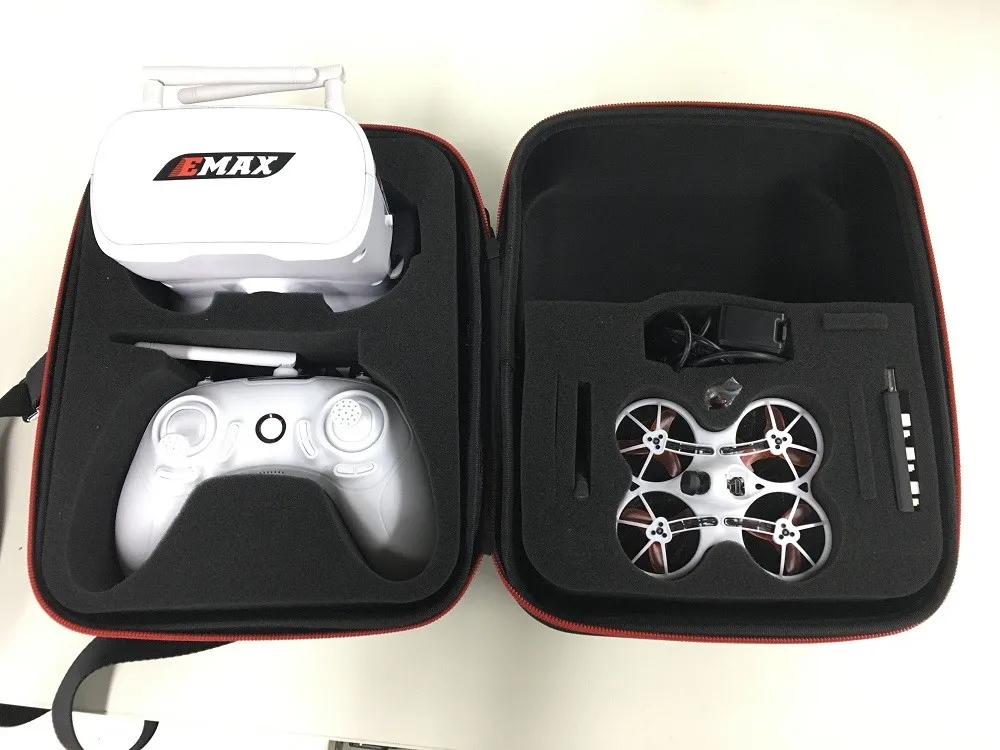

- Custom carbon fiber themed carrying case
Tinyhawk Specifications:
- Size: 75mm motor to motor L 110mm x W 95mm x H 39mm
- Dry Weight: 29g
- All Up Weight: 42g with 450mah 1s Battery
- Frame Material: Polypropylene

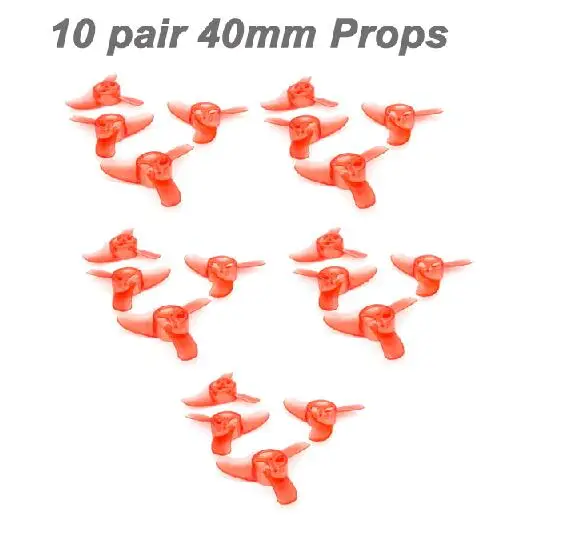

- Propeller Properties:
- Diameter: 40mm
- Blades: 3
- Pitch: 23mm
- Weight: 0.5 g
- Motor Properties;
- Stator: 8mm x 2.5mm (08025)
- Kv: 15000kv
- Weight: 2.5g
- Bearing Size: Φ1.5*Φ4*2mm
- Shaft Diameter:  Φ1.5mm
- Propeller Mount: Press Fit Over Bell

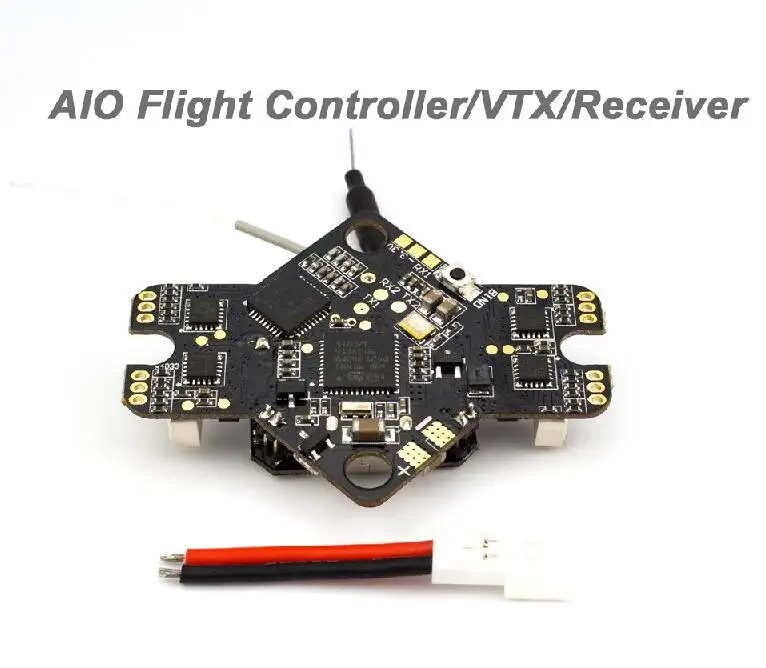

- Main PCB:
- Flight Controller: F4(MATEKF411 firmware)
- ESCs: 4in1 3A
- Receiver: EMAX Tiny receiver (Compatible with Frsky D8 mode)
- Battery Connector: JST-PH2
- Camera and VTX:
- VTX Power: 25mw
- Channels: 37CH
- Camera Properties: 600TVL CMOS
- Smart Audio

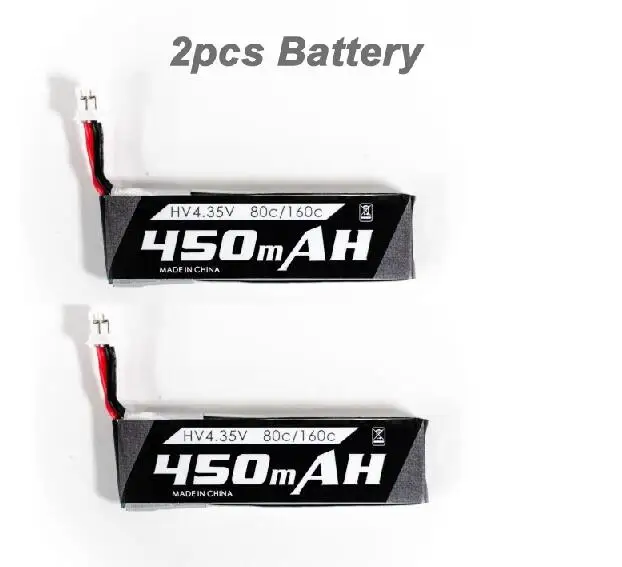

- Battery:
- Voltage: 1s 4.35v HV
- Capacity: 450 mAh
- Discharge rating: 80c/160c
EMAX Transporter Goggles Specifications:
- Maximum appearance size 140×153×90(mm)
- Weight (without battery) 398g
- Resolution 480×272
- Battery 1 cell 18650 lipo battery
EMAX E6 Transmitter Specifications:
- Maximum appearance size 181×213×80(mm)
- Weight (without battery) 211g
- Number of channels 6 Channels
- Transmission frequency 2.4GHz ISM Band(2400MHz~2483.5MHz)
- Output Power 22dbm
- Modulation GFSK
- Battery 1 cell 18650 lipo battery
