Surpass Hobby Rocket 540 V3 Sensored Brushless Motor Waterproof 3.5T 10.5T 25.5T 21.5T 13.5T for 1/10 1/12 RC Car Drift Truck


Login to view prices

CNCMachined Billet T6 Aluminum Heatsink Can

High Purity Copper Windings Maximizes Conductivity

High Power Solder Tabs

Removable/ Replaceable Rotor

Powerful Sintered Neodymium Magnet

Precision Engineered for Maximum Energy Conversion

Adjustable Timing

Compatible with any Sensored/ Sensorless ESC

Dual sensor port
BRCA& EFRA approved, Meets ROAR&IFMAR  specifications

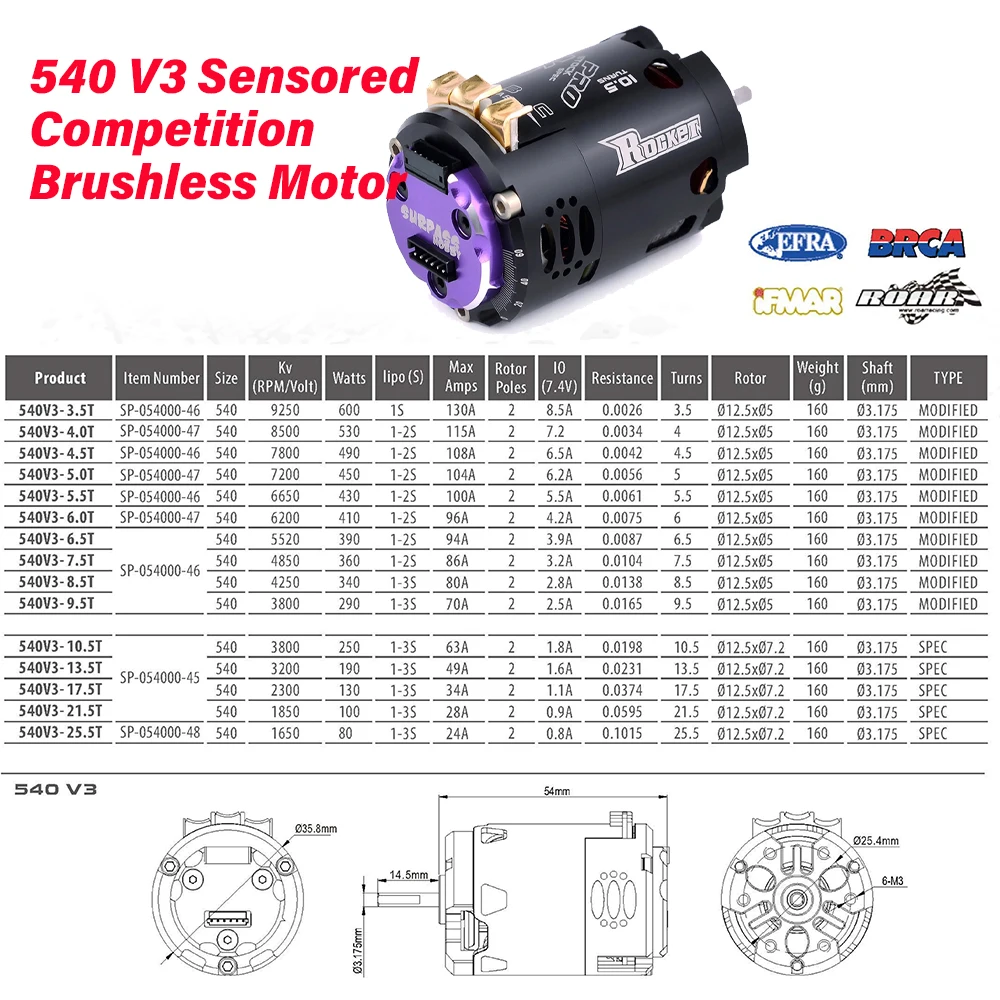

TYPE:MODIFIED
Rotor:12.5*5
Rotor Poles:2
Lipo:1-2S
Size:540
Shaft:3.175mm
Product:3.5T/4.0T/4.5T/5.0T/5.5T/6.0T/6.5T/7.5T/8.5T/9.5T540V3-3.5T  MODIFIED
KV(RPM/Volt):9250
Watts:600
Lipo(S):1S
Max Amps:130A
Rotor Poles:2
IO(7.4V):8.5A
Resistance:0.0026
Turns:3.5
Rotor: Φ 12.5* Φ 5
Weight(g):160
Shaft(mm): Φ 3.175540V3-4.0T  MODIFIED
KV(RPM/Volt):8500
Watts:530
Lipo(S):1-2S
Max Amps:115A
Rotor Poles:2
IO(7.4V):7.2A
Resistance:0.0034
Turns:4
Rotor: Φ 12.5* Φ 5
Weight(g):160
Shaft(mm): Φ 3.175540V3-4.5T  MODIFIED
KV(RPM/Volt):7800
Watts:490
Lipo(S):1-2S
Max Amps:108A
Rotor Poles:2
IO(7.4V):6.5A
Resistance:0.0042
Turns:4.5
Rotor: Φ 12.5* Φ 5
Weight(g):160
Shaft(mm): Φ 3.175540V3-5.0T  MODIFIED
KV(RPM/Volt):7200
Watts:450
Lipo(S):1-2S
Max Amps:104A
Rotor Poles:2
IO(7.4V):6.2A
Resistance:0.0056
Turns:5.0
Rotor: Φ 12.5* Φ 5
Weight(g):160
Shaft(mm): Φ 3.175540V3-5.5T  MODIFIED
KV(RPM/Volt):6650
Watts:430
Lipo(S):1-2S
Max Amps:100A
Rotor Poles:2
IO(7.4V):5.5A
Resistance:0.0061
Turns:5.5
Rotor: Φ 12.5* Φ 5
Weight(g):160
Shaft(mm): Φ 3.175

540V3-6.0T  MODIFIED
KV(RPM/Volt):6200
Watts:410
Lipo(S):1-2S
Max Amps:96A
Rotor Poles:2
IO(7.4V):6.2A
Resistance:0.0075
Turns:6.0
Rotor: Φ 12.5* Φ 5
Weight(g):160
Shaft(mm): Φ 3.175

540V3-6.5T  MODIFIED
KV(RPM/Volt):5520
Watts:390
Lipo(S):1-2S
Max Amps:94A
Rotor Poles:2
IO(7.4V):3.9A
Resistance:0.0087
Turns:6.5
Rotor: Φ 12.5* Φ 5
Weight(g):160
Shaft(mm): Φ 3.175

540V3-7.5T  MODIFIED
KV(RPM/Volt):4850
Watts:360
Lipo(S):1-2S
Max Amps:86A
Rotor Poles:2
IO(7.4V):3.2A
Resistance:0.0104
Turns:7.5
Rotor: Φ 12.5* Φ 5
Weight(g):160
Shaft(mm): Φ 3.175

540V3-8.5T  MODIFIED
KV(RPM/Volt):4250
Watts:340
Lipo(S):1-3S
Max Amps:80A
Rotor Poles:2
IO(7.4V):2.8A
Resistance:0.0138
Turns:8.5
Rotor: Φ 12.5* Φ 5
Weight(g):160
Shaft(mm): Φ 3.175

540V3-9.5T  MODIFIED
KV(RPM/Volt):3800
Watts:290
Lipo(S):1-3S
Max Amps:70A
Rotor Poles:2
IO(7.4V):2.5A
Resistance:0.0165
Turns:9.5
Rotor: Φ 12.5* Φ 5
Weight(g):160
Shaft(mm): Φ 3.175

TYPE:SPEC
Rotor:12.5*7.2
Rotor Poles:2
Lipo:1-3S
Size:540
Shaft:3.175mm
Product:10.5T/13.5T/17.5T/21.5T/25.5T

540V3-10.5T  SPEC
KV(RPM/Volt):3800
Watts:250
Lipo(S):1-3S
Max Amps:63A
Rotor Poles:2
IO(7.4V):1.8A
Resistance:0.0198
Turns:10.5
Rotor: Φ 12.5* Φ 7.2
Weight(g):160
Shaft(mm): Φ 3.175

540V3-13.5T  SPEC
KV(RPM/Volt):3200
Watts:190
Lipo(S):1-3S
Max Amps:49A
Rotor Poles:2
IO(7.4V):1.6A
Resistance:0.0231
Turns:13.5
Rotor: Φ 12.5* Φ 7.2
Weight(g):160
Shaft(mm): Φ 3.175

540V3-17.5T  SPEC
KV(RPM/Volt):2300
Watts:130
Lipo(S):1-3S
Max Amps:34A
Rotor Poles:2
IO(7.4V):1.1A
Resistance:0.0374
Turns:17.5
Rotor: Φ 12.5* Φ 7.2
Weight(g):160
Shaft(mm): Φ 3.175

540V3-21.5T  SPEC
KV(RPM/Volt):1850
Watts:100
Lipo(S):1-3S
Max Amps:28A
Rotor Poles:2
IO(7.4V):0.9A
Resistance:0.0595
Turns:21.5
Rotor: Φ 12.5* Φ 7.2
Weight(g):160
Shaft(mm): Φ 3.175

540V3-25.5T  SPEC
KV(RPM/Volt):1650
Watts:80
Lipo(S):1-3S
Max Amps:24A
Rotor Poles:2
IO(7.4V):0.8A
Resistance:0.1015
Turns:25.5
Rotor: Φ 12.5* Φ 7.2
Weight(g):160
Shaft(mm): Φ 3.175

30mm for motor

Item type: Cooling Fan For Sendorless/Sensored Motor,
Material: Metal
Optional color: Red/Gold/Orange
Size: 30 * 30 * 10mm
Weight: approx 18g
Max Voltage: 8.5V
Max. RPM: 28000
Package List:
1 * Rocket 540 V3 Sensored Brushless Motor
1 * 30mm fan
1 * Sensored line
