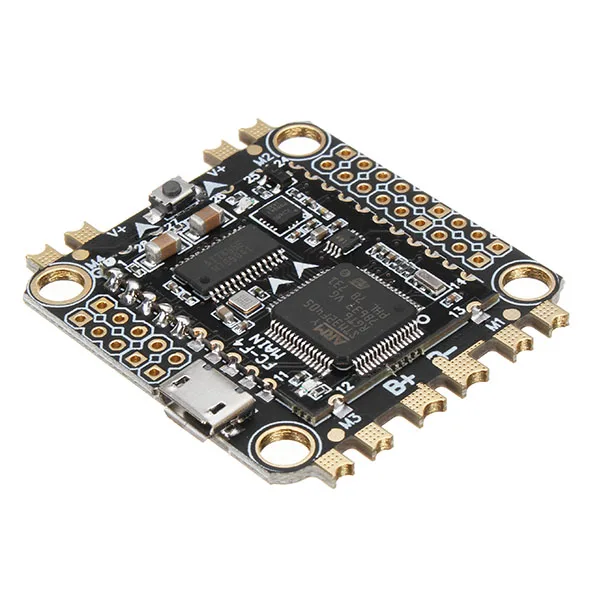

STM32F405 Omnibus F4 PDB Flight Controller AIO OSD 5V BEC Current Sensor for RC FPV Racing Drone 30.5×30.5mm

$30.99

Out of stock

SKU: BS032-036 Categories: ,

Description

30.5×30.5mm Omnibus F4 Flight Controller AIO OSD 5V BEC and Current Sensor

Specification:
Item Name: Omnibus F4 FC AIO OSD BEC and Current Sensor
Mounting Hole: 30.5×30.5mm
MCU: STM32F405 ,  CRT6, 8K
Sensor:MPU6000
Input Voltage: 2-6S Lipo
– BEC Output: 5V 3A
– Integrated with OSD, support BF Ground Station adjust OSD
– Built-in Current Sensot, can monitor current
Fimware: betaflihgt_3.2.0_OMNIBUSF4SD
Receiver: Support PPM, SBUS, IBUS, DSM2/ DSMX Receiver
Size: 42x36mm
Weight: 9g

Features:
– STM32F405 CRT6, refresh rate up to 8K

– PCB 3OZ copper enhance current stability and cooling fast
– 5V 3A BEC output

– Exposed pad for easy soldering

– Integrated OSD,  no need to flash firmware additionally,debug OSD via BF ground station.
– Integrated current meter to monitor the real-time power consumption
– Adjust the PID by OSD via remote control
– Adjust the VTX via open ports such as power, frequency band, frequency point (Note: The VTX should have this function like TBS one and the upcoming – DYS VTX.)

– With 4 damping balls reduce the vibration to make it fly stably.

Instruction for diagram pciture:
1.  M1-M4 :  ESC Power Cable
2.  V+ & V-:  ESC’s “+” & “-“
3. BOOT  button: to flash firmware
4. +5V: output 3A, can connect VTX, Camera and receiver
5. RX6 (S): Connect SBUS Receiver
6. RX1 (D): Connect DSM2/DSMX/IBUS Receiver
7. PPM: Connect PPM Receiver
8. RX3 , TX3: Series UART 3
9. Buz+ & Buz- : Possitive Buzzer “+” and “-“

Package Included:
1x Omnibus F4 Flight Controller

4x Anti-vibration Rubber Shock Balls



H2b99a797379749f4a9f33d6dbcd0c7a6rHTB1kbigh_qWBKNjSZFAq6ynSpXaEHc35654c827974050a36b9584730ac014AH2ffb735502964807aca6c917912c3cddwHf9b99e69d2be4f07bf1a55240e5ac899bH9a63c4af41e74f94985559a286d82d4c5H4300a2a86d21495abc22521ef2153311XHb060ff2148c84e26ad3966f04716cf34CHbcafea7f2faa4350b99ccb16ee26b053Y

Additional information

Weight 0.015 kg
