High-performance flight control supports up to eight motor outputs, making it easy to build X8 drones.

In addition, it also integrates 5V/10V dual BEC, 10VBEC can be controlled by USER1 switch can provide independent power for VTX, to ensure stable operation, when commissioning the aircraft can be remotely turned off the 10V power supply of VTX, there is no need to use fans to reduce the temperature of VTX.

The flight control has 4 LED status indicators, which show the working status under different states.

Others such as the F722 main control chip, on-board OSD chip, barometer and on-board black box chip are also available.

With large pads, the pads are far away from the components to ensure perfect welding for novices.

Electrical modulation using imported Toshiba MOS tube, high-performance processor and on-board TVS protection tube to ensure maximum performance in complex flight environments, and through multiple layers of testing!

Support Bluejay firmware, bidirectional DSHOT, RPM filtering enabled

●Master control: STM32F722RET6

● Gyroscope: ICM42688P

● Barometer: Support (DPS310)

●OSD: Support (AT7456E)

●BEC: 10V/2A, 5V/2A

●UART port: 6

● Black box: on-board (16M flash)

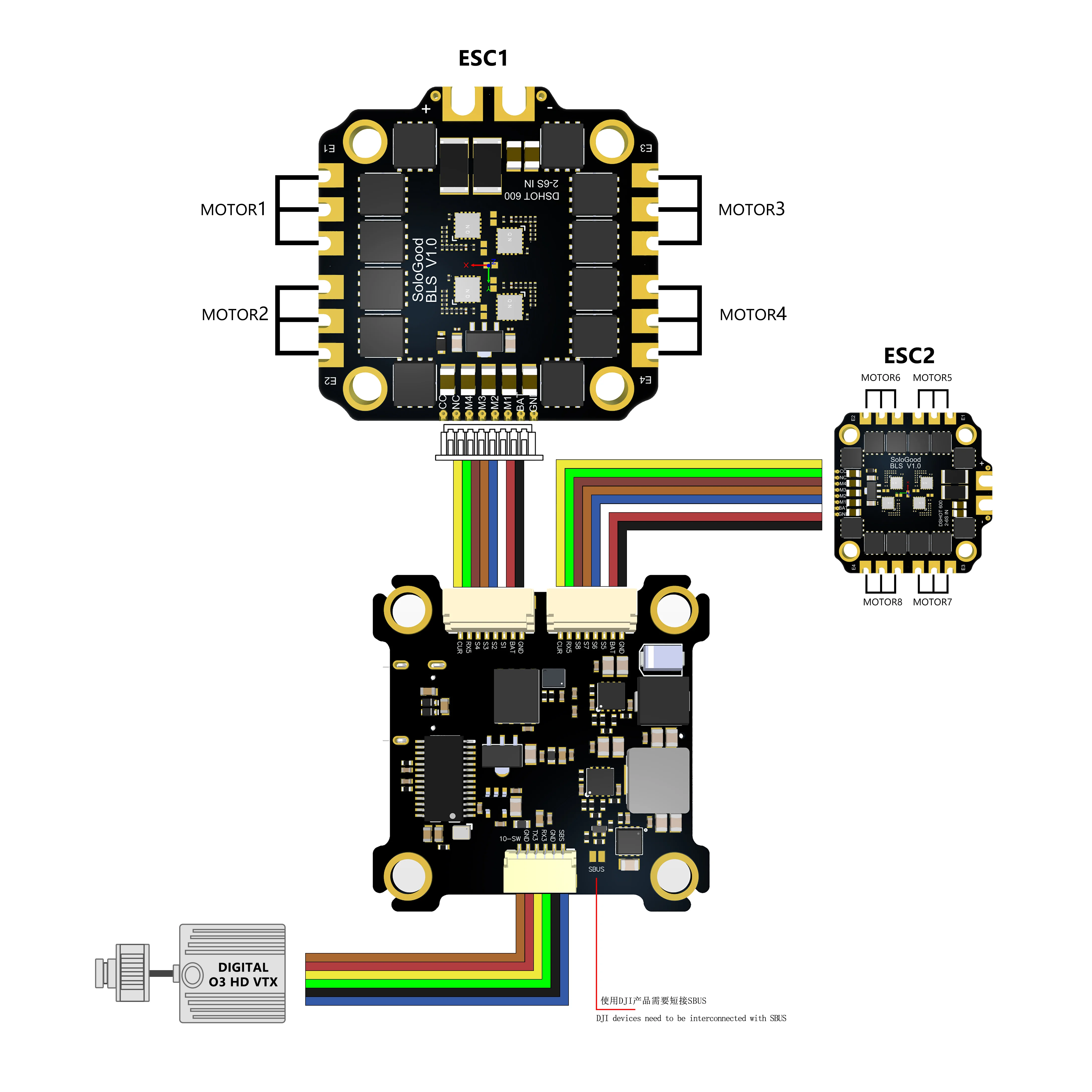

● Number of motors supported: M1-M8

● Firmware name: BETAFLIGHT:SOLOGOODF722

● Input voltage: 3-6S lithium battery (11-30V MAX)

● Output voltage: VBAT

● Mounting hole: 30.5×30.5mm (4mm aperture)

● Flight control size: 38.5×38.5mm

● Weight: 8.1g

LED status: blue: gyroscope status, green: 3V3 indication, red: 5Vbec indication, white: 10Vbec indication

●DJI/Vista: Support /6pin

Electric control

●TVS protective diode: Yes

● External capacitor: 1000uF high frequency low resistance capacitor (included in the package)

●ESC/ Motor protocol: DSHOT300/600

● Continuous current: 50A

● Maximum current: 55A

Mounting hole: 30.5×30.5mm (4mm aperture)

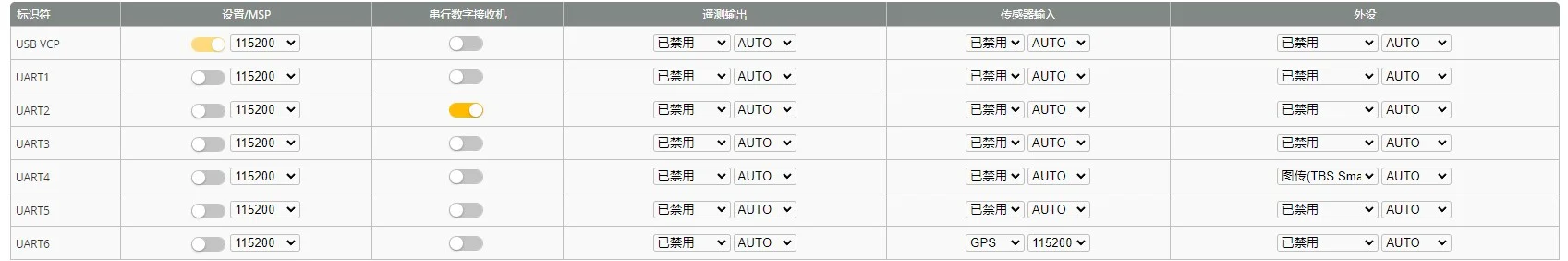

How do I set up Betaflight

BETAFLIGHT default firmware 4.3.2

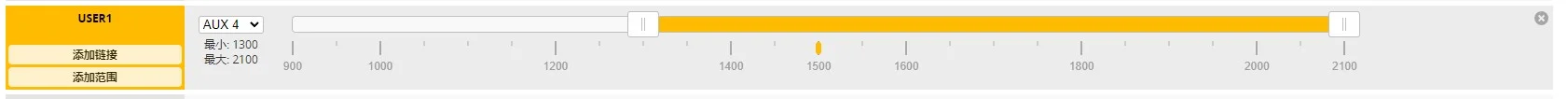

10-SW is a 10V power supply that can be set with USER1

After brushing the Bluejay firmware, you can turn on bidirectional DSHOT, then turn on the RPM filter default BLHeli_S firmware

Flight control knowledge explanation

1. What is flight control?

Flight control is the full name of the flight controller, to put it bluntly, just like the human brain, controlling the human body to complete various actions. Flight control is the control of the aircraft

Operation of all equipment. For example, the motor, through the flight control output signal to control the speed. Or the various sensors on flight control,

Precise control of the aircraft’s flying attitude.

2. How to choose the right flight control?

Even though the F7 is the latest, the F4 is still the most popular in the market. Whether from flight control adaptation or cost performance

Above, F4 still has an advantage. For beginners, it is recommended to buy F4 directly.

When selecting the flight control, pay attention to whether the mounting holes of the rack and the mounting holes of the flight control match, and note

It means that if you choose a flying K control or a flying tower with a one-body electric regulator (tower shaped multi-layer flight K control with 2-layer tower charged and 3-layer tower charged and harmonized)

When passing through the electromechanical machine, pay attention to the size of the current, to choose the electric regulation that matches the motor current. Electric control avoidance

The current is too low to burn out the thermostat. At present, the technology of flight K control is very mature, just take out a flight control in the default parameter

Almost all can fly very smoothly, so beginners] do not need to be too expensive too high-end flying K-control, us

Only need to choose a more cost-effective flight control can be.

3. How many channels are there for flight control?

The output channel of flight control, that is, the channel of flight control connecting to electrical regulation or steering gear. The input channel is not very open

The difference of the way is generally the difference between the types of flight control modes, and the remote control has enough switches to switch these modes

. If the channel of the remote control is not enough, also set the mode to use in a switch combination or discard one – some uncommon

The pattern used.

4. Which flight control rocker can be automatically levelled back?

Flight control with self-stabilizing function can be realized, simple Ledi Byme-a-d flight control, df flight control. high-grade

pix, Sinan, arkbird.

5. What kind of flight control is suitable for canard wings?

Most of the canards are controlled by delta wing mixed control, which is supported by flight control. Just can’t

Separate fix for canard wings. The flight control can be set to = angular wing mode, and the canard wing can be manually controlled separately

Make. In autonomous control modes, such as self-stabilizing mode or cruise mode, the canards remain level and do not move.

Some flight control with a gyroscope, what is a gyroscope, what is the specific role?

A gyroscope is one or that uses the moment-sensitive shell of a high-speed rotating body relative to the inertia space to be orthogonal to the rotation axis

Angular motion detection device for two axes. The angular motion detection device made of other principles has the same function

It’s called a gyroscope.

When the motion of a gyroscope is analyzed from the mechanical point of view, it can be regarded as a rigid body, and there is one on the rigid body

A universal fulcrum, and the gyroscope can rotate around this fulcrum for three degrees of freedom, so the motion of the gyroscope is

The rotational motion of a rigid body around a fixed point. More specifically, a flywheel that spins at high speed around an axis of symmetry

The child is called a top. The gyroscope is mounted on the frame device so that the spin axis of the gyroscope has the freedom of angular rotation

The whole apparatus is called a gyroscope.

6. What are the flight controls of fixed wings that can fly far away?

As long as it is with gps can automatically return, can support fixed wing flight control can be used, Ledi pix and mini pix as well as arkbird, Sparrow, Sinan, DF-F1, DF-H1 are OK
