Skystars ExpressLRS ELRS Diversity Duble Antenna Diversity Receiver for ExpressLRS Low Latency High Refresh for FPV drone


Login to view prices

This product is currently out of stock and unavailable.

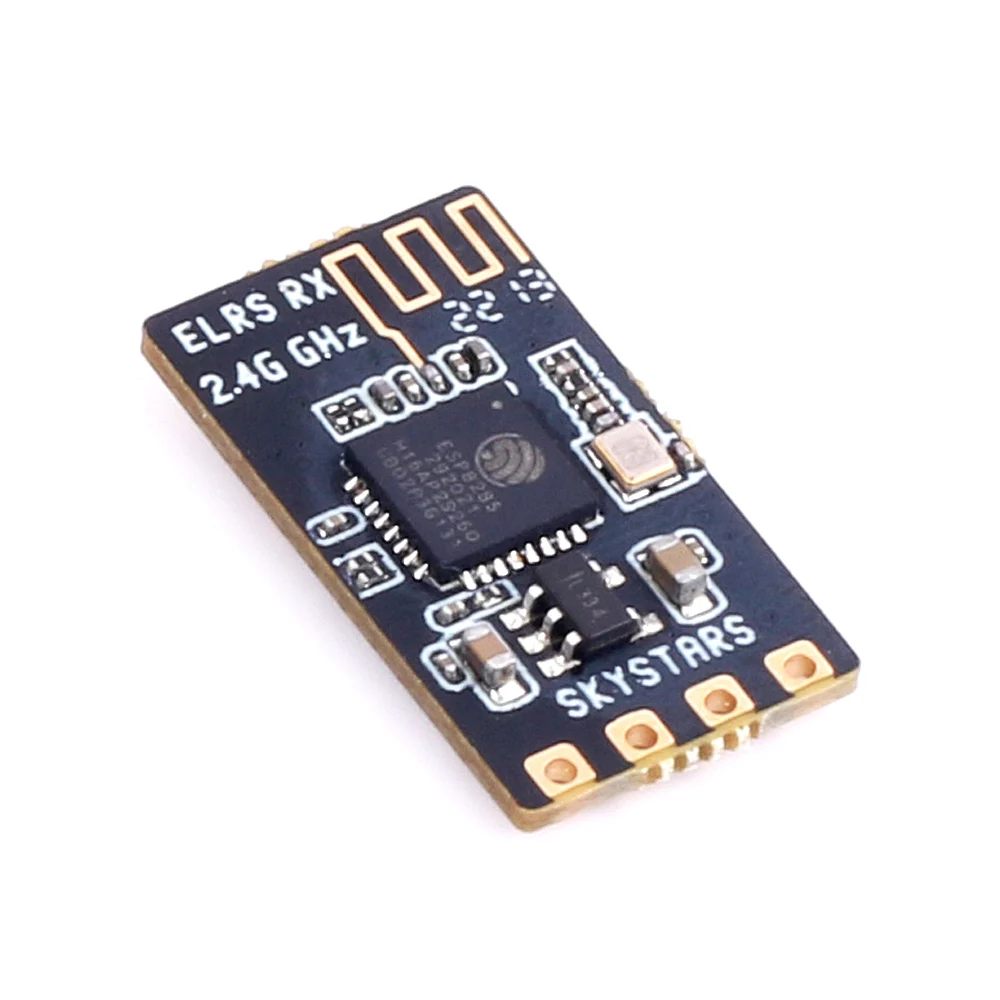

0.8g Skystars Supreme 2.4GHz 200mw Telemetry with Dual Antenna Diversity Receiver for ExpressLRS 100% ELRS Devs Approved Low Latency High Refresh Rate for Freestyle Racing Longrange FPV Drones



Special thanks to Jye Smith, Alessandro, Wezley Varty, Peho, Deadbyte and Just Hack It for their collaboration

SKYSTARS Dual Nano receiver is based on the ExpressLRS project, an open-source RC link for RC applications. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. This makes ExpressLRS one of the fastest RC links available while still offering long-range performance.

Parameters:

ELRS Developers Approved

ELRS 2.4GHz

MCU: ESP8285

RF: SX1280

PA/LNA: SE2431L

Antenna connector: IPEX 1

RF Frequency: 2.4GHz (2400~2480MHz) Telemetry power: 250mw (~23dbm)

SE2431L RX_Gain: 12.5dB

Diversity: Antenna Switching Default: ANT2

Receiver protocol: CRSF

Input voltage: 4.5~5V DC @ 5V pad Power dissipation: 40~45mA (Before Bind), 70~75mA(Binding), 90~95mA(Wifi Mode) PCB size: 20mm x 11mm

Weight: 0.8g without antennas

Packing: 1x Skystars Supreme 2.4GHz, 2x T Antennas

Firmware: Skystars SS4D_2400_RX

Firmware update via UART or WIFI

SS4D_2400_RX: Enable “USE_DIVERSITY” ( Checked ) when flashing in ExpressLRS configurator
