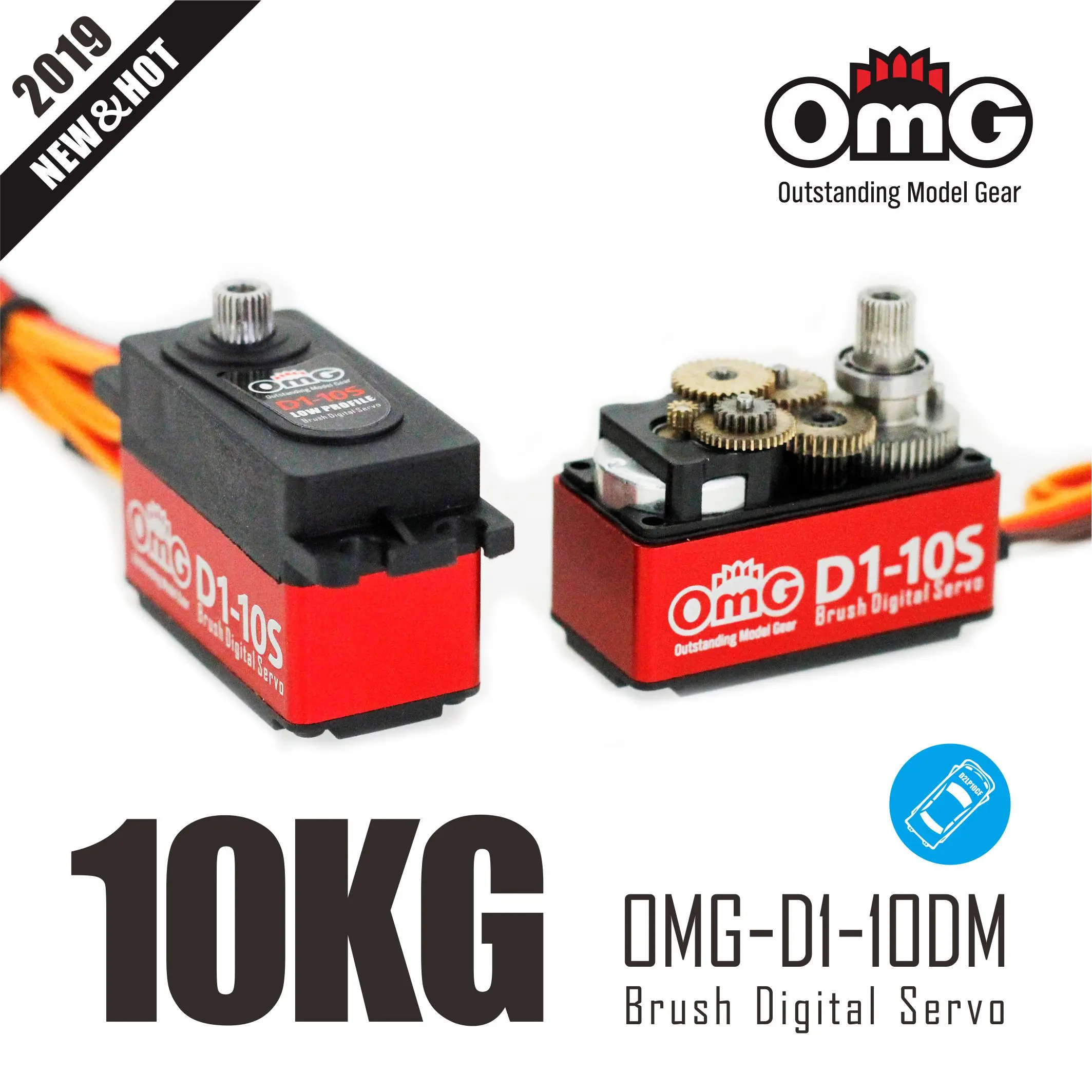

Special design for 1:10 RC car, low profile, aluminium brushed low voltage servo, middle cover in metal, top & bottom cover in plastic, metal gear. Entry level Servo.
Specifications:

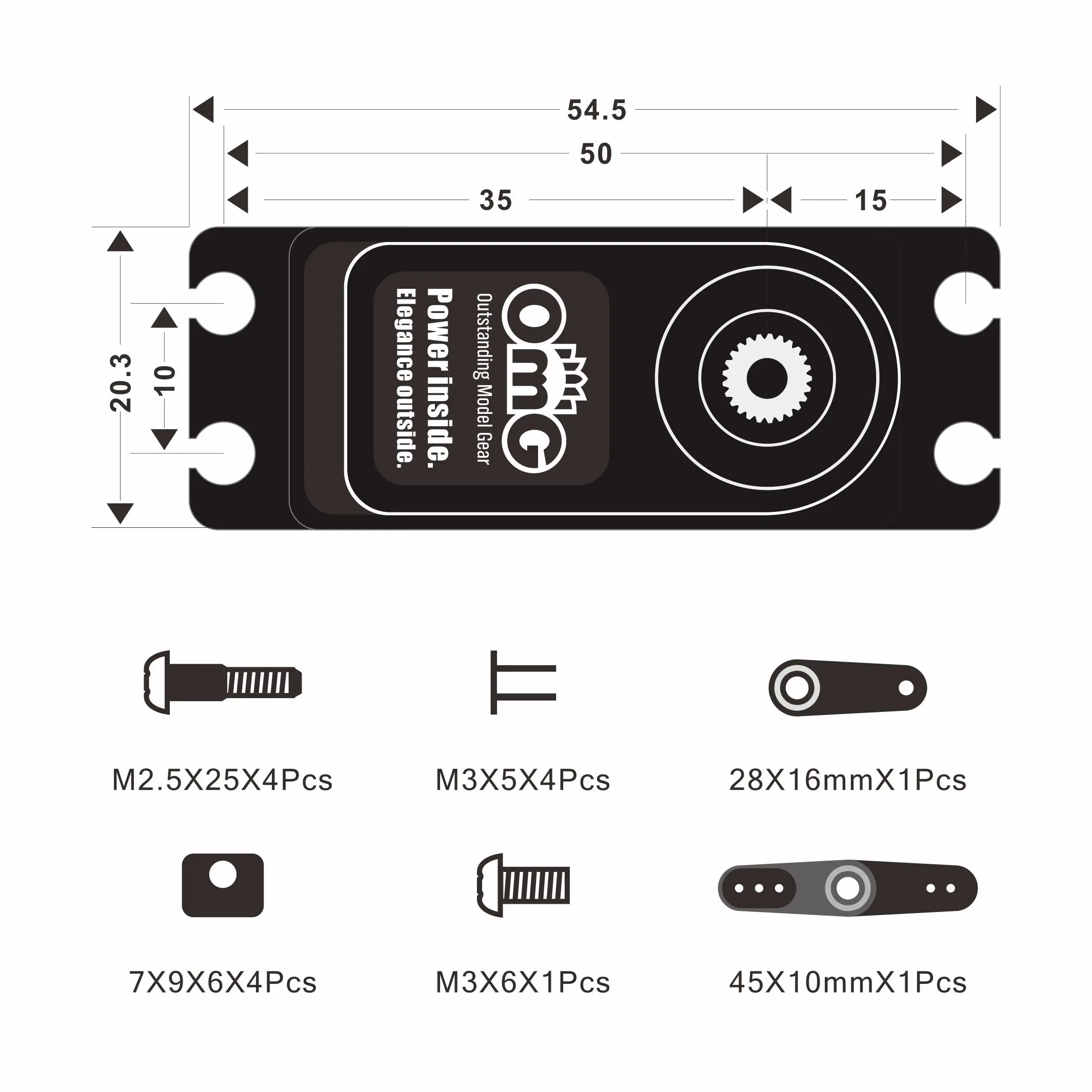

Model: OMG-D1-10DM Appearance: China Aluminum Gear: Copper teeth Motor: Brushed motor Circuit board: brushed numbers Waterproof: splash-proof Working voltage: 4.8-8.4V The fastest speed: 7.4V-0.095sec/60° 8.4V-0.085sec/60° Locked-rotor torque: 7.4V-11.5kgf.cm 8.4V-12.5kgf.cm Output gear: 25T Product size: 40x20x29mm Product weight: 35g Operating stroke: 180±10°(500-2500μsec) Rotation direction: 180°(1000-2000μsec) Angle limit: 220 Neutral point: 1520μsec Maximum stroke: ≈180°(500-2500μsec) Pulse width range: 500-2500μsec Death drive pulse width: 2μsec Wire length: JR350 mm Wire model: #22PVC
![](https://ae01.alicdn.com/kf/Hfcf8b3bc1b7b4932999e61e149c92642V.jpg)
![](https://ae01.alicdn.com/kf/H2349dfe67ed14f04bd5a2a0f4cb77e82t.jpg)
![](https://ae01.alicdn.com/kf/He41fbe4d88a24e3d8578f125318ffbc2F.jpg)
There are no reviews yet.
