Matek PM12S-3 POWER MODULE 9V to 55V independent Step-Down Voltage Regulators for RC Model Airplane Helicopter FPV Racing Drone

$39.99

SKU: BS040-310 Categories: ,

Description

MATEK PM12S-3 Power Module 3-12S LIPO 5V 9V VX BEC with HeatSink 61X40X15mm for RC Multirotor Fixed-Wing Airplane FPV Cinelifter

  • Wide 9V to 55V Operating Input Range with TVS protection
  • 3x independent Step-Down Voltage Regulators
  • BEC Vx,  5.2V / 6V / 8V output options.  supports typical continuous output current of up to 15A, Peak current of up to 25A.
  • BEC 5V (Fixed), 4A continuous
  • BEC 12V (Fixed), 4A continuous
  • 1K:20K voltage divider built-in (Volt = 1/21 Input voltage)
  • Current sensor signal passthrough pad
  • Size & Weight: 61x40x15mm, 53g

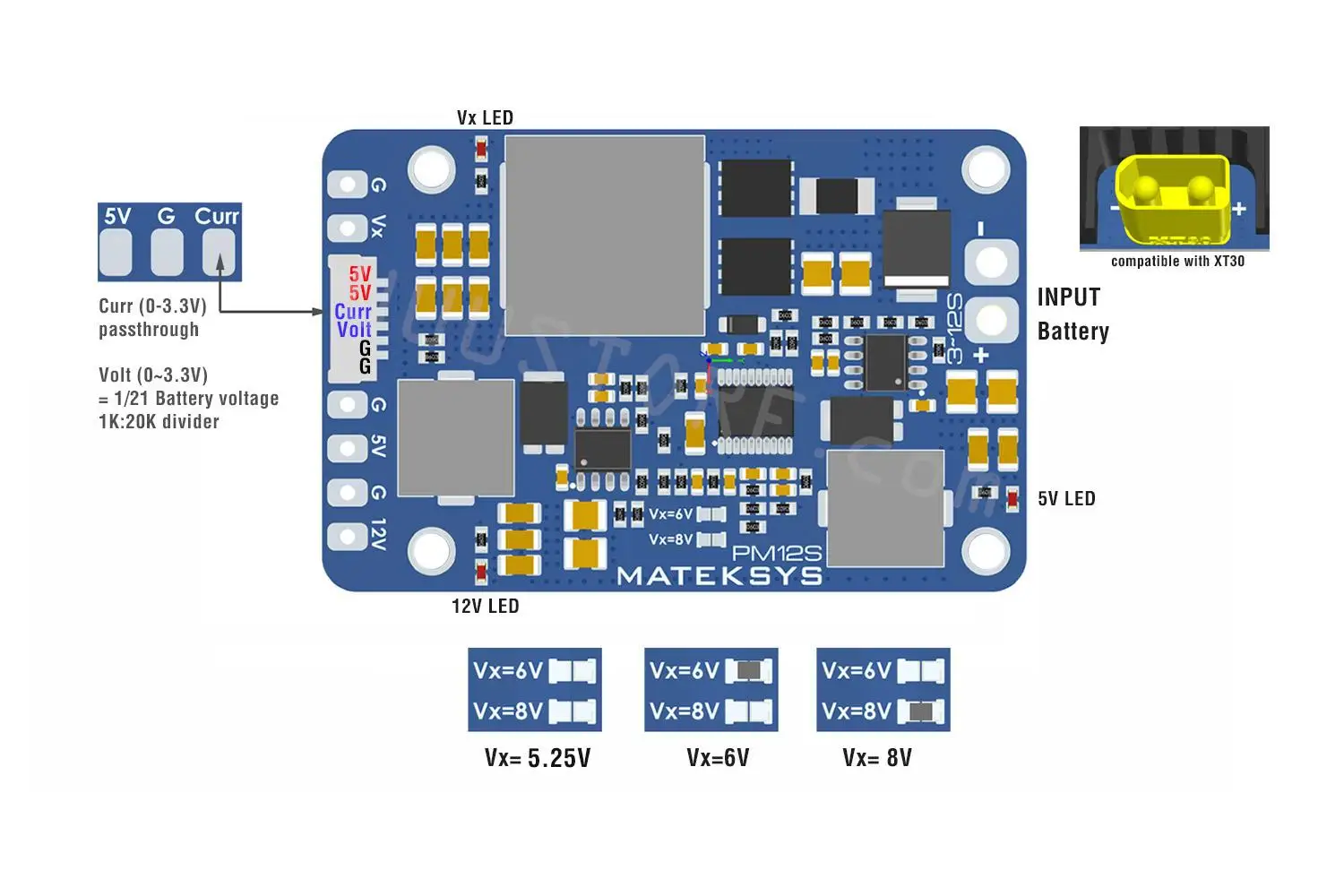

BEC Vx

  • Output voltage 5.25V / 6V / 8V options.
  • Output voltage tolerance 1.5%
  • Synchronous switching step-down (or buck) regulator with typical efficiencies of 90% to 96%
  • Supports typical continuous output current of up to 15A,  Peak current of up to 25A.
  • Output ripple  32mV (VIN=50V,  Output 5.25V @ 15A),  43mV (VIN=50V,  Output @ 5A)
  • Standby current: 10~20mA
  • Reverse Input voltage protection: No
  • Thermal Shutdown
  • Output Short-circuit tolerant (2 seconds)
  • Overcurrent protection & self-recovery
  • Tip: Input voltage >= 15V is required for continuous output current of 15A

BEC 5V

  • Output voltage 5.2V, tolerance 1.5%
  • Supports continuous output current of up to 4A,  Peak current of 6A
  • Output ripple  20mV (VIN=24V,  Output @ 5A),  50mV (VIN=50V,  Output @ 5A)
  • Reverse Input voltage protection: No
  • Thermal Shutdown
  • Output Short-circuit tolerant (2 seconds)
  • Overcurrent protection & self-recovery

BEC 12V

  • Output voltage 12V, tolerance 1.5%
  • Supports continuous output current of up to 4A,  Peak current of 6A
  • Output ripple  18mV (VIN=24V,  Output @ 5A),  32mV (VIN=50V,  Output @ 5A)
  • Reverse Input voltage protection: No
  • Thermal Shutdown
  • Output Short-circuit tolerant (2 seconds)
  • Overcurrent protection & self-recovery
  • Tip: Input voltage >= 13V is required for stable 12V output

Packing

  • 1x PM12S-3
  • 1x Low ESR capacitor ZLJ 63v 390uf
  • Tips: If the input voltage is noisy, capacitor is required to be soldered to the input pads

Additional information

Weight 0.05 kg
