LHCXRC CLOUD 160/225 160mm 225mm Wheelbase 3.5inch 5inch Drone Frame Kit 7075 Aluminum CNC Side Panel for DJI O3 Air Unit FPV


Login to view prices

This product is currently out of stock and unavailable.

LHCXRC CLOUD-160 160mm Wheelbase 3.5inch Drone Frame Kit 7075 Aluminum CNC Side Panel for DJI O3 Air Unit FPV Camera Spare Parts

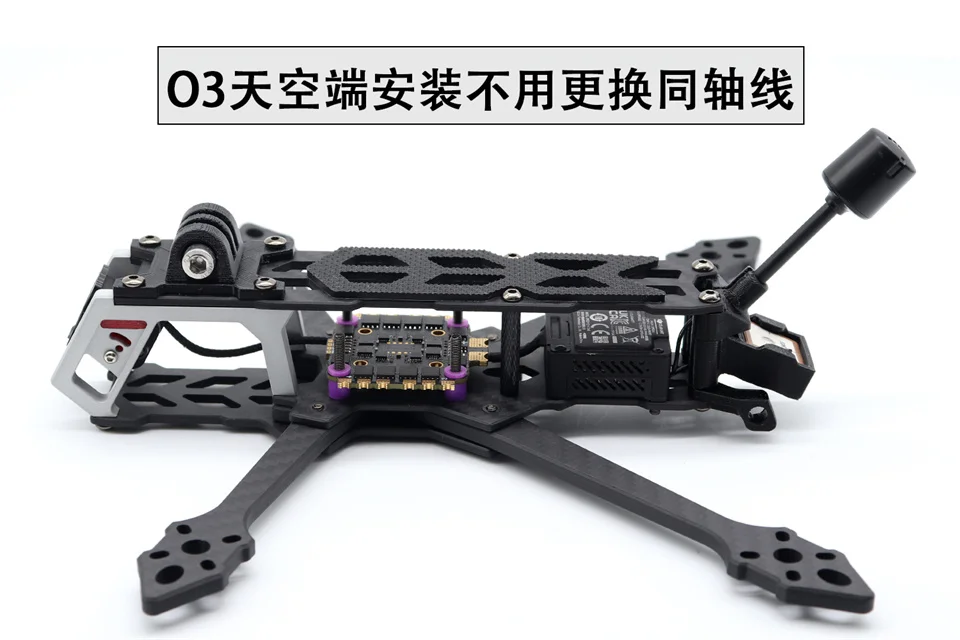

The LHCXRC CLOUD-160 rack is equipped with a new 7075 aluminum alloy CNC side panel, which can perfectly adapt to the new high-definition digital image transmission lens of the DJI O3 air unit. We have TPU lens shock absorbers printed on both sides of the lens, allowing for unobstructed viewing angles during flight and perfect high-definition video recording. We also specially designed the O3 image transmission module with CNC aluminum alloy heat dissipation fins, which can better provide timely and sufficient heat dissipation for your image transmission.

LHCXRC CLOUD-160 rack parameters:

Model: CLOUD-160

Wheelbase size: 160mm

Top plate thickness: 2mm

Bottom plate thickness: 2mm

Arm thickness: 4mm

Flight control installation hole position: 20mm X 20mm/25.5 mm x 25.5 mm

Flight control installation height: 25mm

Image transmission installation hole position: 20mm X 20mm/25.5 mm x25.5 mm

Motor installation hole spacing: 16mm X 16mm/19mm X 19mm

Camera installation size: 20mm X 20mm

Suitable blade size: 3.5 inch spiral blade

Size: 195mm X 158 mm X 37 mm

Weight: 81g (including 3D printout)

Recommended motor: 1804/2004

Recommended flight control: F411AIO/F722AIO

Recommended battery: 4S-1300

Recommended blade 3520



Product Features:

Small size, light weight, and good flying feel

9mm x 9mm and 12mm x 12mm motor holes can be installed

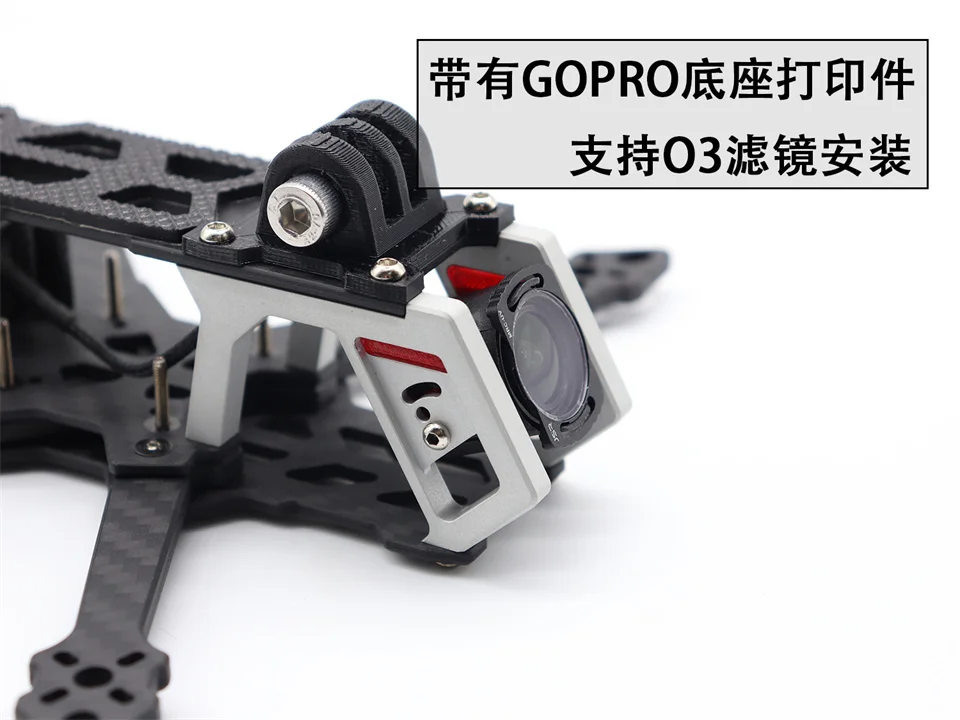

Designed GOPRO camera base for perfect installation of GoPro Hero 8 Naked Camera and INSTA 360 GO 2 camera

Specially designed for O3 image transmission module with CNC aluminum alloy heat sink

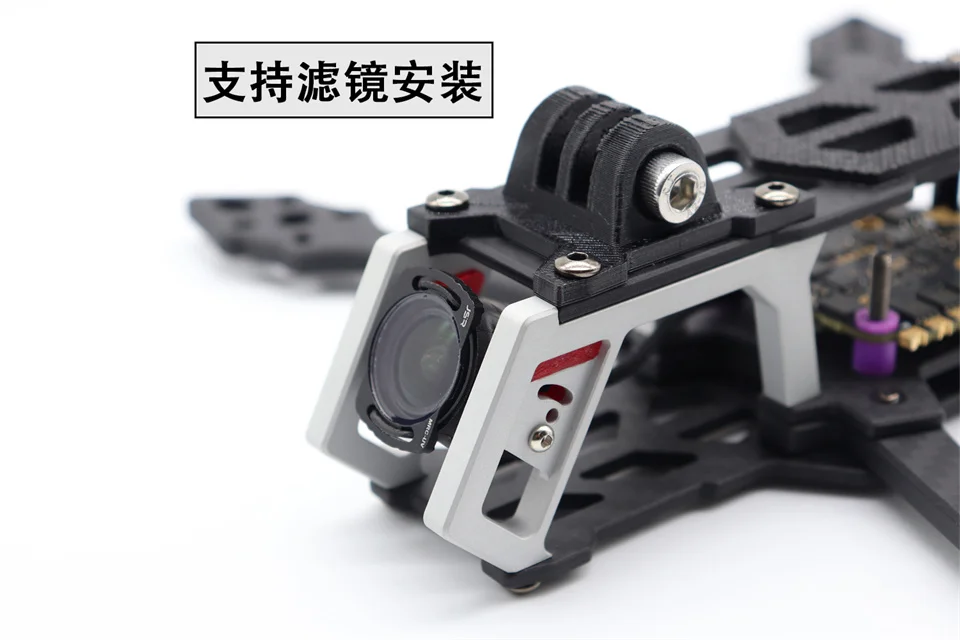

Adopting 7075 aluminum alloy CNC side panel, it can perfectly adapt to the new high-definition digital image transmission lens of DJI O3 air unit



Product List:

1 x upper plate 2.0mm

1 x front bottom plate 2.0mm

1 x rear base plate 2.0mm

2 x front boom 4.0mm

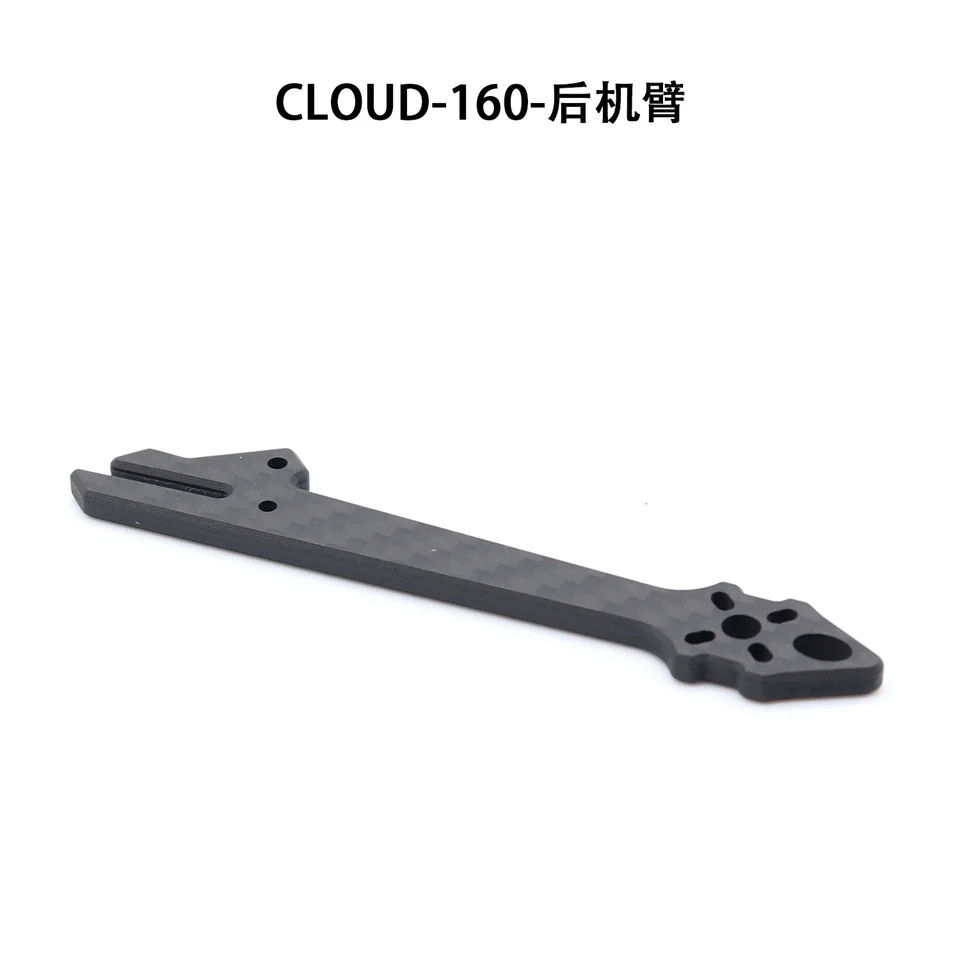

2 x rear boom 4.0mm

4 x mesh aluminum column M2.5×25

12 x round head M2.5×5 screw

4 x round head M2.5×8 screw

4 x round head M2.5×12 screws

4 x round head M2x9 screws

4 x round head M2x18 screws

8 x rivet nut M2 (already pressed)

2 x CNC front aluminum parts

1 x CNC image transmission heat sink aluminum parts

1 x Camera Shock Absorbing 3D Print Left

1 x Camera Shock Absorbing 3D Print Right

1 x 3D printing of image transmission antenna installation

1 x GPS installation 3D printout

1 x 3D printed installation of receiver T-shaped antenna

1 x GPRO installation 3D printout (with screws, nuts, screwdriver)

1 x battery rolling strip

1 x Battery anti slip pad

4 x Arm EVA Foot Mats

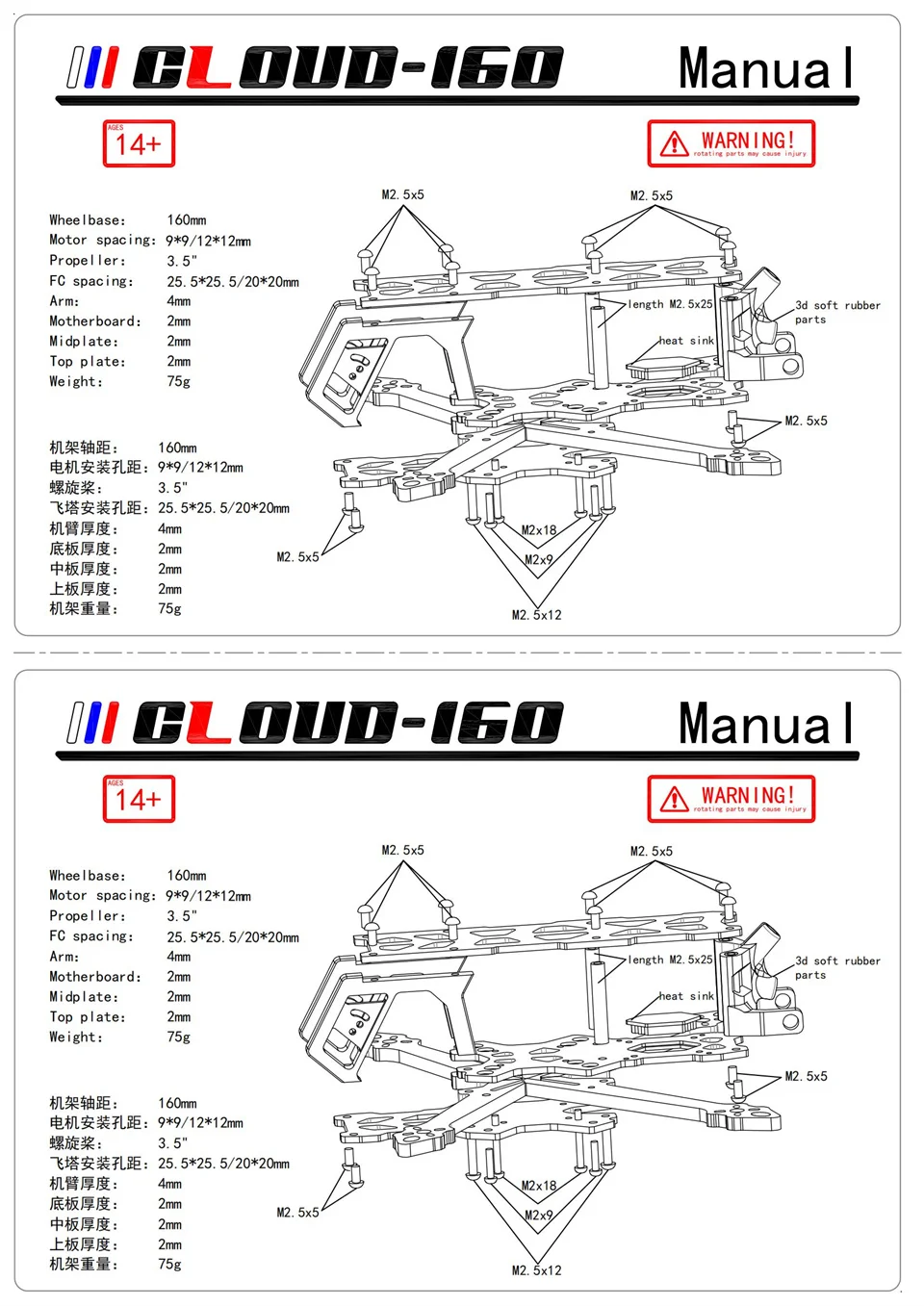

1 x Installation manual

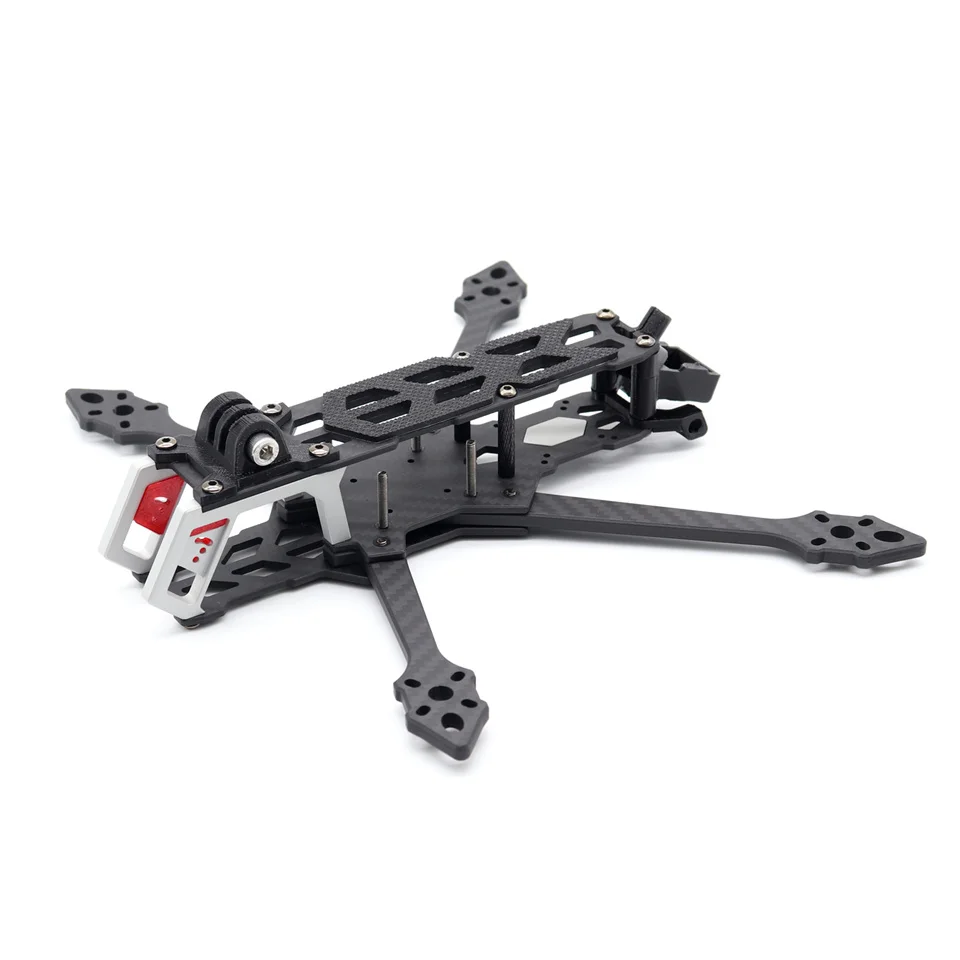

The LHCXRC CLOUD-225 rack arm adopts a wide X design, with a stable and flexible flight attitude, suitable for flexible aerial photography. The arm is designed with quick disassembly and easy replacement. The all-new 7075 aluminum alloy CNC side panel is perfect for adapting to the new high-definition digital image transmission lens of DJI O3 air unit. We provide TPU lens shock-absorbing prints on both sides of the lens, allowing for unobstructed viewing angles during flight and perfect recording of high-definition videos. We also specially designed the O3 image transmission module with CNC aluminum alloy heat dissipation fins, which can better provide timely and sufficient heat dissipation for your image transmission.
LHCXRC CLOUD-225 rack parameters:
Wheelbase size: 225mm
Top plate thickness: 2.5mm
Bottom plate thickness: 2.5 mm
Arm thickness: 5mm
Flight control installation hole position: 20mm X 20mm/30.5 mm x 30.5 mm
Flight control installation height: 25mm

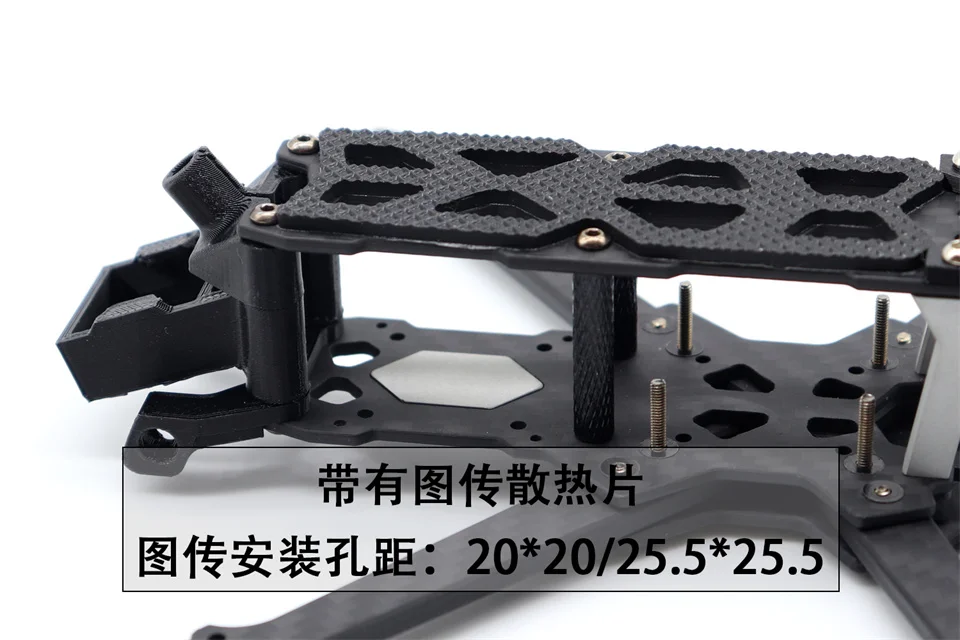

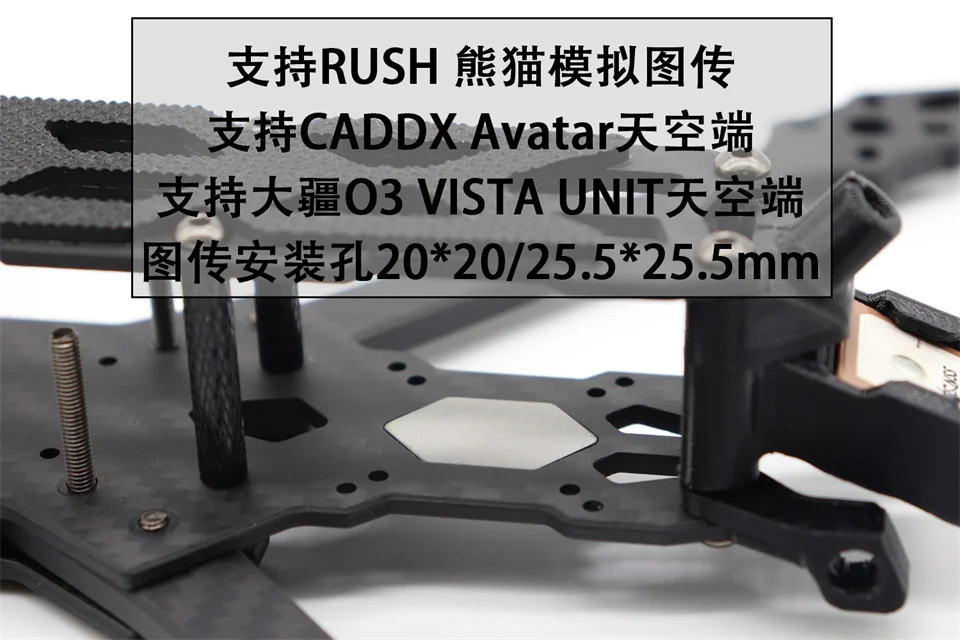

Image transmission installation hole position: 20mm X 20mm/25.5 mm x25.5 mm
Motor installation hole spacing: 16mm X 16mm/19mm X 19mm
Camera installation size: 20mm X 20mm
Suitable blade size: 5-inch spiral blade
Size: 275mm X 225 mm X 40 mm
Weight: 140g ± 5g (including 3D prints)
Recommended motor: 2207/2306
Recommended flight control: F4 flying tower/F7 flying tower
Recommended battery: 6S-1300mah/1500mah
Recommended blade: 5136/5226
Product Features:
The arm is designed with a width of X, ensuring stable and flexible flight posture, suitable for flexible aerial photography.

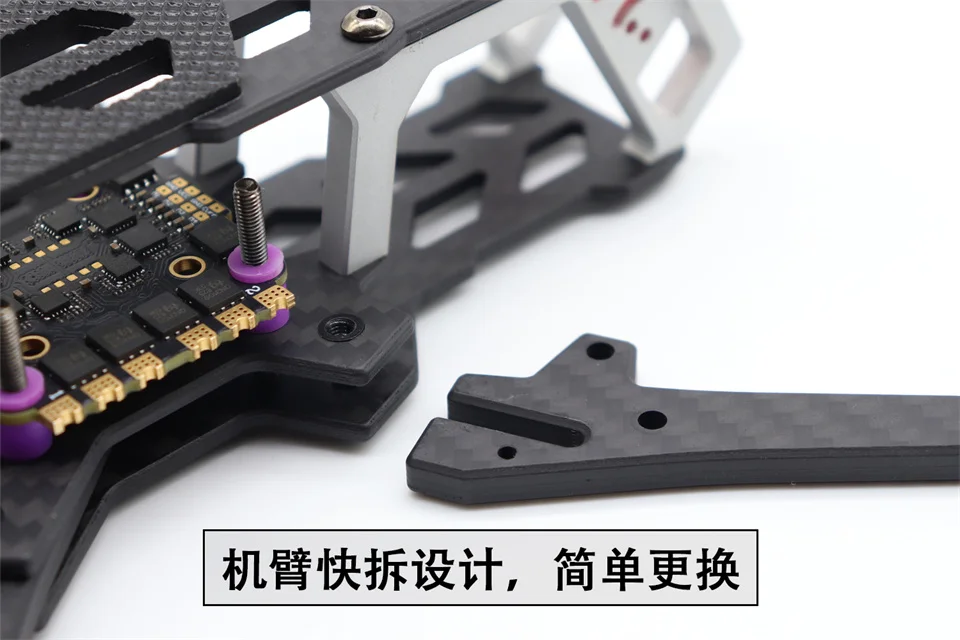

The arm is designed with quick disassembly and easy replacement.
16mm x 16mm and 19mm x 19mm motor holes can be installed

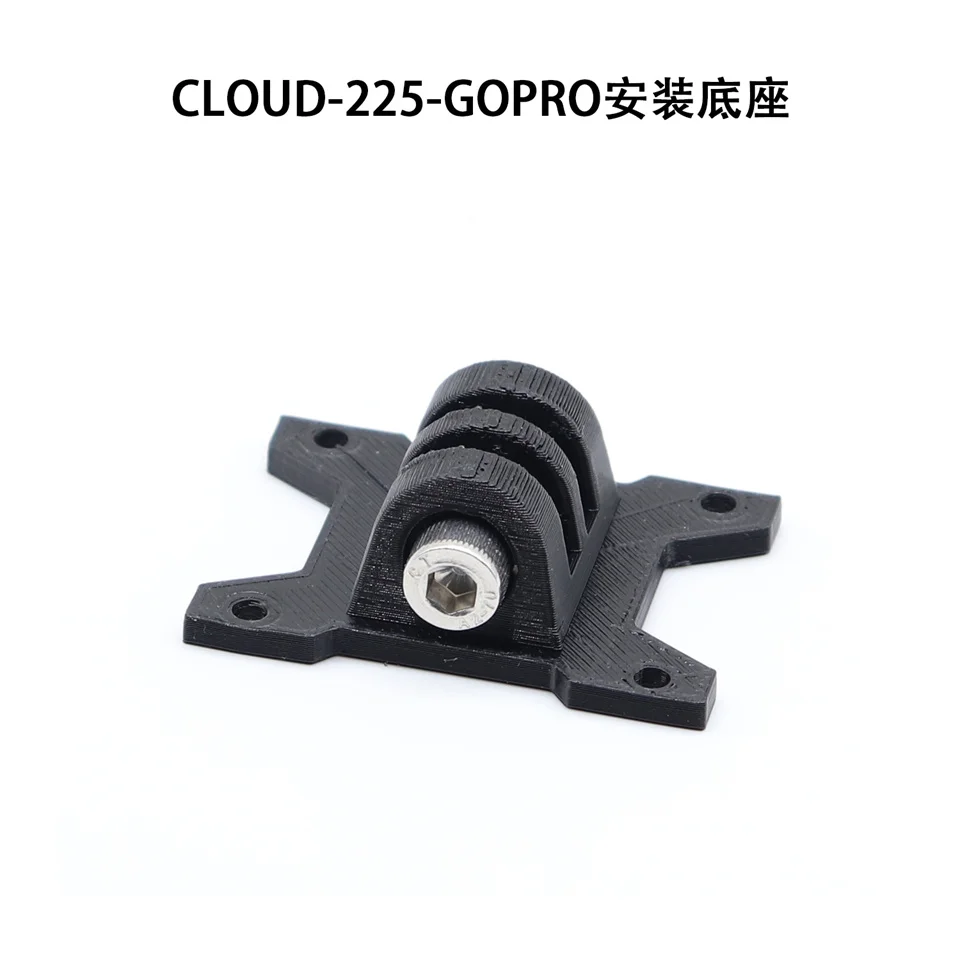

Designed GOPRO camera base for perfect installation of GoPro Hero 8 Naked Camera and INSTA 360 GO 2 camera

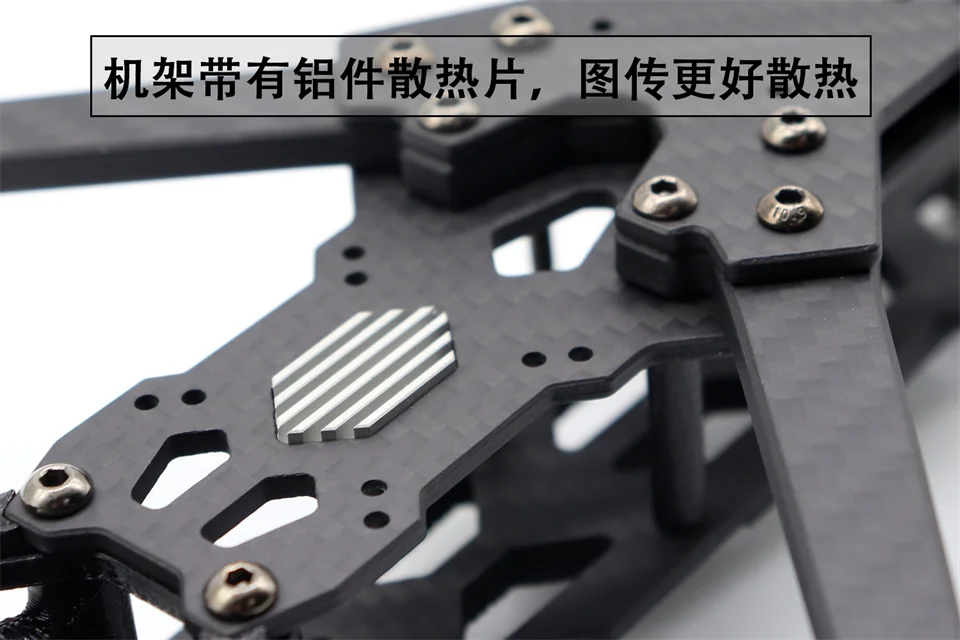

Specially designed for O3 image transmission module with CNC aluminum alloy heat sink
Adopting 7075 aluminum alloy CNC side panel, it can perfectly adapt to the new high-definition digital image transmission lens of DJI O3 air unit
Product List:
1 x upper plate 2.5mm
1 x front base plate 2.5mm
1 x rear base plate 2.5mm
2 x front boom 5.0mm
2 x rear boom 5.0mm
4 x mesh aluminum column M3x25
12 x Round M3x6 Screw
4 x Round head M3x9 screw
4 x Round head M3x11 screw
4 x Round head M3x14 screws
4 x Round head M3x28 screws
4 x Nylon hex nut M3x3
8 x rivet nut M3 (already pressed)
2 x CNC front aluminum parts
1 x CNC aluminum image heat sink
1 x Camera Shock Absorbing 3D Print Left
1 x Camera Shock Absorbing 3D Print Right

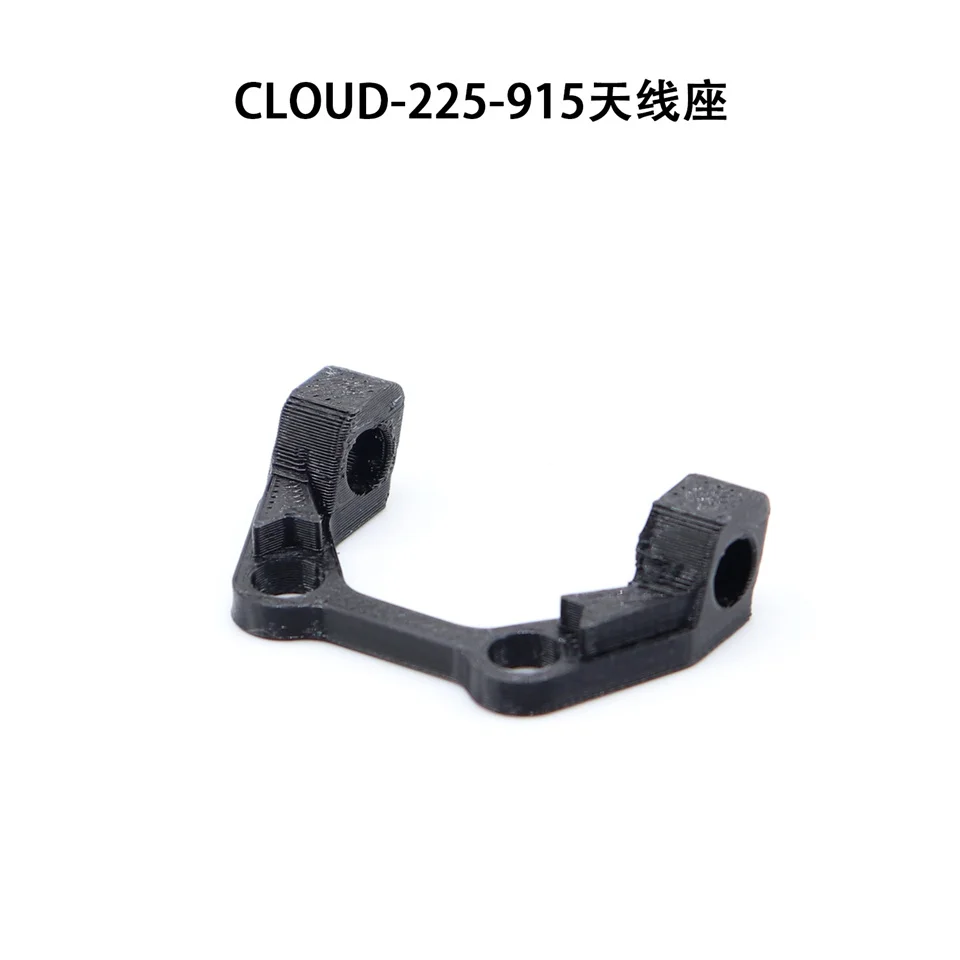

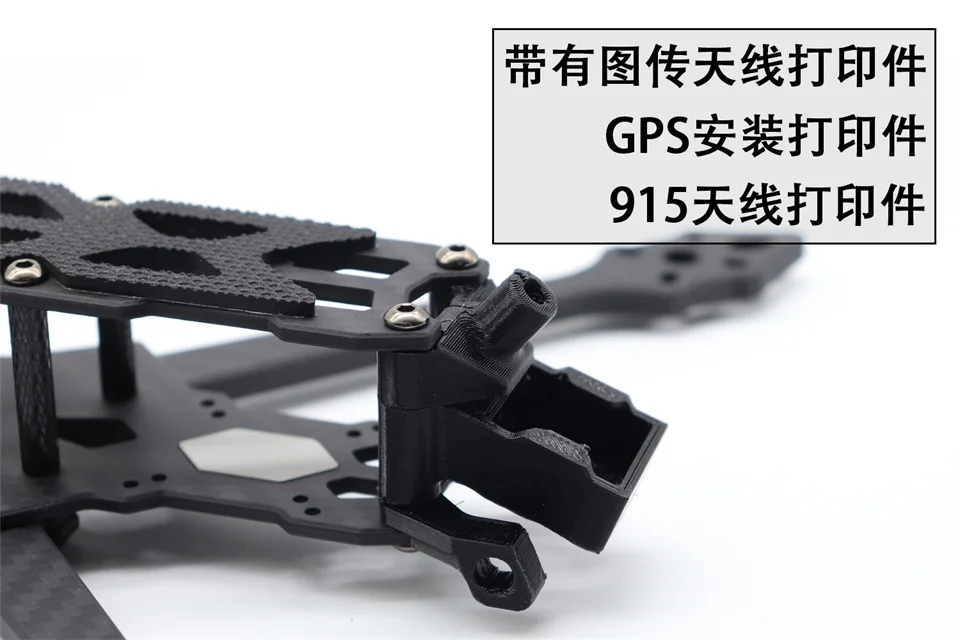

1 x 3D printing of image transmission antenna installation

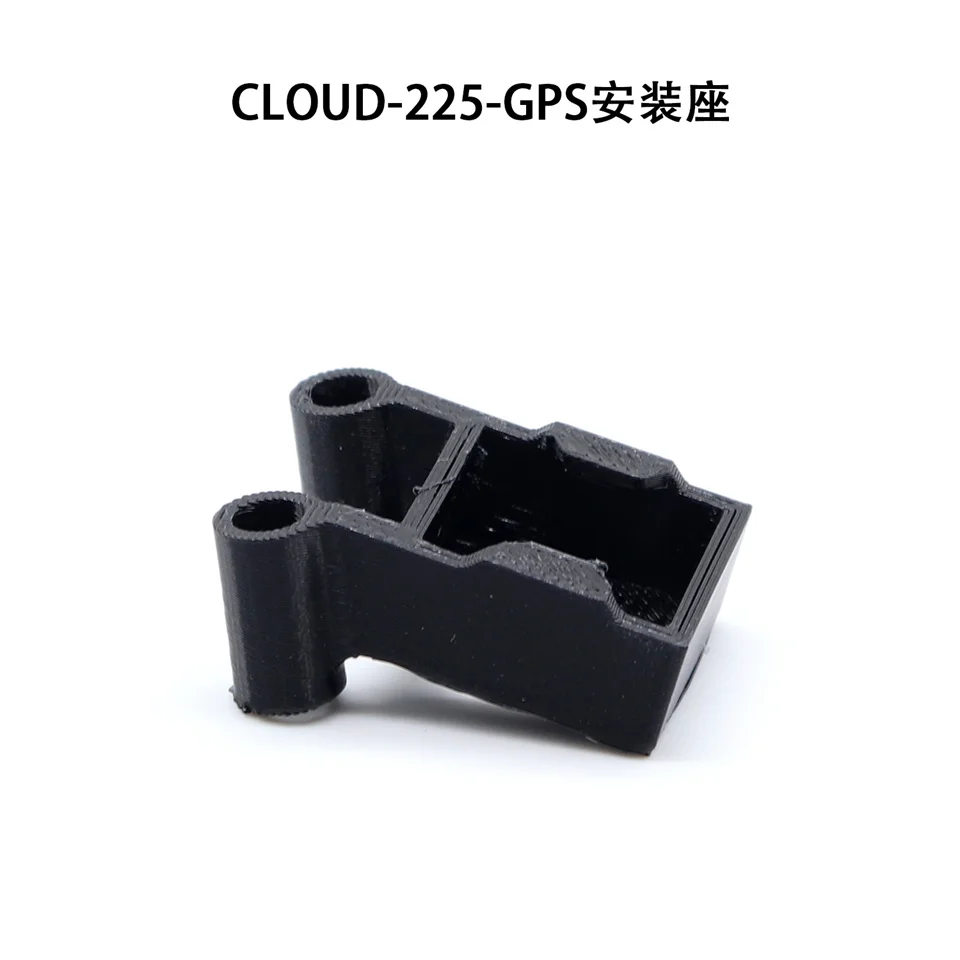

1 x GPS installation 3D printout
1 x 3D printed installation of receiver T-shaped antenna
1 x GPRO installation 3D printout (with screws, nuts, screwdriver)
1 x battery rolling strip
1 x Battery anti slip pad
4 x Arm EVA Foot Mats

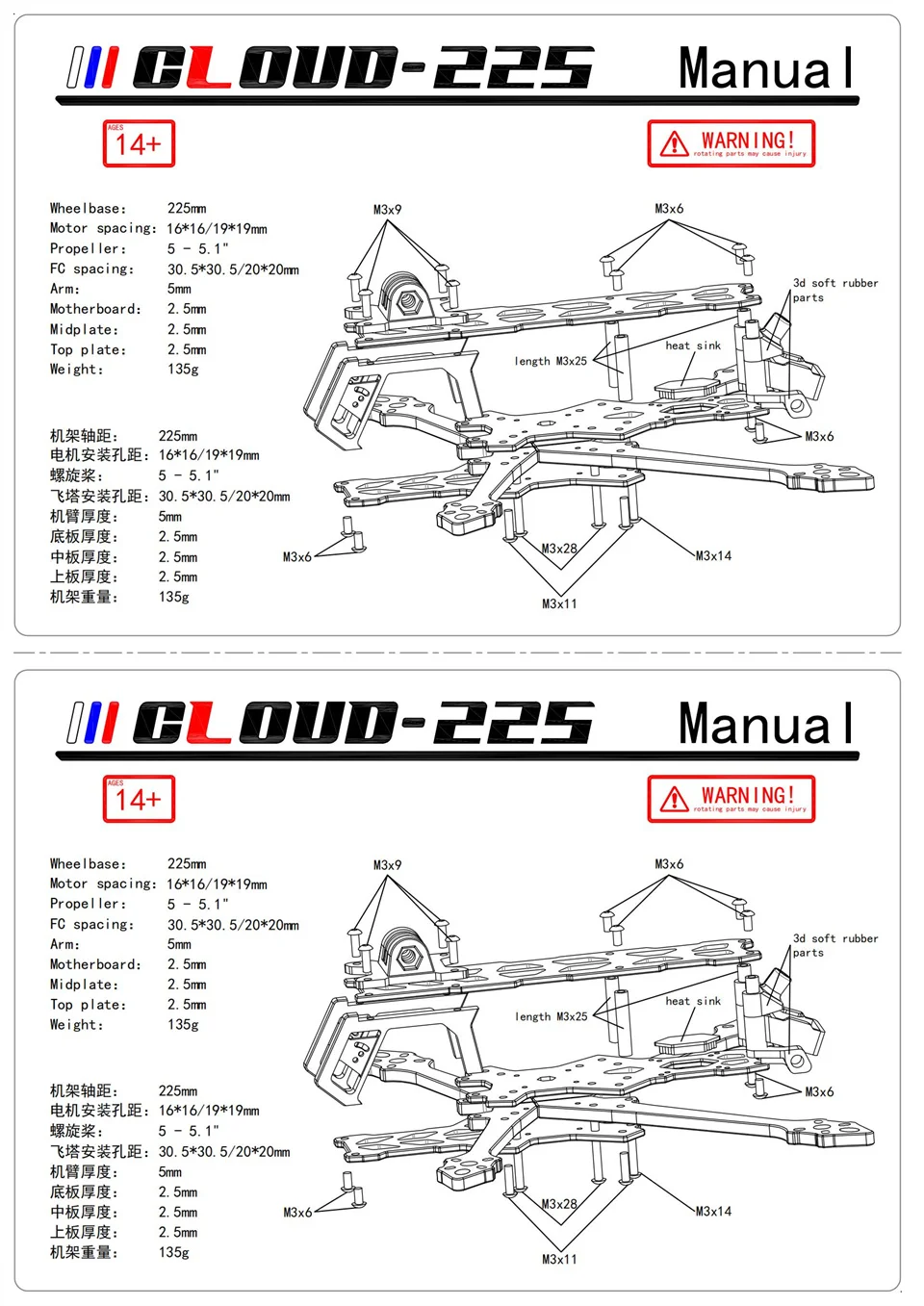

Product Installation Manual
