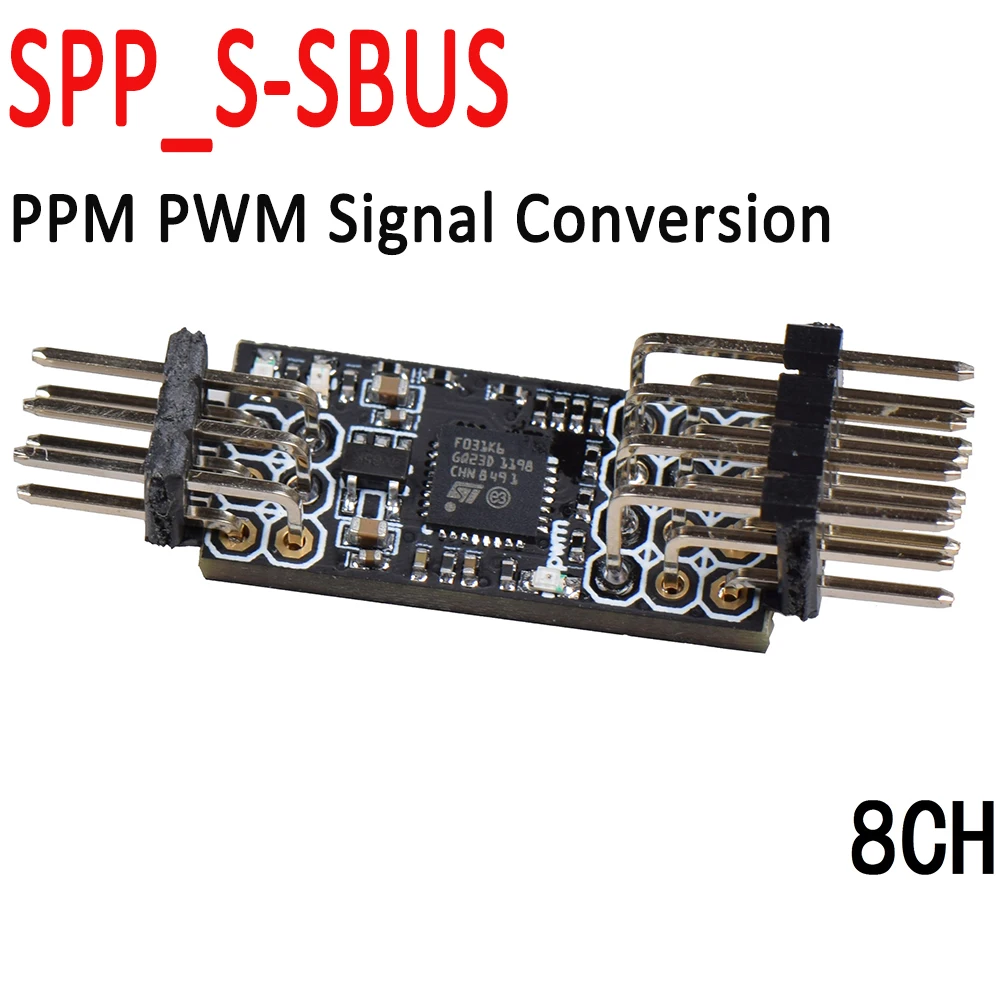

JHE Electronics’ high-performance SPP_S converter, this module’s wide voltage design supports up to 20V input, 32-bit single-chip microcomputer to complete signal acquisition, processing, conversion, stability and speed far beyond the ordinary 8-bit microcontroller, input signal automatic identification, no need to manually switch Plug and play, status indication is simple and clear, support 8 channels of input / output.
Input voltage: 3.3-20V
Weight: 2.7 grams
PWM (common receiver signal)
SBUS (including futaba-R7008SB series, FrSky, etc.)
Input SBUS signal and output PWM and PPM signals simultaneously
Input PWM signal and simultaneously output PPM and SBUS signals
Input PPM signal and output PWM and SBUS signals simultaneously
When there is no signal input, the three indicators are all on (PPM green, SBUS blue, PWM red)
The input signal indicator flashes and the output signal indicator is always on.
For example, when the PPM signal is input, the PPM corresponding indicator flashes green, and the PWM red and SBUS blue signal indicators are always on.

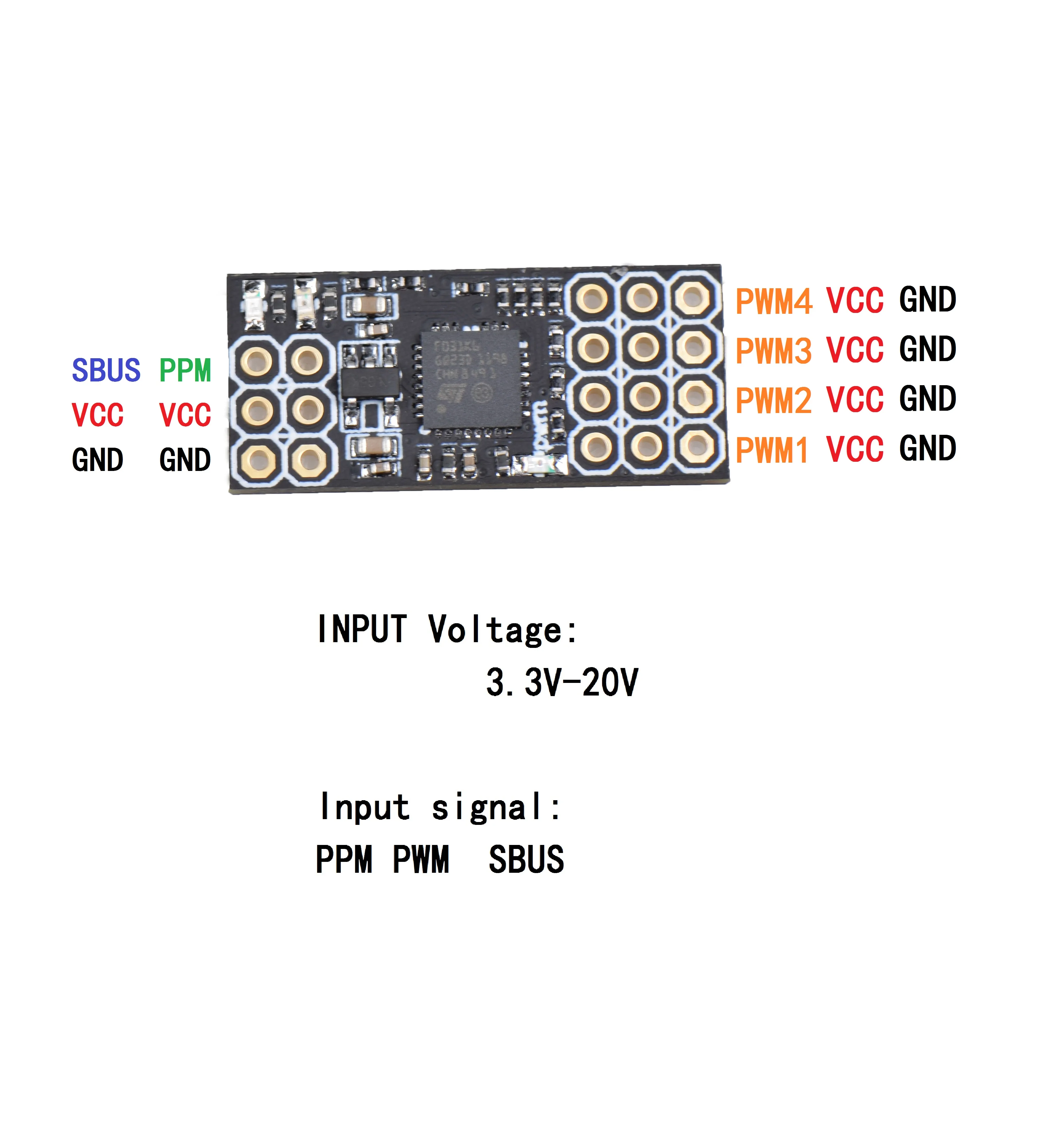

1-8 channels are PWM signal input or output channels
SBUS channel is the SBUS signal input or output channel
PPM channel is PPM signal input or output channel
When any one or more channels of the 1-8 channel input PWM signals, the corresponding PPM channel outputs the PPM signal, and the SBUS channel outputs the SBUS signal.
When the PPM channel inputs the PPM signal, it corresponds to the 1-8 channel output PWM signal, and the SBUS channel outputs the SBUS signal.
When the SBUS channel inputs the SBUS signal, it corresponds to the 1-8 channel output PWM signal, and the PPM channel outputs the PPM signal.

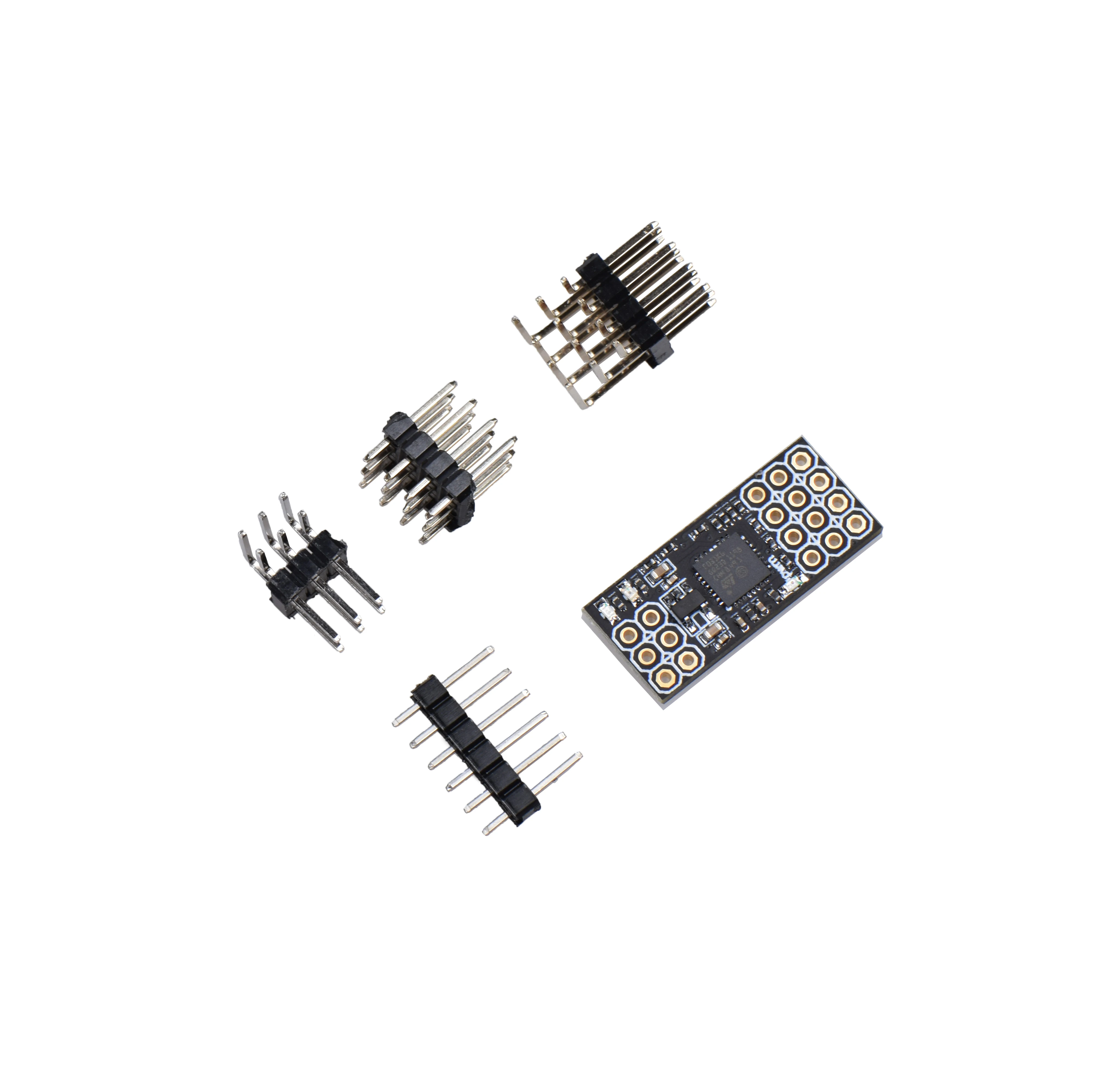

SPP conversion module 1
4P*2.54MM*3 pin straight needle 1
4P*2.54MM*3 pin needles 1 piece
3P*2.54MM*2 pin needles 1 piece
6P*2.54MM pin straight needle 1
Note: the pins are self-welding
