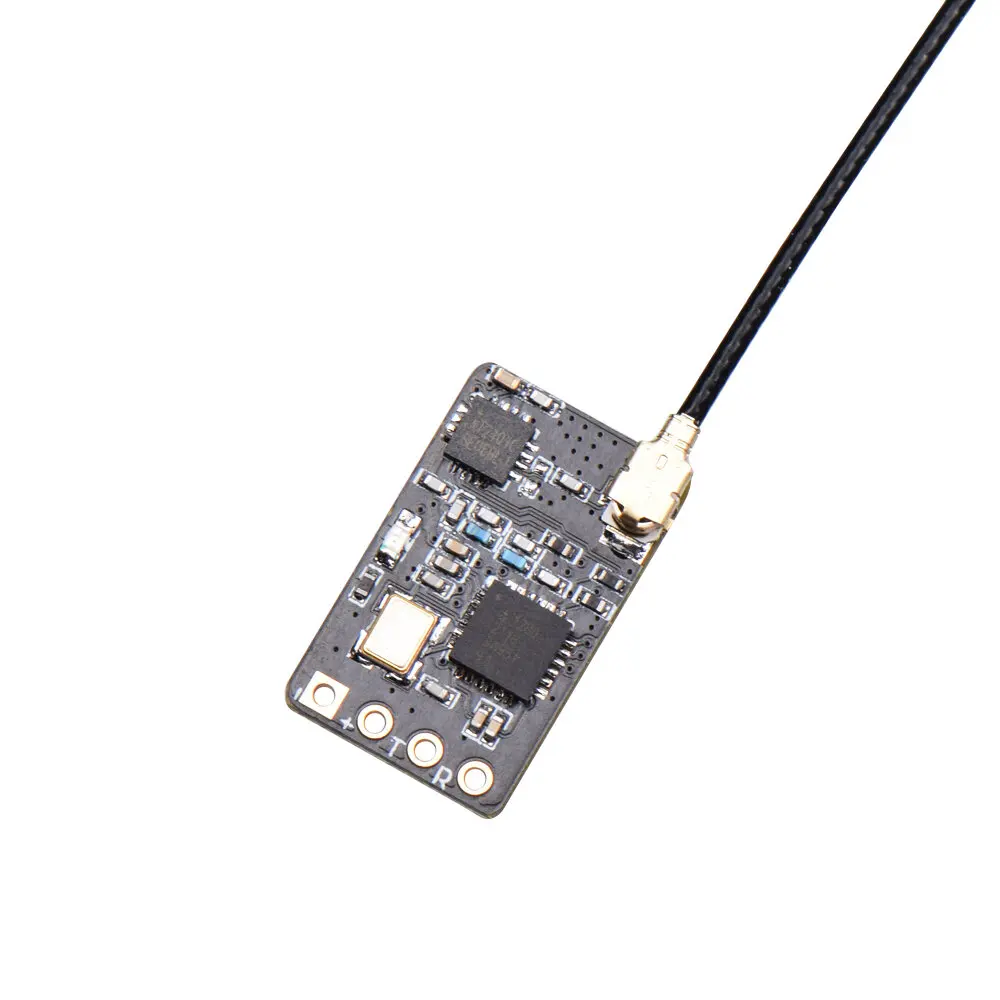

JHEMCU RX24T 2.4G ExpressLRS ELRS High Refresh Rate Low Latency Ultra-small Long-range RC Receiver

Specifications:

Brand Name: JHEMCU
Item Name: RX24T RC Receiver
Model: RX24T
Weight: 0.6g(without antenna)
Size: 11*18*3 mm
2.4G ISM type
ESP8285 MCU
SX1280IMLTRT RF
Frequency range: 2400 MHz To 2500 MHz
Maximum receiving refresh rate: 500Hz
Minimum receiving refresh rate: 25Hz
Working voltage: 5V
Peak gain: 3.16dB
RX24T: Half-wave dipole omnidirectional T-shaped antenna

Linking Binding steps:

– After the receiver is connected to the flight controller, connect the USB to power the flight controller. After inserting the USB for the first time, disconnect the USB as soon as the LED on the receiver turns off. Repeat the operation twice, when the USB is inserted for the third time, the LED will start to flash double, and the receiver will enter the code matching mode.

– After the 2.4G ELRS tuner module and the remote control are correctly connected, copy the ELRS.LUA file to the SD card in the remote control, the directory is SD Card/Scripts/tools, and then run ELRS.LUA for Bind operation.

– After the binding is successful, the LED on the receiver will become steady on, and the telemetry signal can be received at the same time.

Indicator status:

Double flash: code matching mode
Slow flashing: No transmission signal is received
Steady on: receive the transmit signal
Fast flashing: WIFI upgrade mode

Package Include:

1 x RX24T RC Receiver
1 x T antenna
4 x Wire
