JHEMCU FS2A-4CH Receiver AFHDS_2A Protocol Mini Compatible Receiver PWM Output


For Flysky i6 i6X i6S Transmitter

Login to view prices

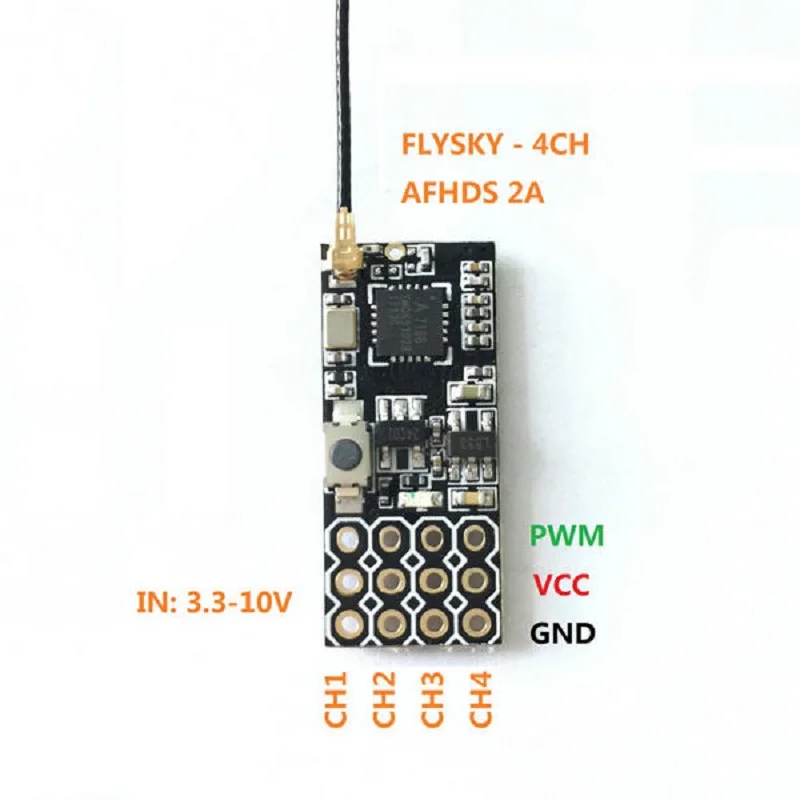

Description:

Item name: Flysky FS2A 4CH Receiver
Channels: 4CH
Output signal: PWM
Frequency range: 2.408-2.475GHZ
Band width: 135
Receiver sensitivity: -92DBM
2.4G mode: AFHDS 2A
Failfe: Yes
Supply voltage: 3.3-10V
Distance: 400+ meters
Working current: 20MA
Dimensions: 11 * 25MM
Weight: 0.9 grams
Support: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitter

Bind:

1. Press and hold the key on the receiver and connect the power to the receiver. The blue light on the receiver flashing, get into bindind mode.
2, Set the transmitter into bind mode (confirmed AFHDS 2A protocol). After getting into bind mode, the receiver light changes from flashing to slow flash.
3, Transmitter get out of bind mode, then the receiver blue light becomes bright. Indicates that the signal receive is successful.

Failsafe settings:

The receiver can normally receive the transmitter signal, push the rocker to the the failsafe set, long press the receiver bind button, the blue light flashes quickly several times and then always bright , failsafe settings is successful.

Pacakge Included:

1X FS2A 4CH AFHDS 2A Mini Compatible Receiver

SKU: BS032-040 Category:
Weight 0.1 kg
Dimensions 6 × 6 × 6 cm
