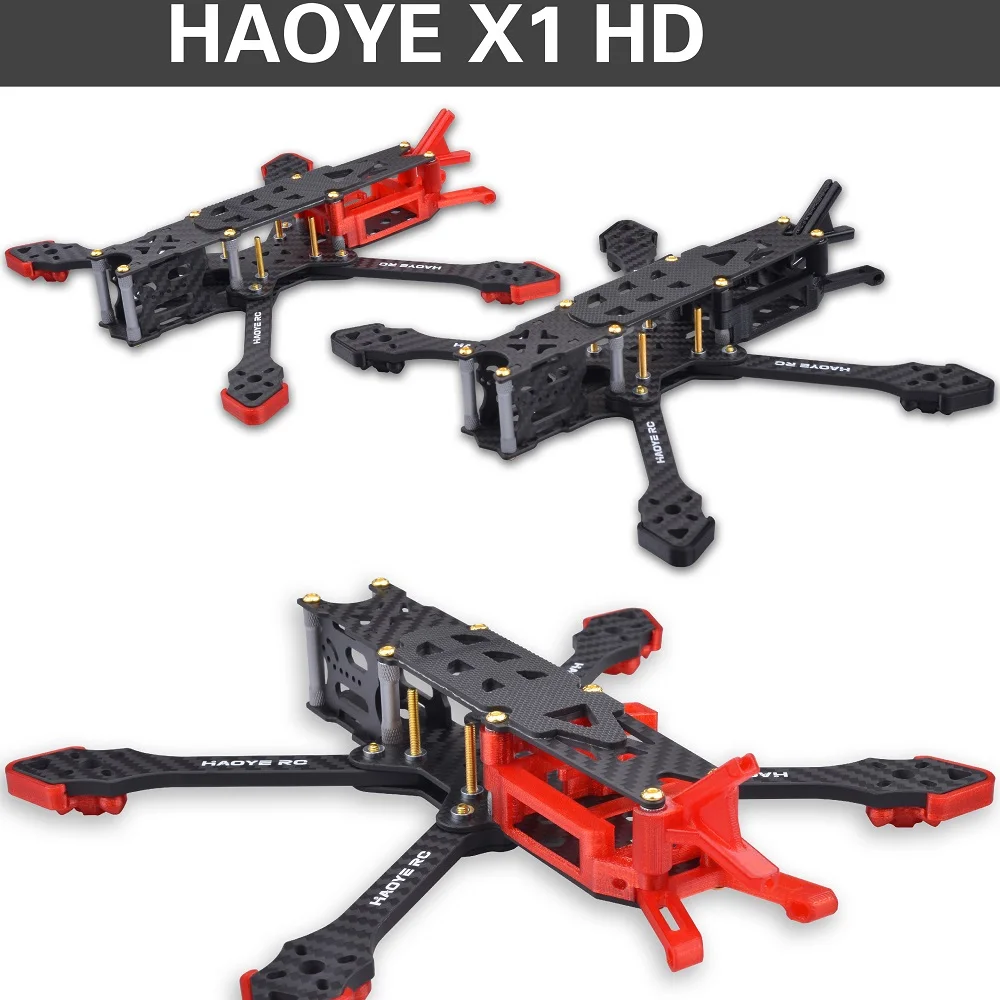

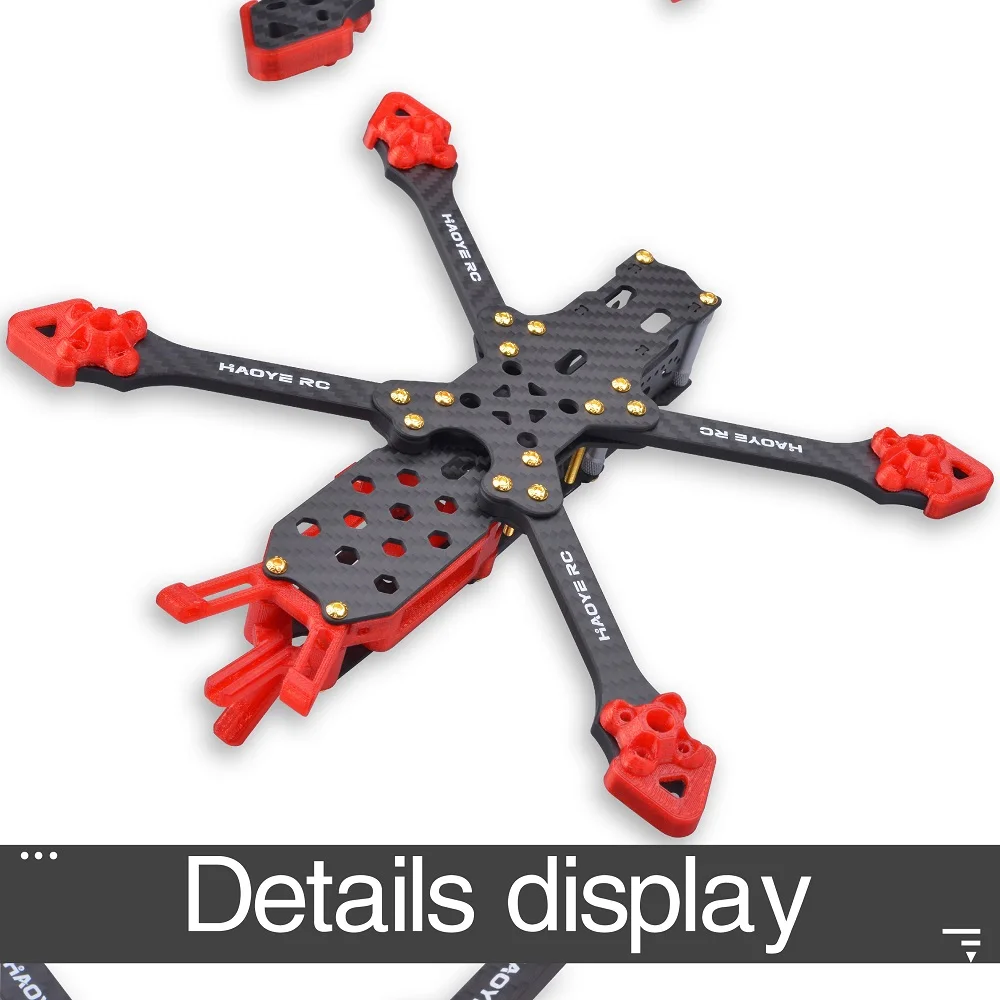

HaoYe RC X1 HD 229mm Wheelbase 5mm Arm Thickness H Tpye 5 Inch Frame Kit for RC Drone FPV Racing


Login to view prices

Specification:

Specification:
Brand Name: HaoYe RC
Model: X1 HD
Item Name: 229mm Wheelbase H Tpye Racing Frame Kit
Wheelbase: 229mm
Material: Carbon Fiber
Arm Plate Thickess: 5mm
Other Plate Thickness: 2mm
Standoff Height: 25mm
Dimension: 187x206mm
Weight: 129g

Recommend Parts:

Flight Controller: 20x20mm /30.5×30.5mm RF/KISS/F3/F4/F7 FC
Brushless ESC: 30-60A
Brushless Motor: 2305/2306/2207/2207.5/2407 Motor
Propeller: 50XX 5 Inch Propeller
FPV Camera: 22mm Mounting Width Camera
Lipo Battery: 4S 1500mA- 6S 1100mAh Lipo

The Following Parts are Compatible: ( NOT Included)

FC & ESC Stack: 20x20mm Flywoo GOKU F722Mini F7 FC & 406S 40A BL_32 2-6S ESC
Brushless Motor: FLYWOO NIN PLUS N2207.5 2207.5 1700KV 4-6S Brushless Motor
Propeller: Gemfan Hulkie 5055S 5055 5 Inch 3-Blade Propeller 2 CW & 2 CCW
FPV Camera: Foxeer Toothless 2 1200TVL Angle Switchable FPV Camera
Lipo Battery: Gaoneng GNB 22.2V 1100MAH 130C/260C 6S Lipo Battery XT60 Plug

Package Included:

1x 229mm Frame Kit
1x Battery Strap
