Summary:

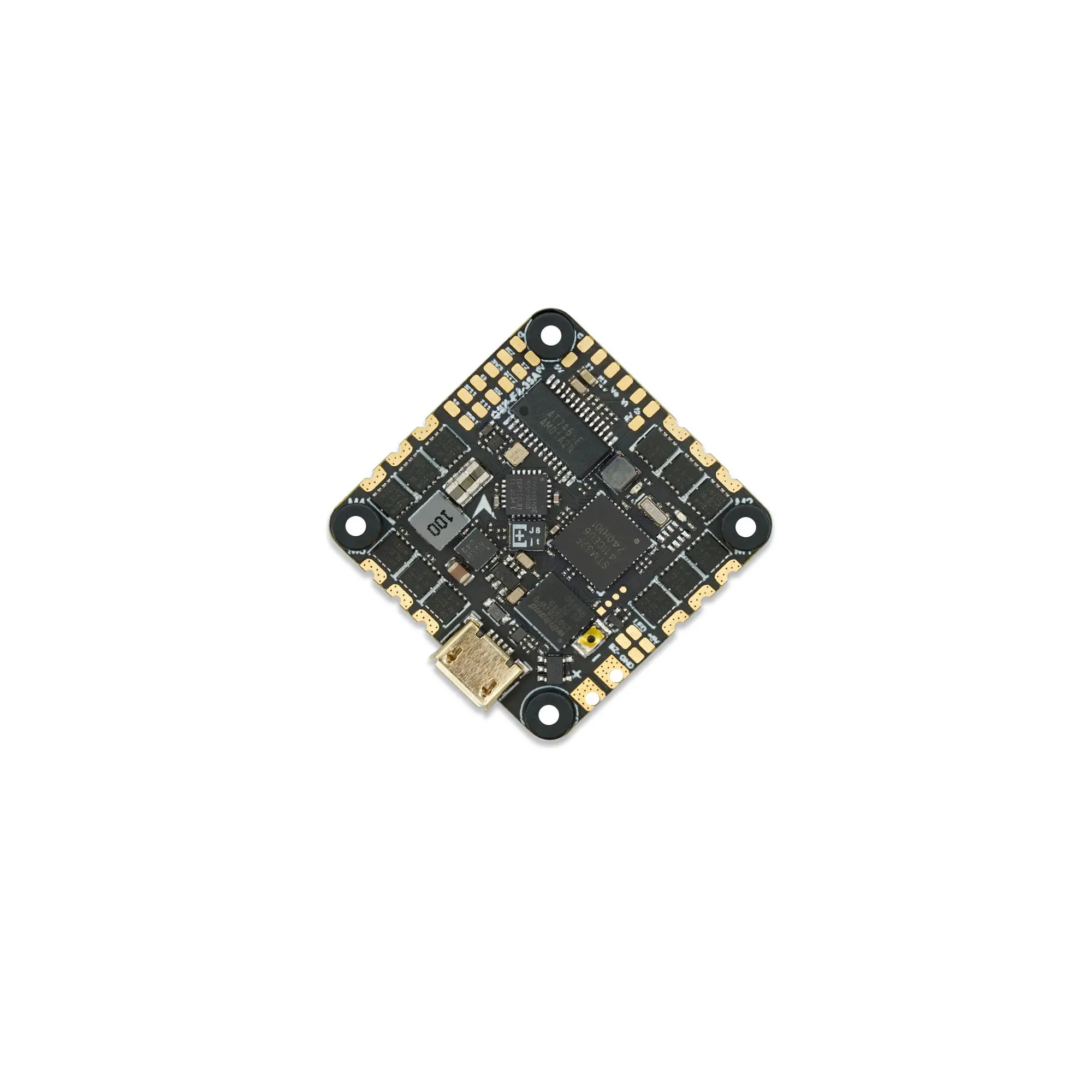

I am gald to introduce a new member of GEP FC AIO, GEP-F4-35A,it is released now.
GEP-F4-35A is developed on the basis of GEP-F4-20A. It can handle 35A continuous current and (40A burst), totally supports the 2-6S lipo battery.It can be used with 1204/1404/1507/1805/2004 motors and 2-5 inch propellers. Support OSD parameter adjustment. It’s 8.3g ultra light weight, and 26.5mm * 26.5mm mounting holes, suitable for most of the frames on the market.
June 14th,2022: Gyro updated to BMI270.
June 25th,2022:Mounting Hole Size changed from 26.5×26.5mm to 25.5×25.5mm.
Specification:
- Model:Â GEP-F411-35AÂ AIO
- MCU:Â STM32F411
- IMU:Â MPU6000 gyro/accelerometer(SPI)
- Target:Â GEPRC_F411_AIO
- OSD:Â Betaflight OSD w/ AT7456Ev
- UART Ports:Â T1 R1 / T2 R2
- Beep:Â YES
- LED:Â YES
- USB Connector:Â micro USB
- ESC MCU:Â 8BB21F16G
- Intergrated LC Filter
- Continue Current:Â 35A
- Burst Current:Â 40A(10s)
- Input Voltage:Â 2~6S (LIPO Battery)
- ESC Protocol:Â Dshot300/600,Oneshot,Multishot
- Current meter:Â 210
- Blackbox:16Mb
- ESC Target:Â G_H_30 BLS
- Size:Â 32x32mm Board
- Mount Holes: 26.5×26.5mm,M2
- Weight:Â 8.3g
Features:
- BLhelis_ S 35A ESC, support 2-6S LIPO battery input, it can handle 35A continuous current (40A burst), with current meter.
- Mainstream STM32F411 FC and runs stably.
- MPU6000 gyroscope with 8K sampling frequency.
- Rich external ports, it supports buzzer and LED light function.
- 26.5mm * 26.5mm mounting holes and ultra light weight, suitabe for most of the frame on the market.
Include:
- 1 x GEP-F4-35A-AIO
- 1 x XT30-7CM-18AWG cables
- 1 x 35V220UF capacitance
- 8 x M2*6.5mm Damping rings
Manual:
![](https://ae01.alicdn.com/kf/Hb02e6a7e30a24102b3e280bac563ade8x.jpg?width=2000&height=2000&hash=4000)
![](https://ae01.alicdn.com/kf/Hd80b2ec21bbd46729274fcbd31a6bfdcD.jpg?width=2000&height=2000&hash=4000)
![](https://ae01.alicdn.com/kf/Hf2e15b9b5a9645dea7c1941689fa9216B.jpg?width=2000&height=2000&hash=4000)
![](https://ae01.alicdn.com/kf/H455ace2fbd044e10b5d3b2c5bb620fa2T.jpg?width=2000&height=2000&hash=4000)
![](https://ae01.alicdn.com/kf/Hfc48551d7c9b44f58d9904770b9ca5dcX.jpg?width=2000&height=2000&hash=4000)
