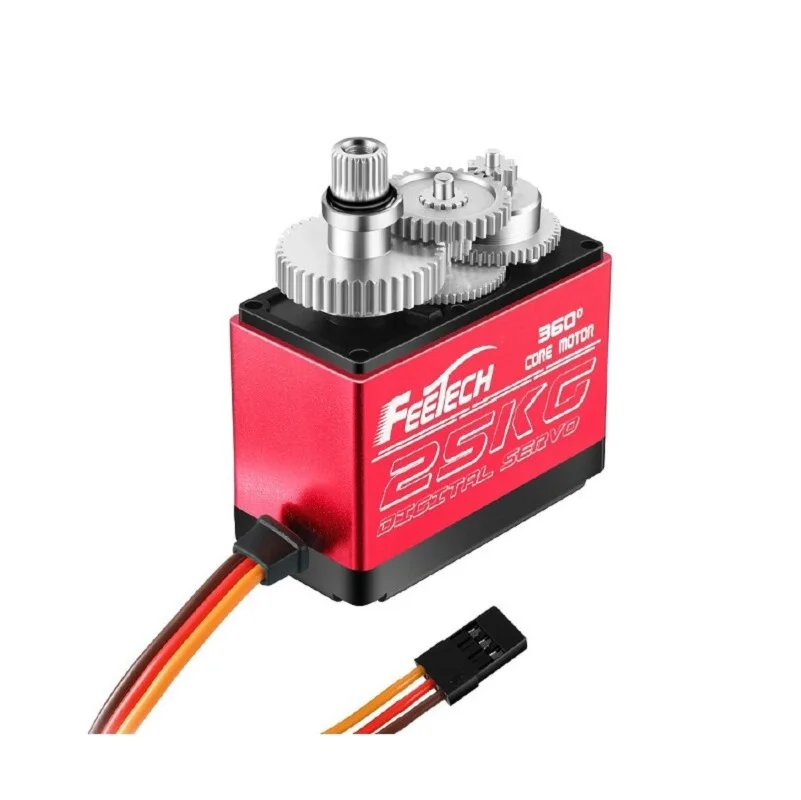

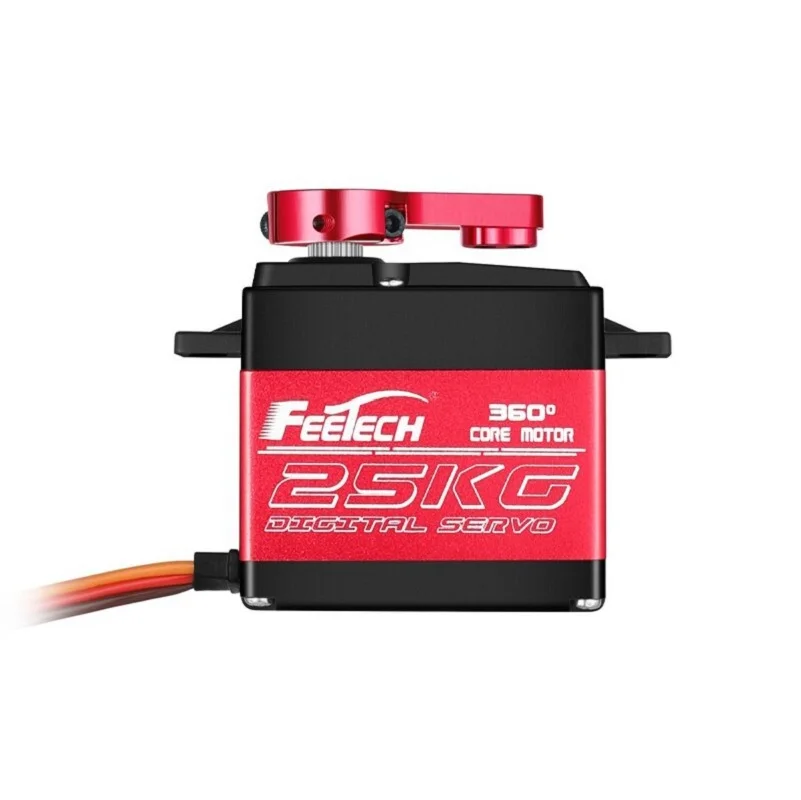

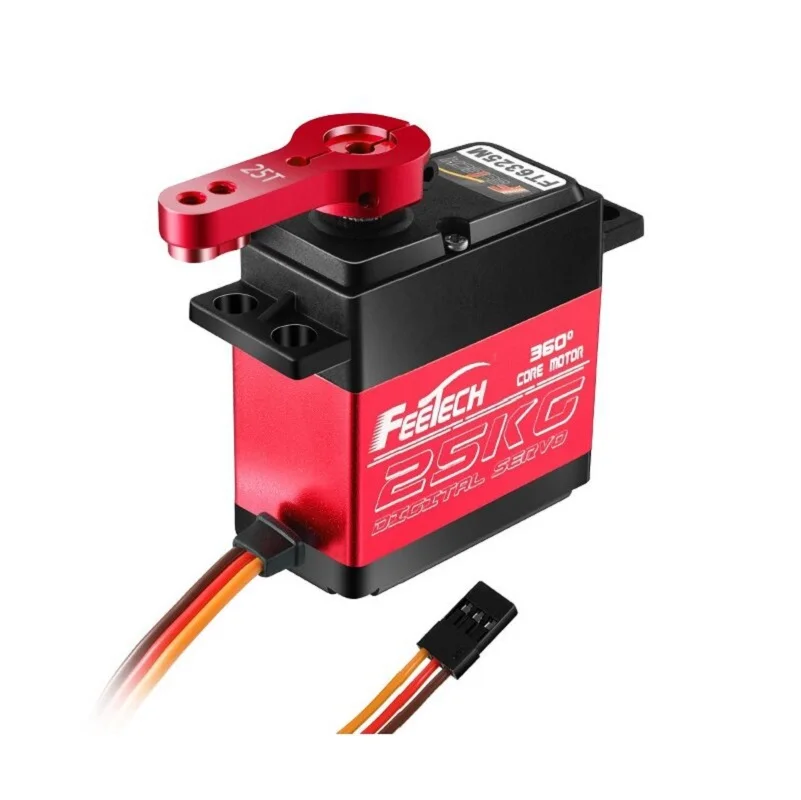

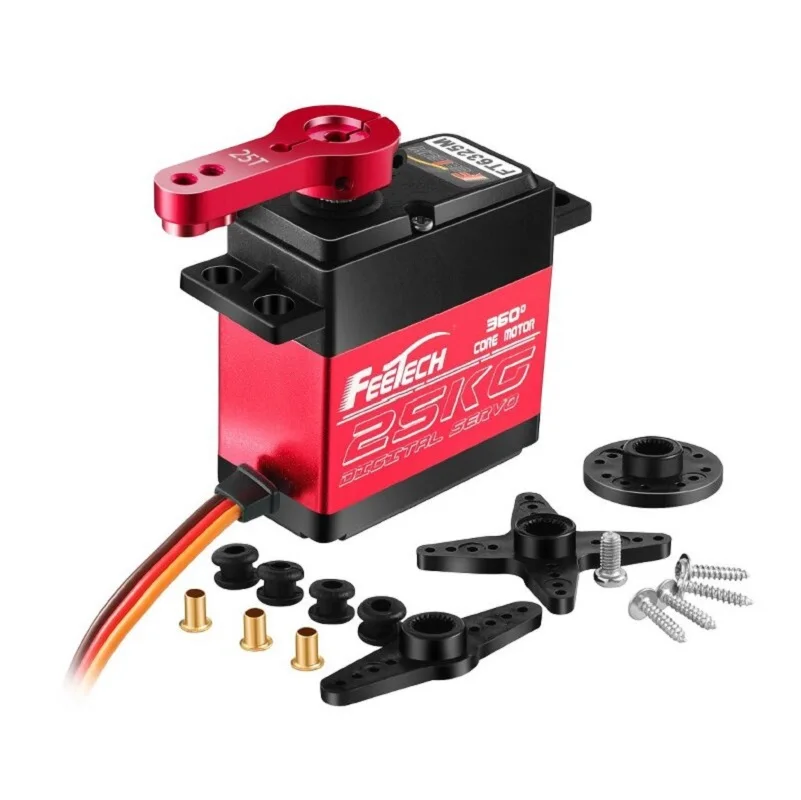

Feetech Servo FT6325M 25KG 360 Degree Digital Servo with AP-3 metal swing arm

Description

Product Name: 7.4V 25kg.cm /35kg.cm digital 360 degree servo
Storage Temperature Range : -30℃～80℃
Operating Temperature Range: -20℃～60℃

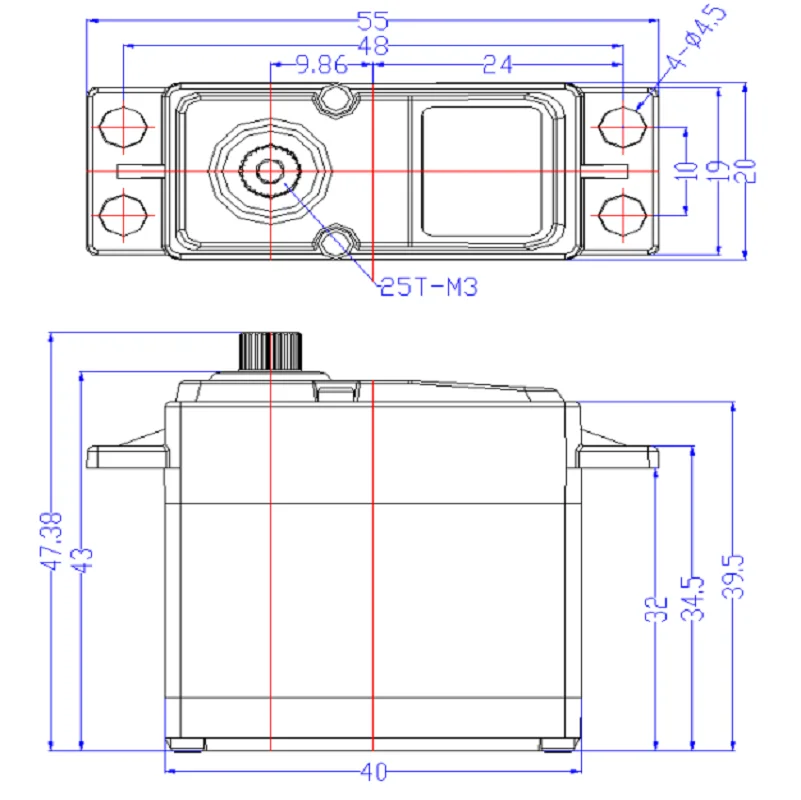

Size:55mm B：20mm C: 43mm
Weight:671g

Specification

Gear type:Steel
Limit angle: NO limit
Bearing: Ball bearings
Horn gear spline: 25T/5.9mm
Horn type: Plastic POM
Case: PA+A lumi num
Connector wire: 30CM
Motor: Core Motor
Operating Voltage Range:6V-8.4V
Idle current (atstopped) : 6MA@7.4V
No load speed: 0.151sec 60°@7.4V
Runnig current(at no load) : 120mA@7.4V
Peak stall torque:25kg.cm@7.4V
Rated torque:8.3kg.cm@7.4V
Stall current: 3.5A@7.4V
Command si gnal Pulse width modification
Amplifier type : Digital compara tor
Pulse width range: 500~2500 μ sec
Stop position : 1500 μ sec
Running degree : 360° （at500→2500 μ sec)
Dead band width ≤4 μ sec
Rotating direction: Counterclockwise (1500→2000 μ sec)
