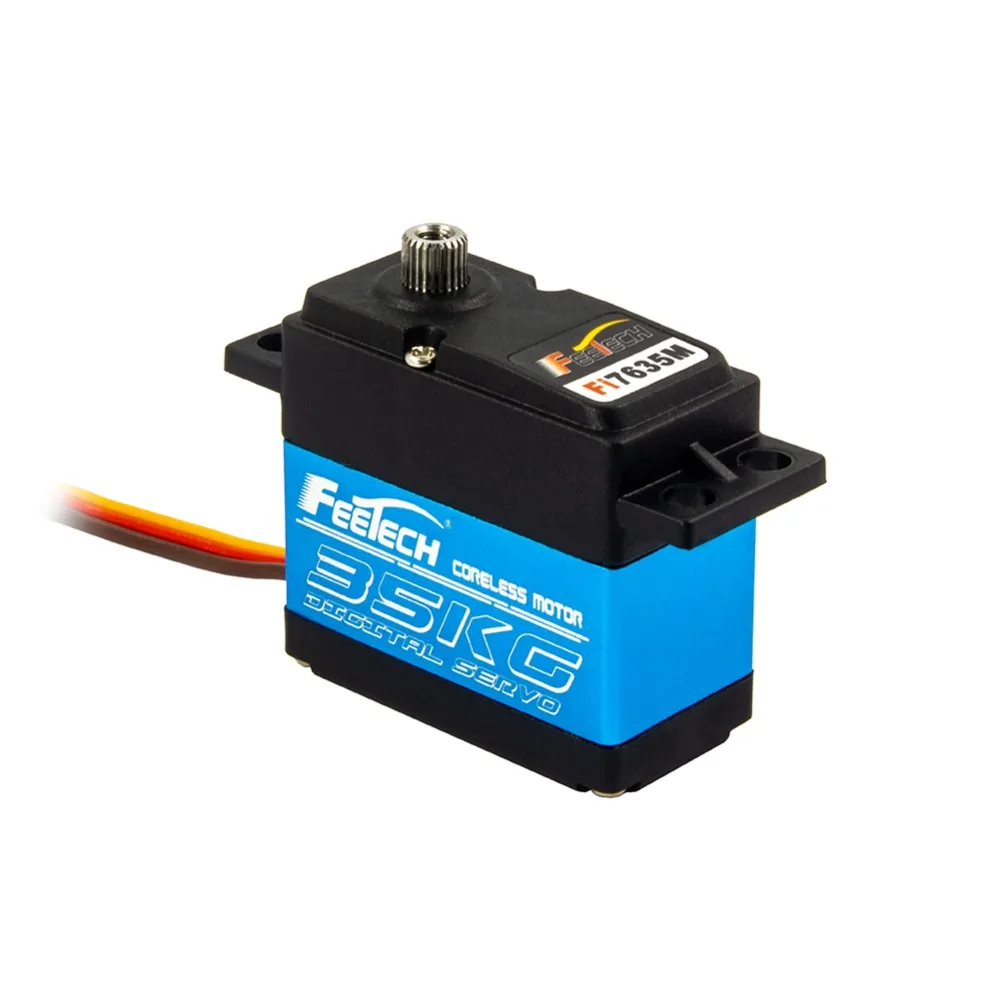

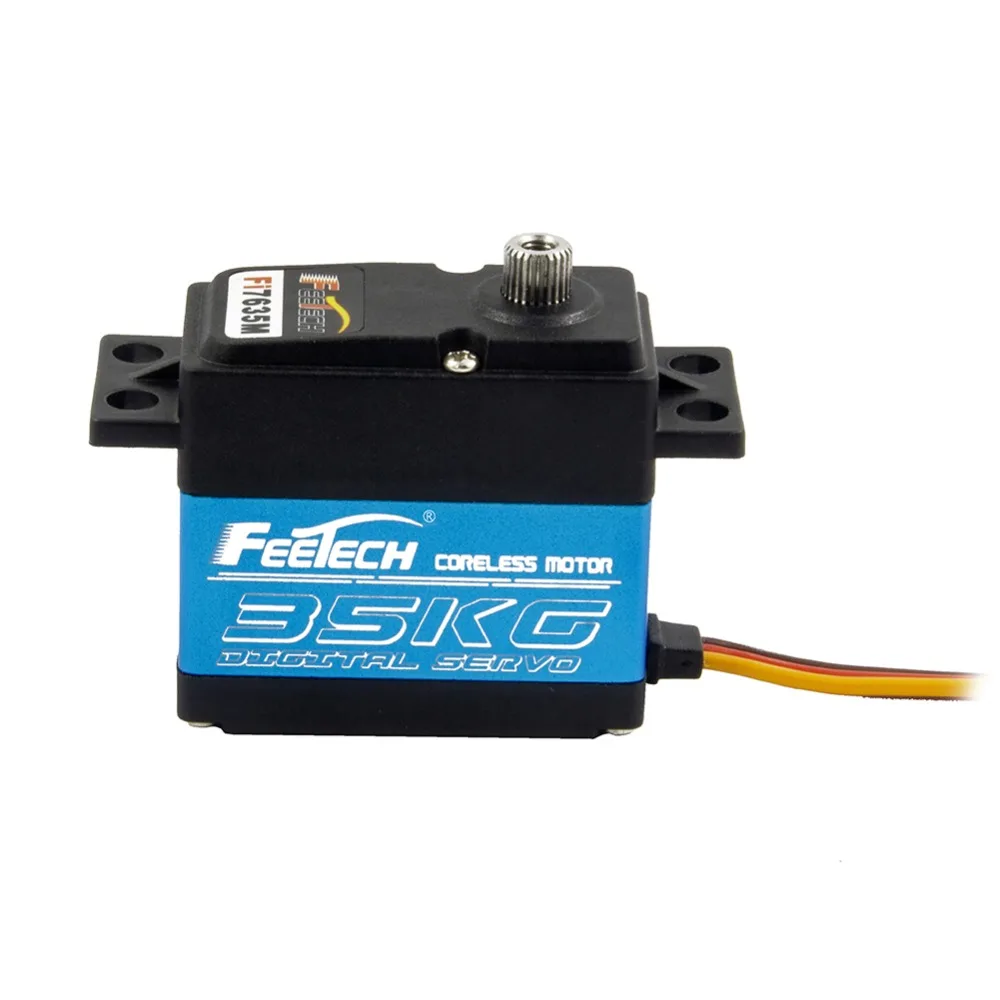

Feetech Servo Fi7635M 35KG Torque180°Digital Servo Aluminum Alloy Gear for Arduino Smart Car Robot
Login to view prices
1、Mechanical Specification：
Size：55X20X38
Limit Angle：No limit
Case material：PA+Aluminum
Gear material：Metal Gear
Bearing type：Ball bearings
Angle Sansor：Carbon-Film Potentiometer
Angle：220°
Life：1000000Cycles Min
Connector and Cable：Type：JR
Material：PVC
Length：30CM
“Pin Definition：1 Signal
2 Vcc
3 GND”
The Weight：65± 1g
Horn Type：25T/5.9mm
Gear Ratio：1/356
Back Lash：≦0.5°
The rocker phantom：0°
The rocker screw：M3X6
Motor：CoreLess Motor
2、Control Specification：
Command Signal：Pulse width modification
Control System Type：Digital comparator
Operating Travel：180°
(at 500→2500μsec)
Left&Right Travelling Angledeviation：≤ 5°
Centering Deviation：≦1°
Neutral Position：1500 μsec
Dead Band Width：≤4 μsec
Rotating Direction：Counterclockwise(在1500→2000 μsec)
Pulse Width Range：500→2500 μsec
Electronic Protection：Stall 3sec

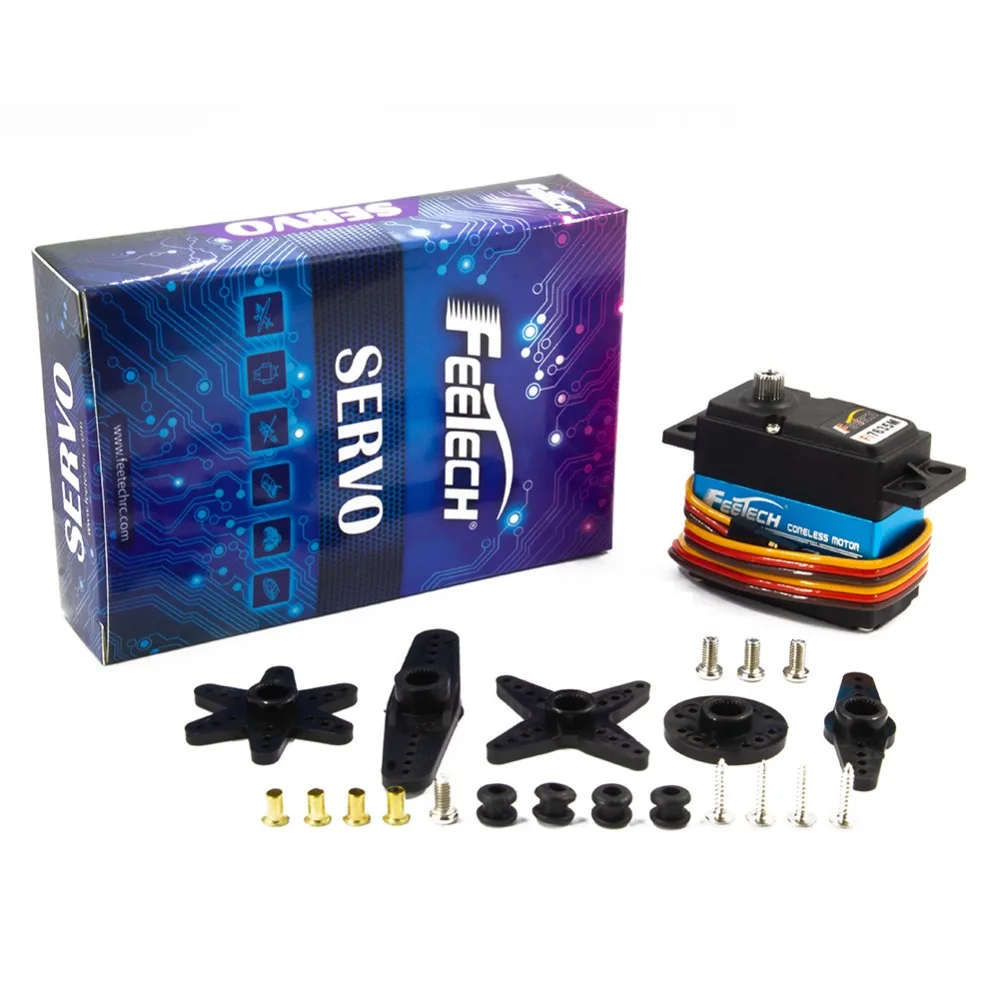

3、Package Include：
1 X Feetech Fi7635M Digital Servo
