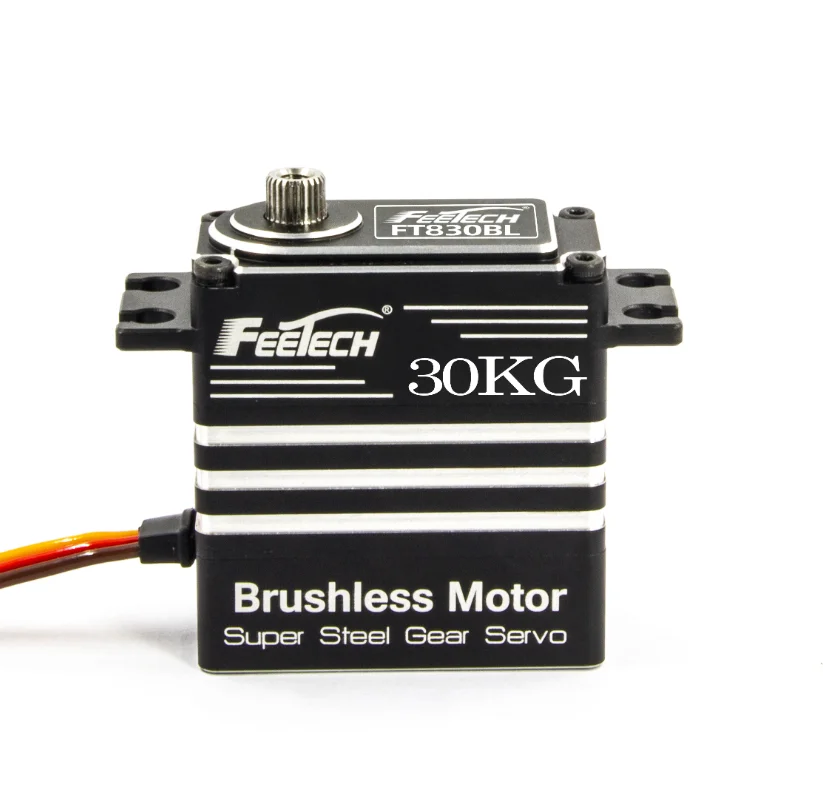

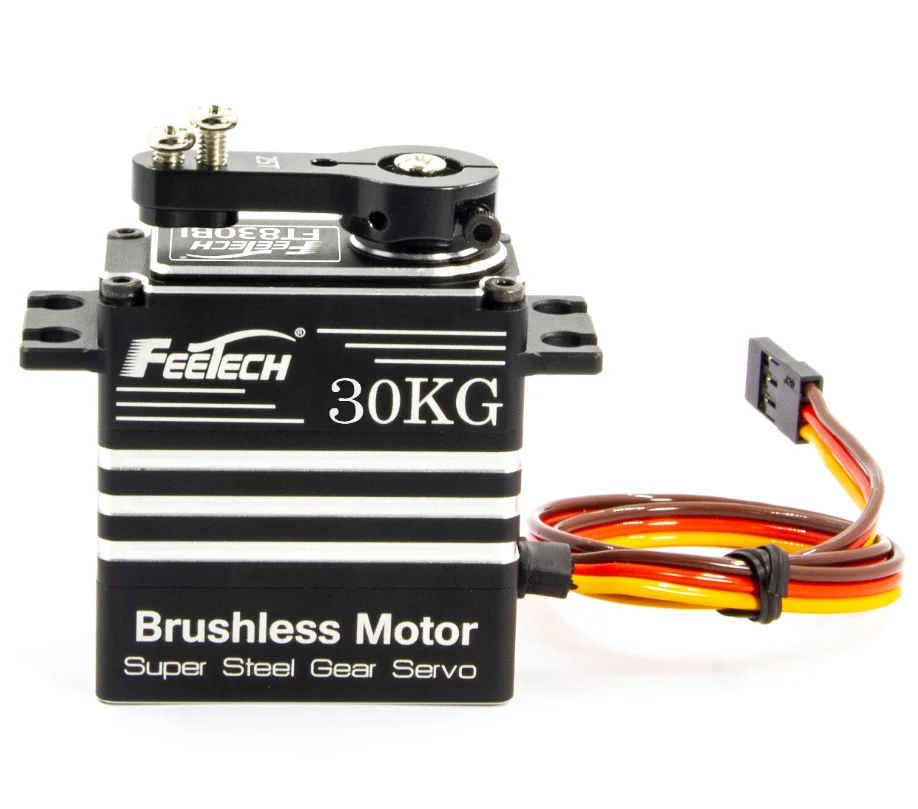

FEETECH FT830BL All-Metal high-torque 8.4V 30kg digital PWM special steering gear splash-proof Brushless Servo for RC Car
Login to view prices
Specification:
Brand: FEETECH
Item Name: FT830BL Servo
Shell Material: Aluminum
Gear Material: Steel
Bearing Type: Ball Bearing
Institutional Limit Angle: Unlimited
Size: 40*20*39mm
Weight: 84.5g
Operating Voltage: 6V~7.4V
No-load Speed: 0.17sec/60°~0.135sec/60°
No-load Current: 160mA~180mA
Stall Torque: 24.5kg.cm-30kg.cm
Stall Current: 3.5A~4.2A
Specified Load: 8.0Kg.cm~10Kg.cm
Rated Current: 1100mA~1400mA
Voltage Range: 4V~8.4V
Kt Constant: 7.5Kg.cm/A
Features:
– Control model is PWM
– Control system type: Digital comparator
– Operating angle: 180°
– Pulse width range: 500~2500μsec
– Electronic protection: locked rotor for 3 seconds (after the steering gear is locked, the output torque will exceed the overload torque and continue to protect the torque after 3 seconds, the overload torque and protection time can be modified)
Package Included:
1x FEETECH FT830BL Servo

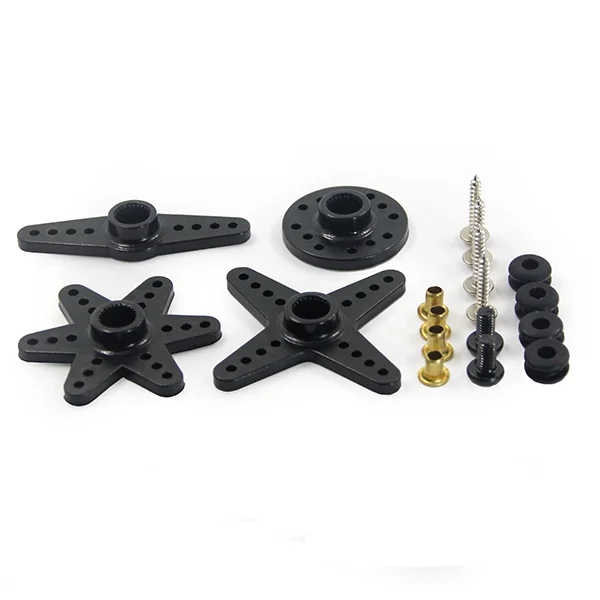

1x Accessories
The digital steering gear has fast response speed, large response area, high positioning accuracy and strong anti-interference ability.
| Weight | 0.3 kg |
|---|---|
| Dimensions | 15 × 15 × 15 cm |
