The FE200T series is transmitted as a 5.8G ISM band analog image transmission. It has stable output power, long transmission distance and strong power supply filtering. It can ensure that the image has no snowflake and no horizontal stripes under the maximum throttle. The picture adopts the flight control OSD (TXD) signal to control the transmission frequency (IRC Tramp), and only needs to connect any TXD (serial port transmission) of the flight control to the RXD (serial port reception) of the picture transmission, and also The function of manual button switching is retained. Support PIT mode tuning.
Specification:
Size: 16.5mm * 16.5mm, mounting hole M1.
Weight: 1.7g
Input voltage: DC 4.5-5.2V
Input current: 200MW = 400 MA
Power switching: third gear 25MW, 100MW, 200MW
Signal channel: 40
Frequency switching: manual button / OSD (IRC Tramp) (simultaneous support)
Antenna interface: IPEX
Dimensions: 16.5MM * 16.5MM
Features:
1. The output power is stable and the transmission distance is long.

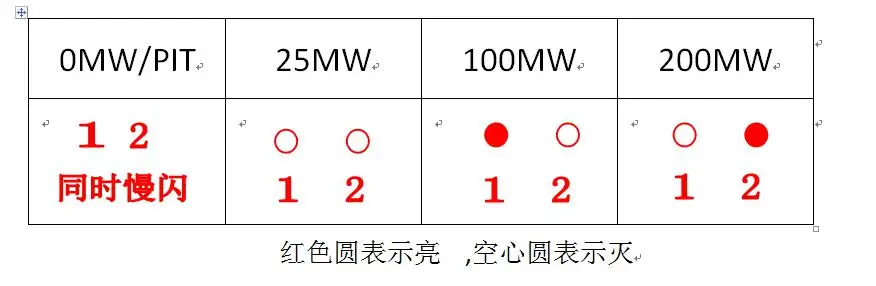

2. Fast 3-speed power switching, independent two red indicators, indicating the current transmitting power of 25/100/200MW.
3. The frequency point uses 4*3 LEDs to display 40 channel values.
4, support OSD remote tuning (IRC Tramp), support PIT mode tuning, can only be opened in the OSD.
5, small size, the antenna uses IPEX interface, reducing the footprint of the PCB board.
GND power supply negative
+5V power supply positive
RXD flight control serial transmission
VIN camera video input
Frequency adjustment:
First, manual adjustment Switch frequency points.
Short press: switch channels, 4 blue LEDs and 3 green LEDs indicate channels.
There are 40 frequency points, and the specific channel frequency refers to the frequency list.
Power switching:
Long press (greater than 2 seconds) power adjustment. Press once to switch the power 25MW, 100MW, 200MW.
The default shipment is 200MW.
OSD Assistant
1. In the PORTS of the flight control, you need to configure the TX port to be used for the OSD adjustment, and the interface needs the interface, as shown in the following figure in UART1.
Select IRC Tramp.
The first step is to properly configure the receiver to ensure that the receiver channels are normal. In the example, the OSD is used for TX1 and the receiver is used for RX6.
Step 2 Put the throttle to the middle position about 50% (THR MID), the direction lever to the far left (YAW LEFT), and the pitch lever to push forward (PITCH UP). Enter the OSD menu
The third step is to switch the VTX channel and transmit power.
On the MAIN page, select the FEATURES item and go to the FEATURES page.
Select the VTX TR option and go to the VTX page.
Select CHANNEL to switch channels and select POWER to switch the transmit power.
Select SET and select YES to make the settings take effect.
Precautions for use
1. Pay attention to the input voltage within the specified range and the positive and negative poles are correct, so as not to damage the internal components;
2. If the antenna is replaced, please select the standing wave and the antenna with good gain to obtain a longer transmission distance;
3. Pay attention to static electricity during transportation and installation;
Package Included:
1PCS X FE200T picture transmission module
4PCS X 100mm line
1PCS X IPEX 5.8G antenna
Product Photo:
