ESC

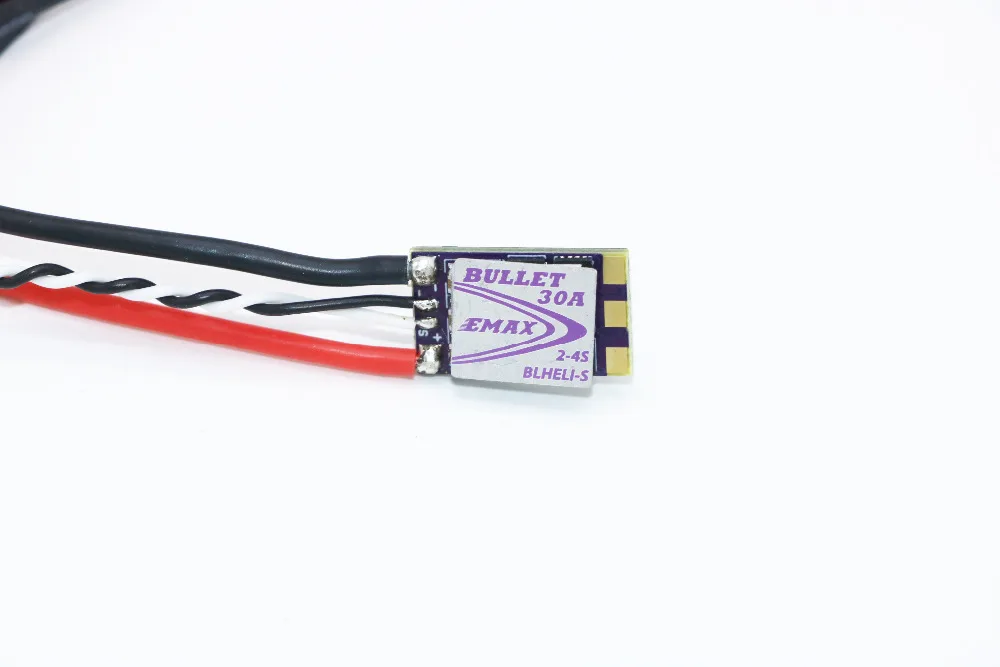

EMAX Bullet BLHeli-S Dshot 6A 12A 15A 20A 30A 35A 35A Electronic Speed Controller
EMAX NEW FPV ESC, brand new Emax bullet series (purple), super-mini, ultra-light ESC, BLHeli-S firmware, support DSHOT, MULTISHOT, ONESHOT42, ONESHOT125.
Login to view prices
Overview:
1. Brand new Bullet Series (purple), super-mini, ultra-light ESC.
2. BLHeli-S firmware/ Supports DSHOT, MULTISHOT, ONESHOT42, ONESHOT125. (Note:35A not support D-shot)
3. New heat sink design both effectively reduces the core temperature, and avoids propeller strike damage.
4. Imported MOS tube, Japanese ceramic capacitors, 3oz High-TG PCB board, significantly reduces electrical heat soak and improves system efficiency.
Features of Emax Bullet Series ESC
- The market’s lightest and smallest ESC, designed specifically for high-level FPV racing.
- Utilizing the latest BLHeli-S firmware (16.5), hardware PWM generates a signal to boost smoother throttle response and reduce noise.
- Supports new digital signal: DSHOT, and analog signals: MULTISHOT, ONESHOT42, ONESHOT125.
- Top quality MOSFET, ceramic capacitors. 3oz high TG PCB board, significantly improves heat dissipation and improves system efficiency.
- New aluminum heat sink, offers protection from propeller strike damage.

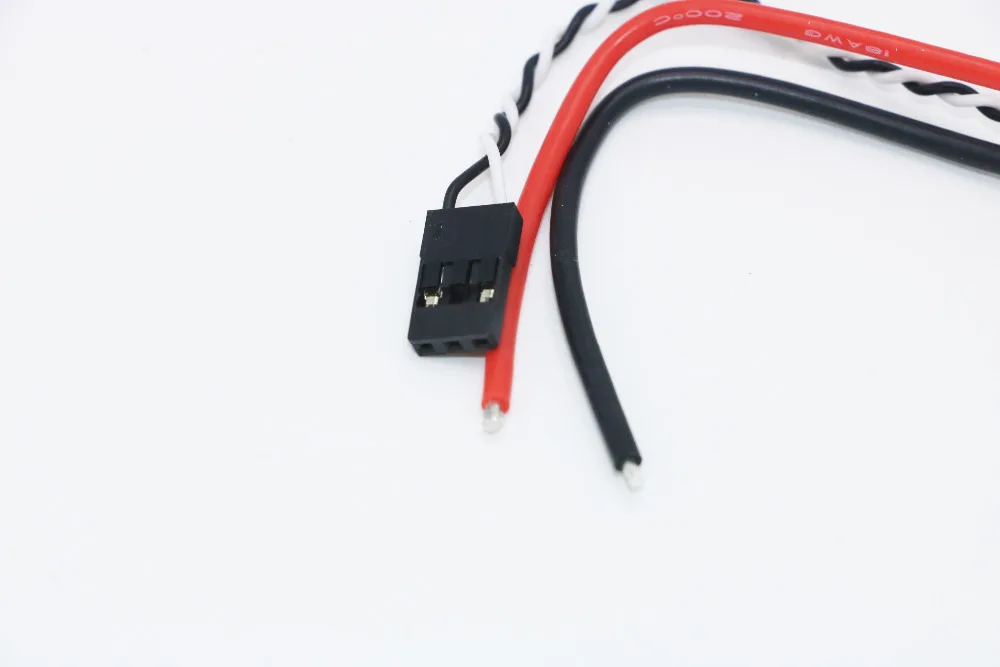

- Features high-temperature silicone signal cable for wire flexibility and ease of installation.
| Item | Continuous Current | Burst Current | Li-xx Battery (cell) | Dimension LxW (mm) | Weight (g) W/O wires | BEC |
| DSHOT BULLET 6A ESC | 6A | 10A | 2S | 9.4×21.5 | 2.1 | NO |
| DSHOT BULLET 12A ESC | 12A | 15A | 2S-4S | 11.0×15.0 | 2.4 | NO |
| DSHOT BULLET 15A ESC | 15A | 25A | 2S-4S | 11.9×19.6 | 3.5 | NO |
| DSHOT BULLET 20A ESC | 20A | 30A | 2S-4S | 11.9×19.6 | 3.5 | NO |
| DSHOT BULLET 30A ESC | 30A | 35A | 2S-4S | 11.9×19.6 | 3.5 | NO |
| BULLET 35A ESC | 35A | 40A | 3S-6S | 14.4×29.0 | 6.3 | NO |
Specifications
- Brand: Emax
- Item name: Bullet Series 30A BLHELI_S ESC
- Model: EMX-SC-1774
- Con.Current: 30A
- Input Voltage: 2-4S
Click here to read review of the Emax Bullet series ESC from Oscar Liang. Check our our ESC collection here.
| Current | Bullet 6A, Bullet 12A, Bullet15A, Bullet 20A, Bullet 30A, Bullet 35A, Bullet 35A PRO |
|---|
