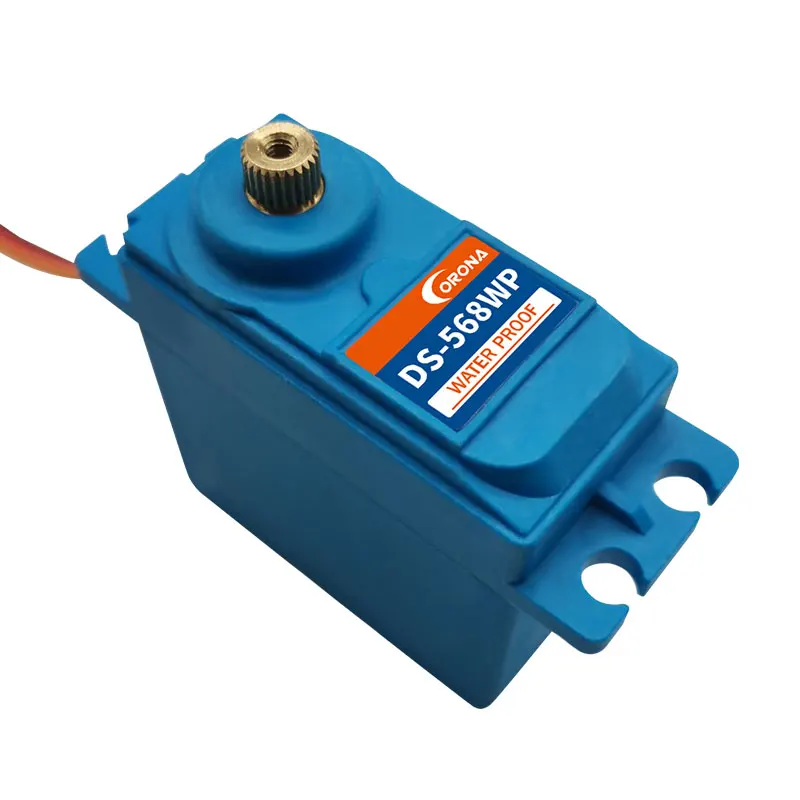

CORONA DS568WP High-power metal gear steering gear Waterproof servo for rc boat helicopter


Login to view prices

Features
Ÿ Bidirectional rotation
Ÿ Accepts four mounting screws
Ÿ Easy to interface with any  microcontroller or PWM-capable device
Ÿ Weighs only 70g
Ÿ 20kg.cm torque @ 7.4 V
Waterproof level : IPX 7

Key Specifications
Ÿ Power requirements: 4.8 to7.4 VDC; Maximum current draw 300 +/- 50 mA at 7.4 VDC when operating in no load conditions, 15 mA when in static state
Ÿ Communication: pulse-width modulation
Ÿ Dimensions: approx 41.6×20.8×44.2mm
Ÿ Operating temperature range : -20℃-+60℃
Ÿ Operating Voltage :4.8V-7.4V
Ÿ Operating Current :300mA / 400mA
Ÿ Operateing speed :0.22sec.60º/ 0.18sec.60º
Ÿ   Dead band :≤3uSec
Ÿ Operating speed :40º/one side pulse traveling 400us
Ÿ Potentiometer:5 slider/Indirect Drive
Ÿ Gear :Metal
Ÿ Connector wire length:215mm

SKU: BS053-003 Categories: ,
Weight 0.1 kg
