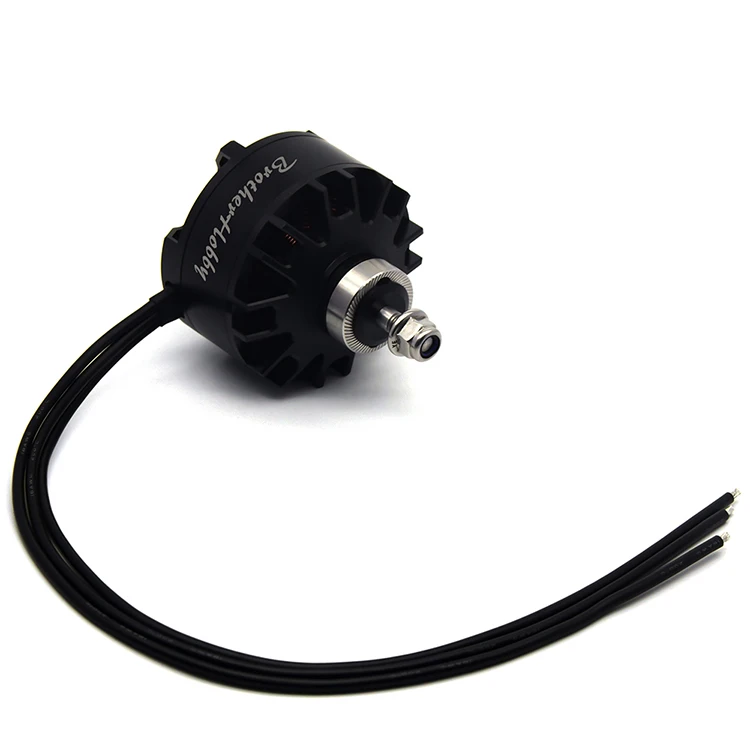

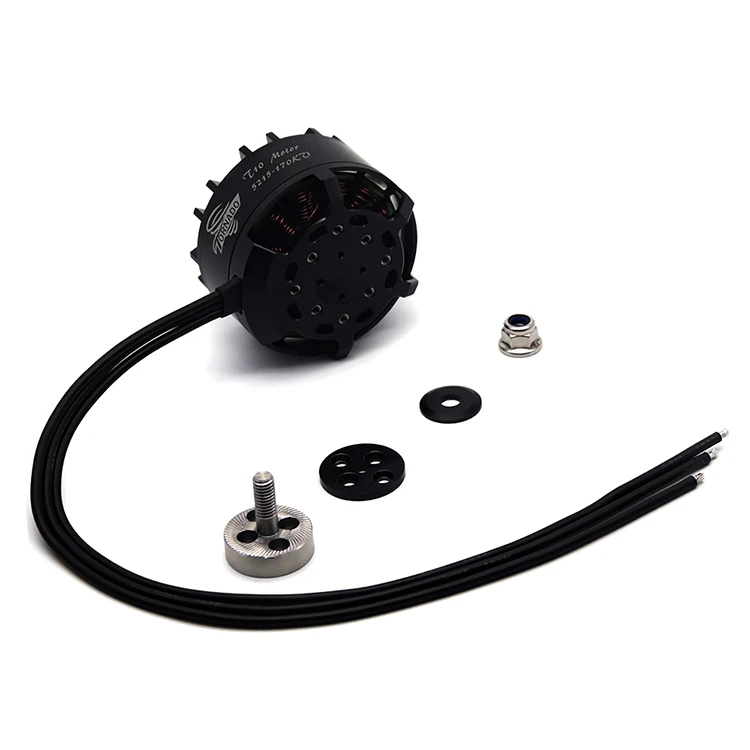

Brotherhobby Tornado T10 5215 PRO 170KV 330KV 380KV 500KV 6-12S X-CLASS Brushless Motor for FPV Racing X-Class Multirotor Cineli
Login to view prices
Specifications
KV: 170KV/330KV/380KV/500KV
Base casing: Al 7075Stator: 0.2mm Kawasaki silicon steel
Configuration: 12N14P
Prop Adapter Shaft Thread: M6
No.of Cells(Lipo): 6S-12S
Bolt Pattern: M3 (25X25mm);M3(30X30mm)
Bearings: Φ15*Φ6*5
Rotor: N52H arc Magnet
Weight: 339g with 90cm SR wires
Wire AWG: 16# 900mm Length
Bell cap: AI 7075
| Weight | 0.5 kg |
|---|---|
| Dimensions | 10 × 10 × 10 cm |
| Motor KV | 170kv, 330kv, 380KV, 500kv |
