Specification.
Adapted to DJI V1 V2 FPV glasses

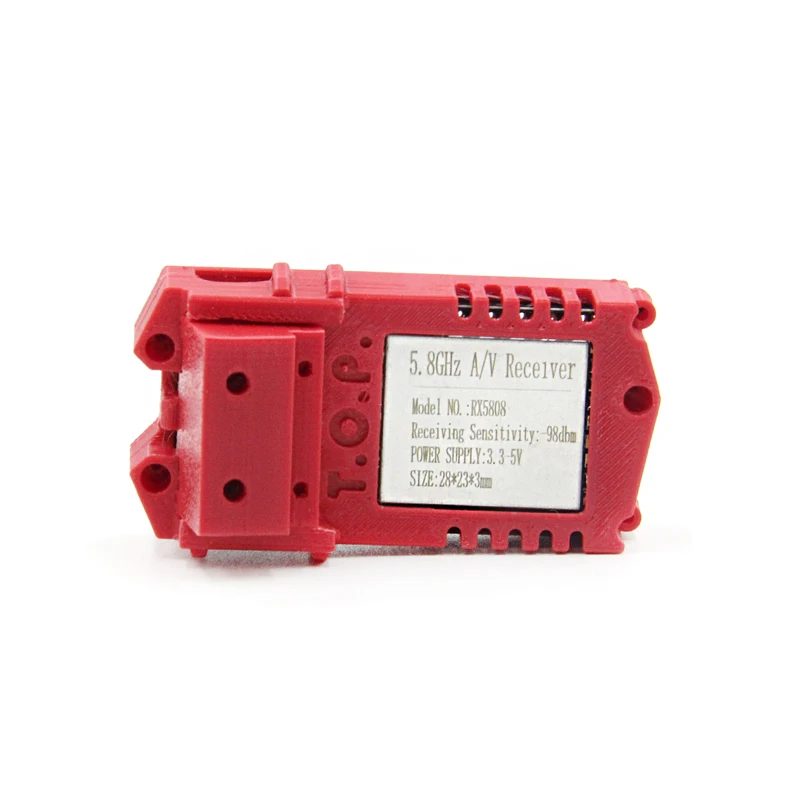

Hardware configuration: ESP 32 microcontroller + 0.96 inch TFT LCD + 5-way button + RF the same model -98dbm receiver module + buzzer
Dual antenna working mode: based on the module rssi value, do video end switching
Interface: based on LVGL Chinese and English bilingual interface
OSD interface: support
Frequency:5.8GHz 48CH(A,B,E,F,R,L)
Power:2S-6S input
Weight: 23g
Size: 56*29*15mm
Package.
1X STARFISH D1 Receiver
1X power cable (black)
1X Signal cable(red)
