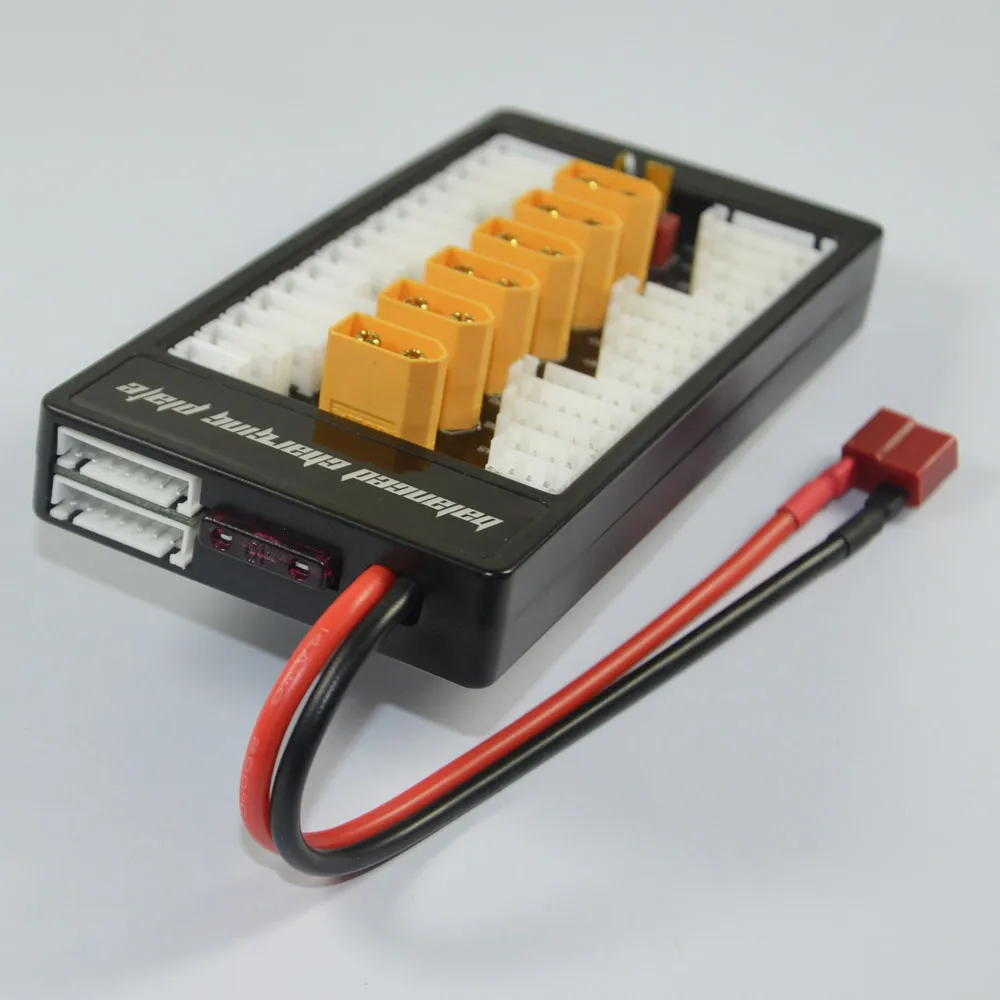

HotRc hot rc XT60 Parallel Charging Adapter Board 2-6s Lipo Batteries Charger Plate For Imax B6 B6AC


Login to view prices

Features:
-XT60 charging board is used to connect and charge 1 to 6 batteries in parallel ( including the Li-Po, Li-Fe and Lion ).
-Protect the charging batteries when short circuit happens.
-Support combined use for three parallel charging boards.
-With 20Z-thick copper foil, so it can withstand continual current of 80A
-Prevent each cell overcharge, so it can improve the balance efficiency.
-Consume only 1/6 of the time when charging six batteries separately, so it can save the total charging time.
-Avoid the trouble of replacing batteries repeatedly.

Use Steps:
Connect the both sides of a balance cable respectively to the balance port of the balance charger and parallel charging board.
Connect the power port of Parallel Charging Board to the output port of balance charger.
Connect batteries to the board. Plug the balance heads firstly, and then connect them to the batteries’ outputs. Set the charging voltage (Charging a single battery is the same) and current.
Size: 6.7×13.8×1.7cm.

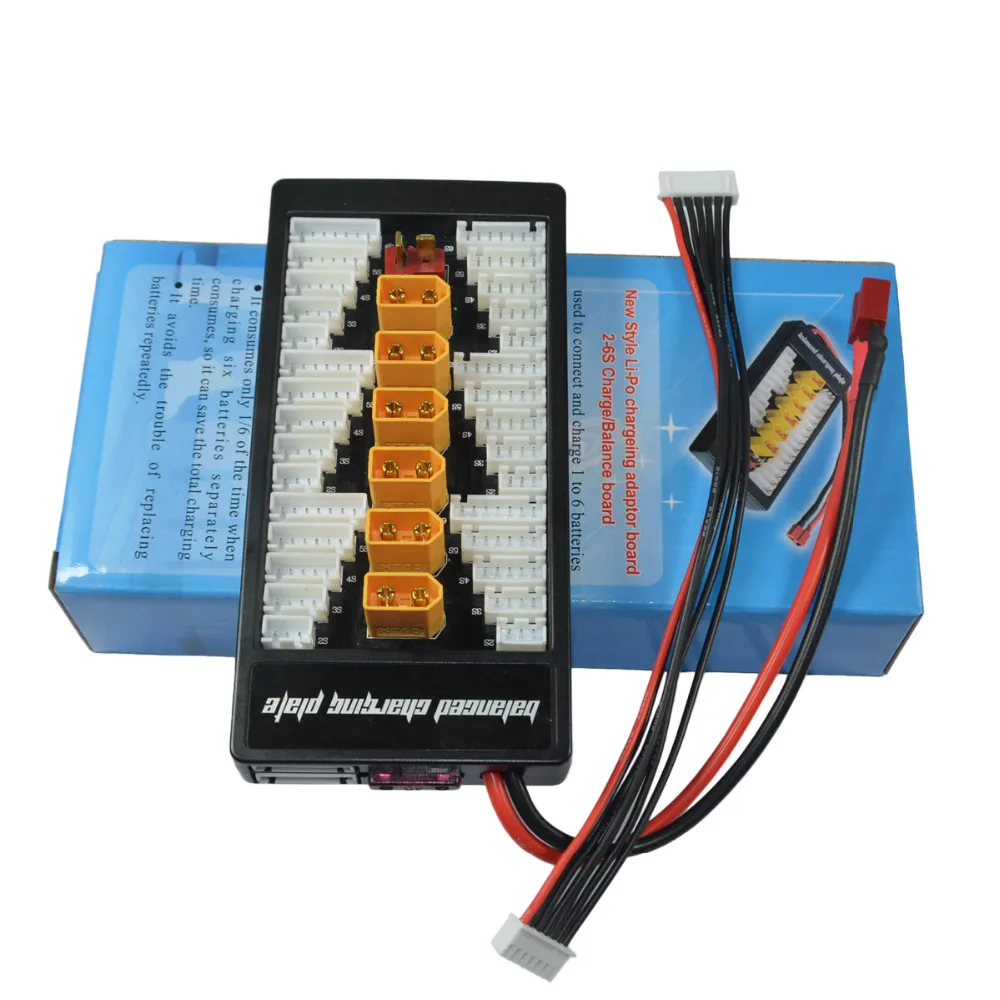

Package list:

1 x Charging board

1 x pin cord

1 x manual

1 x retail box

xt60-charging-board-adapter-01XT60-Charging-board-2xt60-plug-board-2xt60-plug-board-04xt60-plug-board-3
