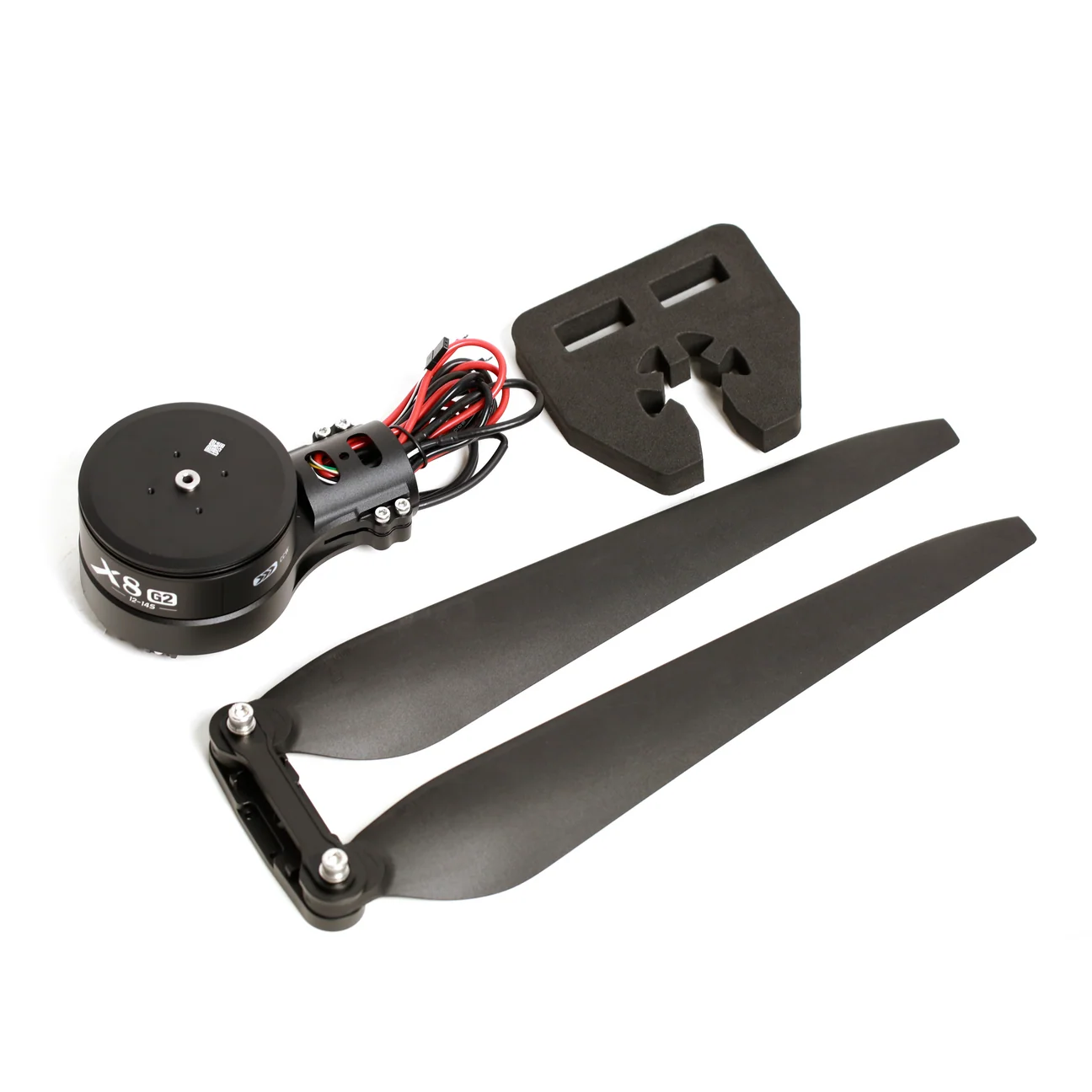

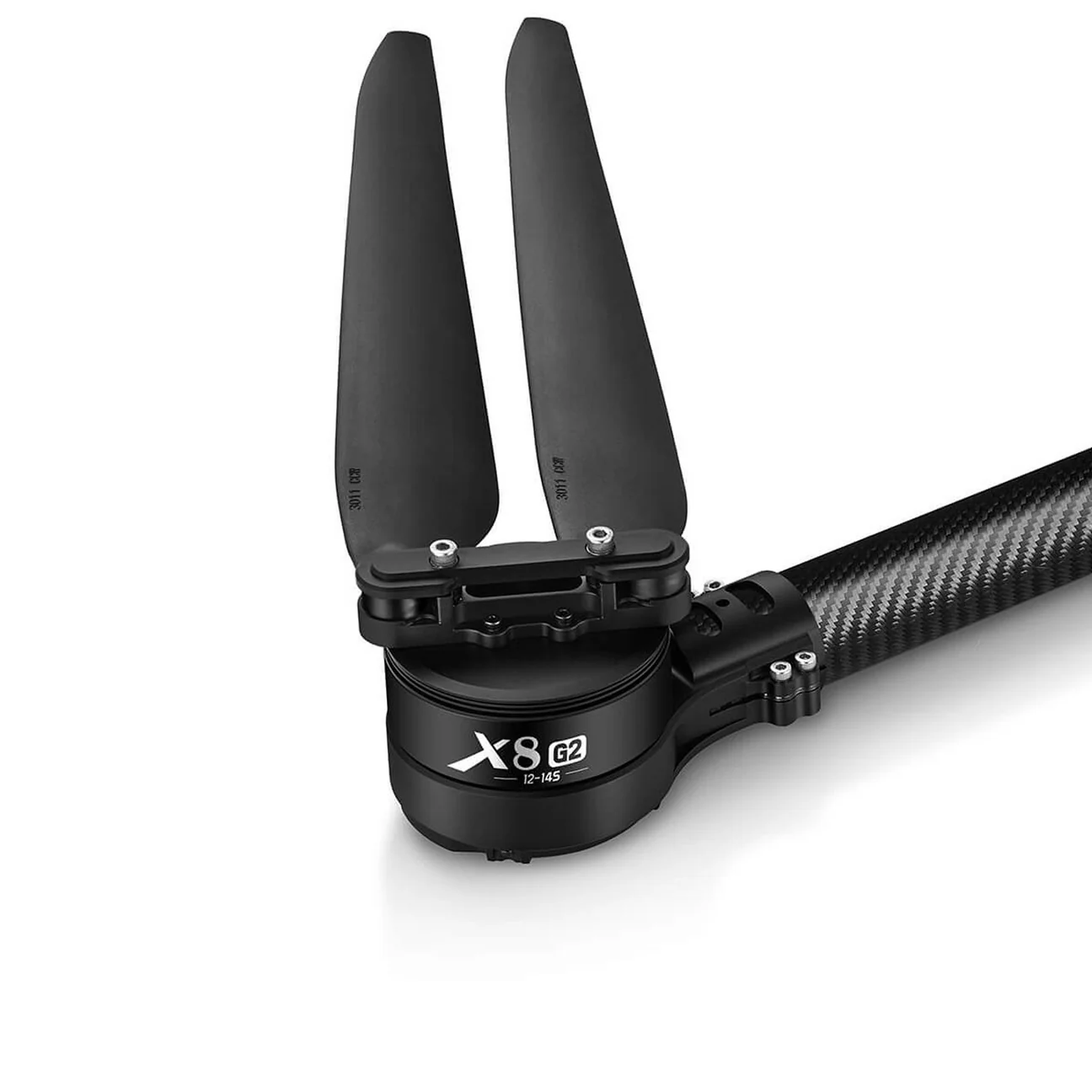

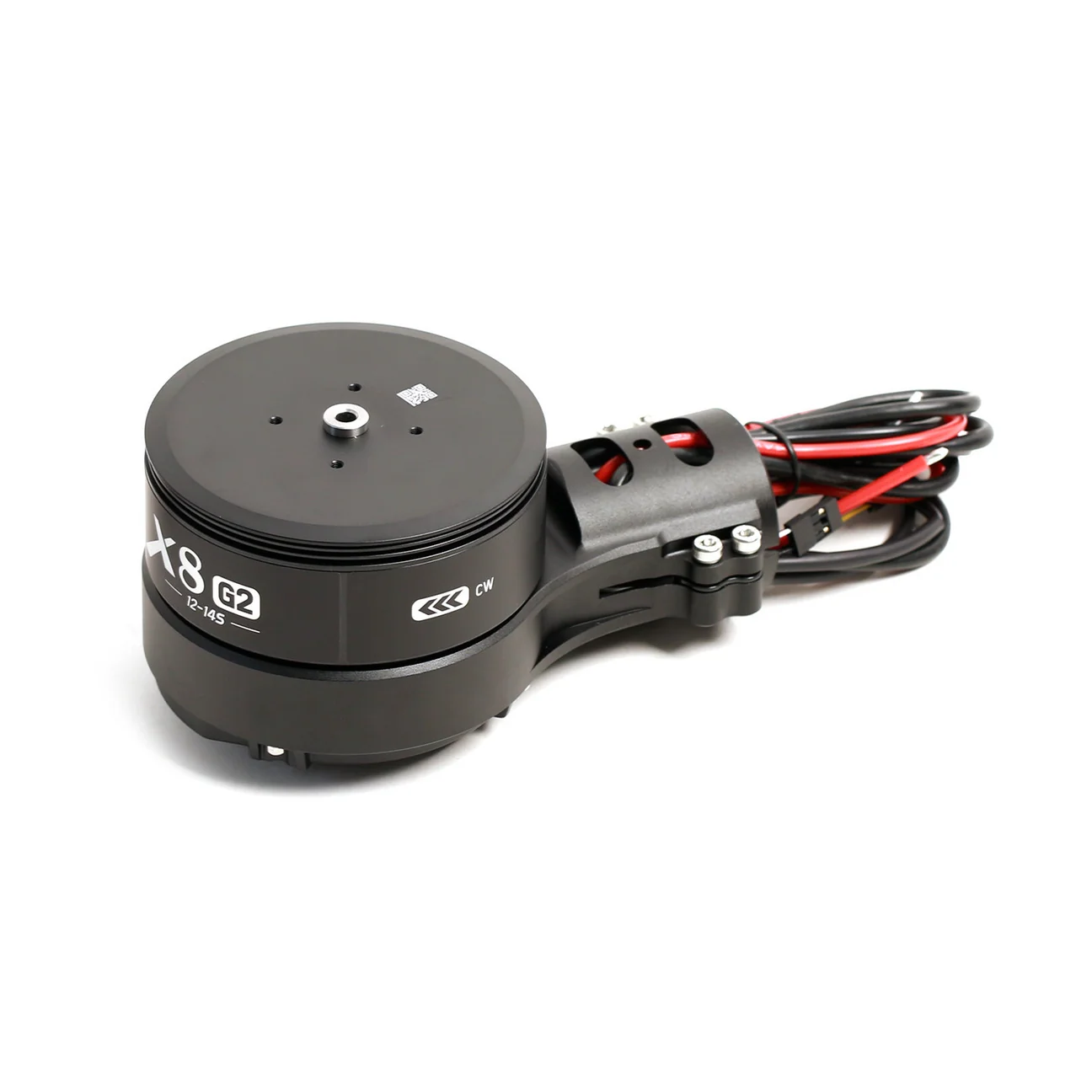

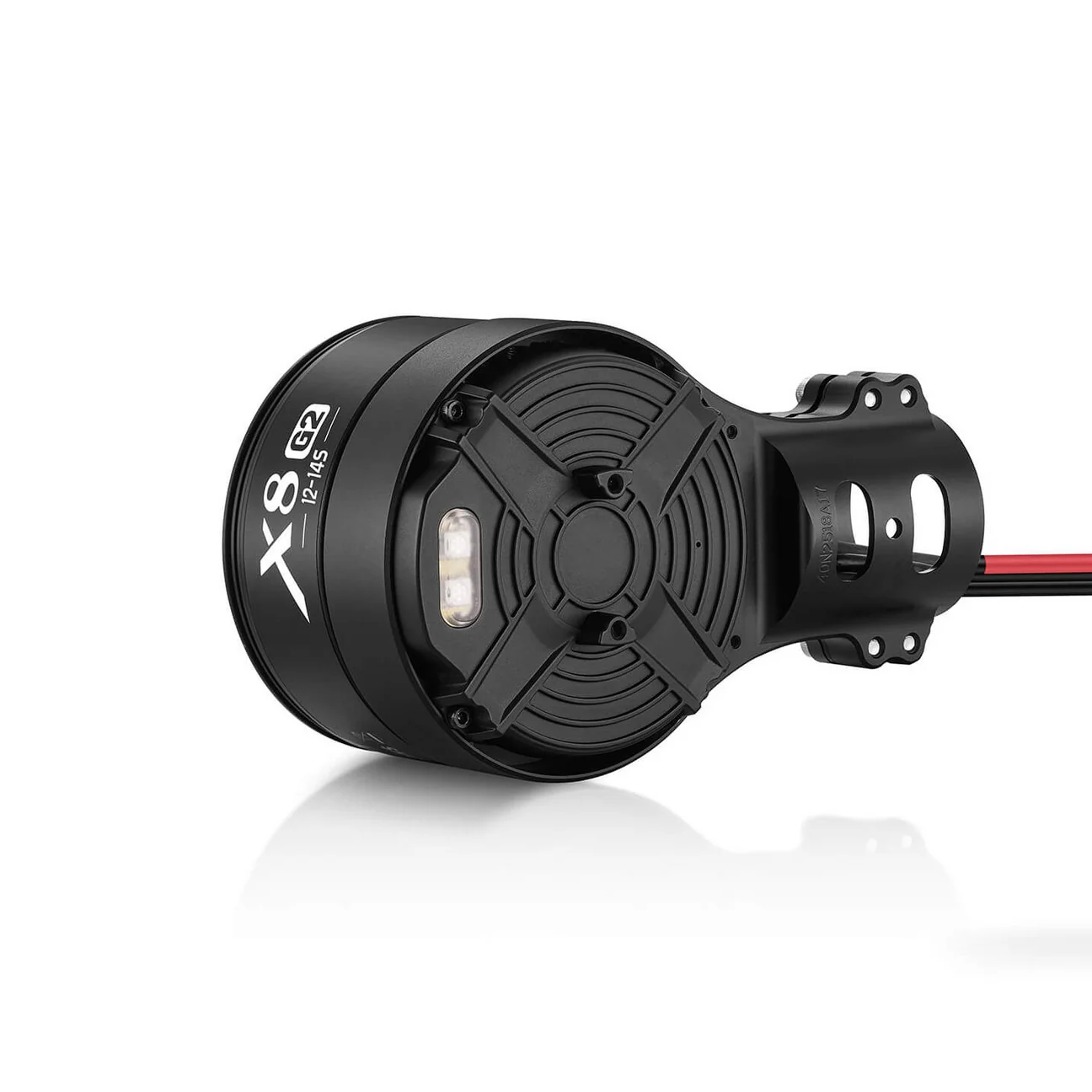

Hobbywing X8 Power System G2 Integrated Motor System
Estimate delivery times: 3-5 days International.
Free Shipping: On all orders over $499.
Couldn't load pickup availability
Description
Shipping and Returns
Return Policies
Pairs well with
-
- Model
- Max thrust
- Recommended takeoff weight per axis
- Efficiency of recommended takeoff weight
- Compatible lithium battery
- Rated voltage
- Input voltage
- Tube outer diameter
- Weight（with cable and Props）
- Cable specification
- Operating temperature
- Ingress Protection
- Rated output power (Max continuous)
- Pinout
- DataLink Version
-
- X8 G2
- 17.5 kg (Sea level)
- 5~7.5kg (Sea level)
- 9.7~8.4 g/W
- 12S~14S（LiPo）
- 14S-54V / 12S-46V
- 18~63 V
- D35 / D40mm
- 1095 g*
- Power cable: 14AWG 905 mm* Signal cable: 915 mm*
- -20~50℃
- IPX6
- 810 W
- Black-GND, White-PWM & Yellowe-GND, Gray-CH, Green-CL
- DataLinkBox G3
-
- Model
- Communication protocol
- Peak current （3 seconds）
- Continuous current
- Throttle travel calibration
- Double throttle signal
- Operating pulse width
- Failure storage & Log
-
- 80A-FOC
- Cyphal（UAVCAN）
- 80A（3s）
- 20 A
- Nonsupport
- PWM + CAN
- 1050~1950 μs
- Supported
-
- Model
- Slot& Pole
- Stator diameter
- Motor diameter
-
- 8120-100KV
- 36N40P
- 81*20 mm
- 88.6 mm
-
- Model
- Total Weight
- Material of blades
- Single blade weight
-

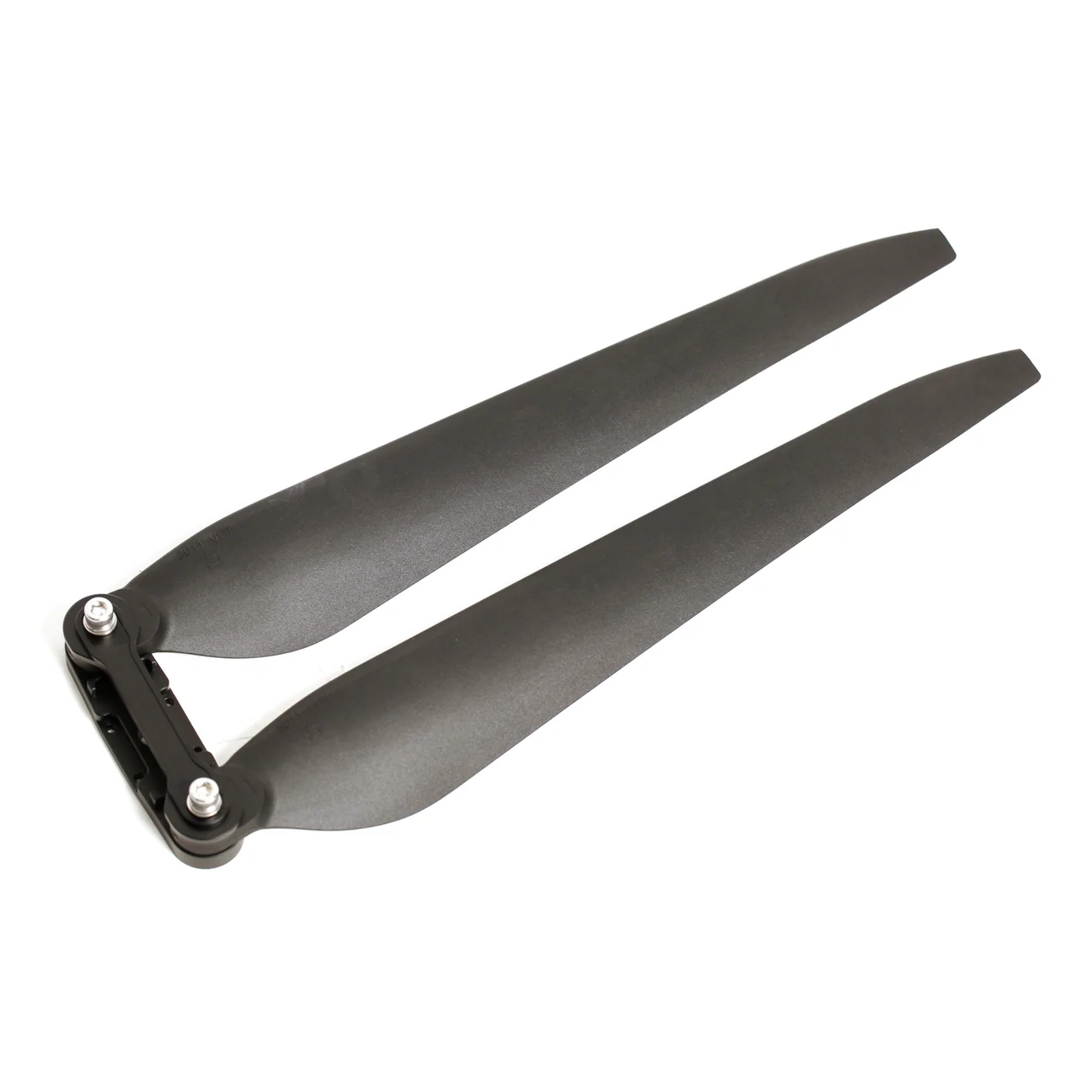

- MFP 30x11S (Folding propeller)
- 193 g*
- Carbon fiber reinforced plastics
- 54.5 g*
-
- Model
- Total Weight
- Material of blades
- Single blade weight
-
- MFP 30x11 (Folding propeller)
- 188 g*
- Carbon fibre-reinforced nylon composite material
- 51.6 g*
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
46V(12S LiPo) |
MFP 30x11S / MFP 30x11 |
35% |
2021 |
3.5 |
161.2 |
1571 |
12.5 |
0.74 |
121.7 |
/ |
|
39% |
2472 |
4.4 |
204.0 |
1721 |
12.1 |
0.89 |
160.4 |
|||
|
42% |
2968 |
5.6 |
256.5 |
1877 |
11.6 |
1.06 |
208.3 |
|||
|
45% |
3493 |
6.9 |
317.3 |
2032 |
11.0 |
1.24 |
263.8 |
|||
|
48% |
3999 |
8.3 |
380.4 |
2171 |
10.5 |
1.41 |
320.5 |
|||
|
51% |
4476 |
9.6 |
443.5 |
2294 |
10.1 |
1.58 |
379.5 |
|||
|
54% |
4994 |
11.2 |
515.8 |
2419 |
9.7 |
1.76 |
445.8 |
|||
|
57% |
5456 |
12.7 |
583.9 |
2524 |
9.3 |
1.92 |
507.4 |
|||
|
60% |
6043 |
14.6 |
674.2 |
2650 |
9.0 |
2.12 |
588.3 |
|||
|
63% |
6452 |
16.1 |
740.0 |
2733 |
8.7 |
2.26 |
646.8 |
|||
|
66% |
6977 |
18.0 |
828.9 |
2836 |
8.4 |
2.45 |
727.6 |
|||
|
69% |
7951 |
21.8 |
1004.4 |
3017 |
7.9 |
2.79 |
881.4 |
|||
|
72% |
8500 |
24.1 |
1110.3 |
3115 |
7.7 |
2.99 |
975.3 |
|||
|
75% |
9050 |
26.5 |
1221.7 |
3212 |
7.4 |
3.18 |
1069.5 |
|||
|
78% |
10034 |
31.2 |
1434.5 |
3384 |
7.0 |
3.55 |
1257.9 |
|||
|
81% |
10467 |
33.3 |
1533.5 |
3459 |
6.8 |
3.71 |
1343.8 |
|||
|
84% |
11007 |
36.1 |
1660.6 |
3553 |
6.6 |
3.92 |
1458.4 |
|||
|
87% |
11548 |
38.9 |
1792.3 |
3646 |
6.4 |
4.13 |
1576.8 |
|||
|
90% |
12542 |
44.4 |
2042.8 |
3813 |
6.1 |
4.51 |
1800.7 |
|||
|
100% |
15006 |
57.7 |
2658.5 |
4132 |
5.6 |
5.35 |
2314.8 |
|
Voltage(V) |
Propeller |
Throttle(%) |
Thrust(g) |
Current(A) |
Power Input(W) |
Speed(RPM) |
Efficiency(g/W) |
Torque(N·m) |
Power Output(W) |
Temperature(℃) |
|---|---|---|---|---|---|---|---|---|---|---|
|
54V(14S LiPo) |
MFP 30x11S / MFP 30x11 |
35% |
4459 |
8.4 |
451.4 |
2250 |
9.9 |
1.58 |
372.3 |
/ |
|
39% |
4965 |
9.7 |
524.4 |
2371 |
9.5 |
1.75 |
434.5 |
|||
|
42% |
6007 |
12.7 |
688.6 |
2602 |
8.7 |
2.12 |
577.6 |
|||
|
45% |
6450 |
14.1 |
763.2 |
2694 |
8.5 |
2.28 |
643.2 |
|||
|
48% |
7031 |
16.0 |
864.8 |
2810 |
8.1 |
2.48 |
729.7 |
|||
|
51% |
8026 |
19.4 |
1048.4 |
2995 |
7.7 |
2.83 |
887.5 |
|||
|
54% |
8552 |
21.3 |
1149.4 |
3088 |
7.4 |
3.02 |
976.5 |
|||
|
57% |
9509 |
24.8 |
1342.4 |
3248 |
7.1 |
3.35 |
1139.4 |
|||
|
60% |
10495 |
28.7 |
1552.8 |
3403 |
6.8 |
3.70 |
1318.4 |
|||
|
63% |
11062 |
31.1 |
1680.3 |
3489 |
6.6 |
3.89 |
1421.2 |
|||
|
66% |
12045 |
35.4 |
1912.8 |
3633 |
6.3 |
4.24 |
1613.0 |
|||
|
69% |
12992 |
39.9 |
2152.8 |
3766 |
6.0 |
4.57 |
1802.2 |
|||
|
72% |
13506 |
42.4 |
2290.0 |
3836 |
5.9 |
4.76 |
1912.0 |
|||
|
75% |
14456 |
47.3 |
2555.3 |
3962 |
5.7 |
5.10 |
2115.8 |
|||
|
78% |
14984 |
50.2 |
2710.3 |
4031 |
5.5 |
5.29 |
2232.9 |
|||
|
81% |
15544 |
53.3 |
2879.3 |
4101 |
5.4 |
5.49 |
2357.5 |
|||
|
84% |
16017 |
56.0 |
3025.6 |
4160 |
5.3 |
5.67 |
2469.9 |
|||
|
87% |
16518 |
59.0 |
3184.3 |
4219 |
5.2 |
5.85 |
2584.4 |
|||
|
90% |
17005 |
61.9 |
3340.3 |
4276 |
5.1 |
6.02 |
2695.6 |
|||
|
100% |
17464 |
64.7 |
3489.8 |
4326 |
5.0 |
6.18 |
2799.4 |
