Specification:

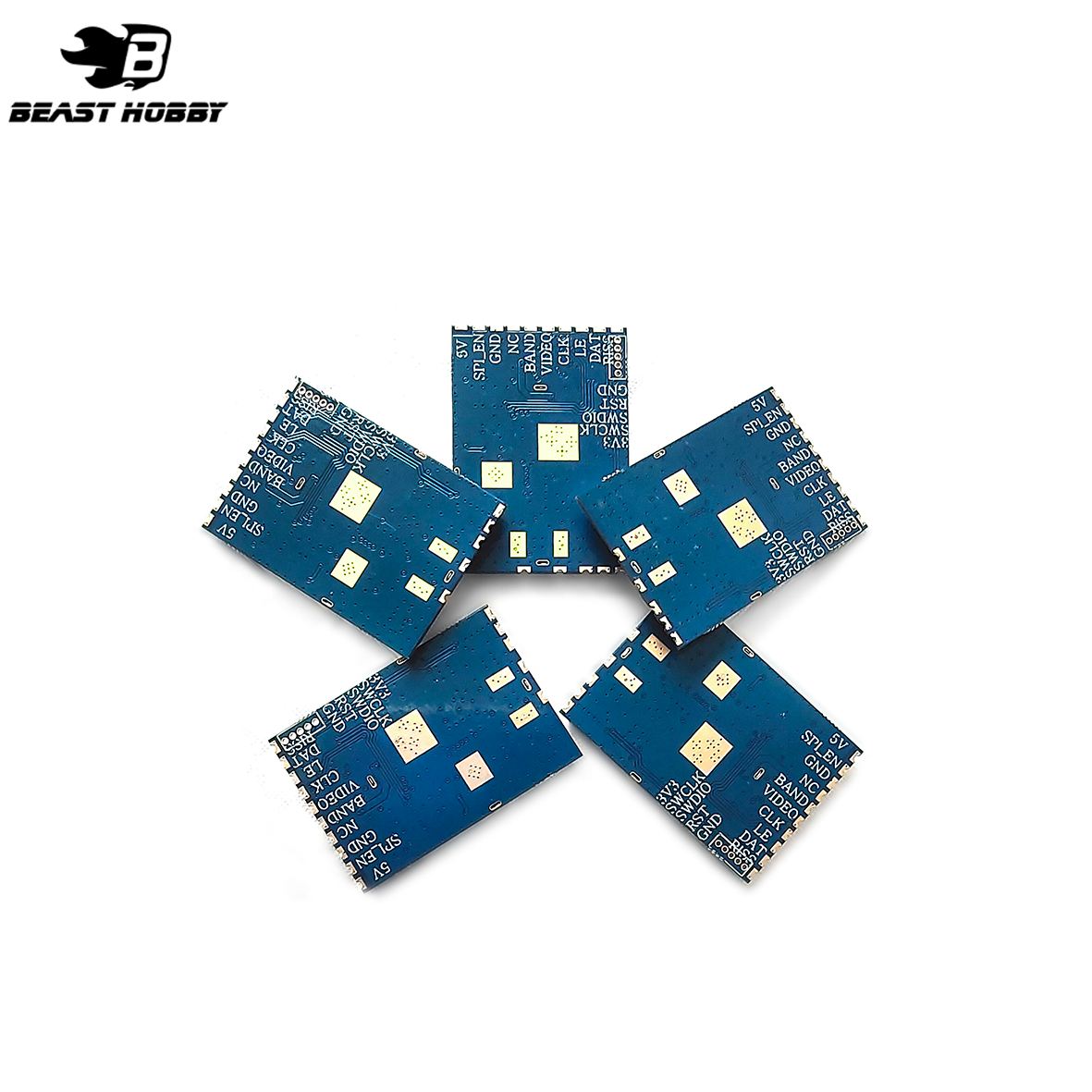

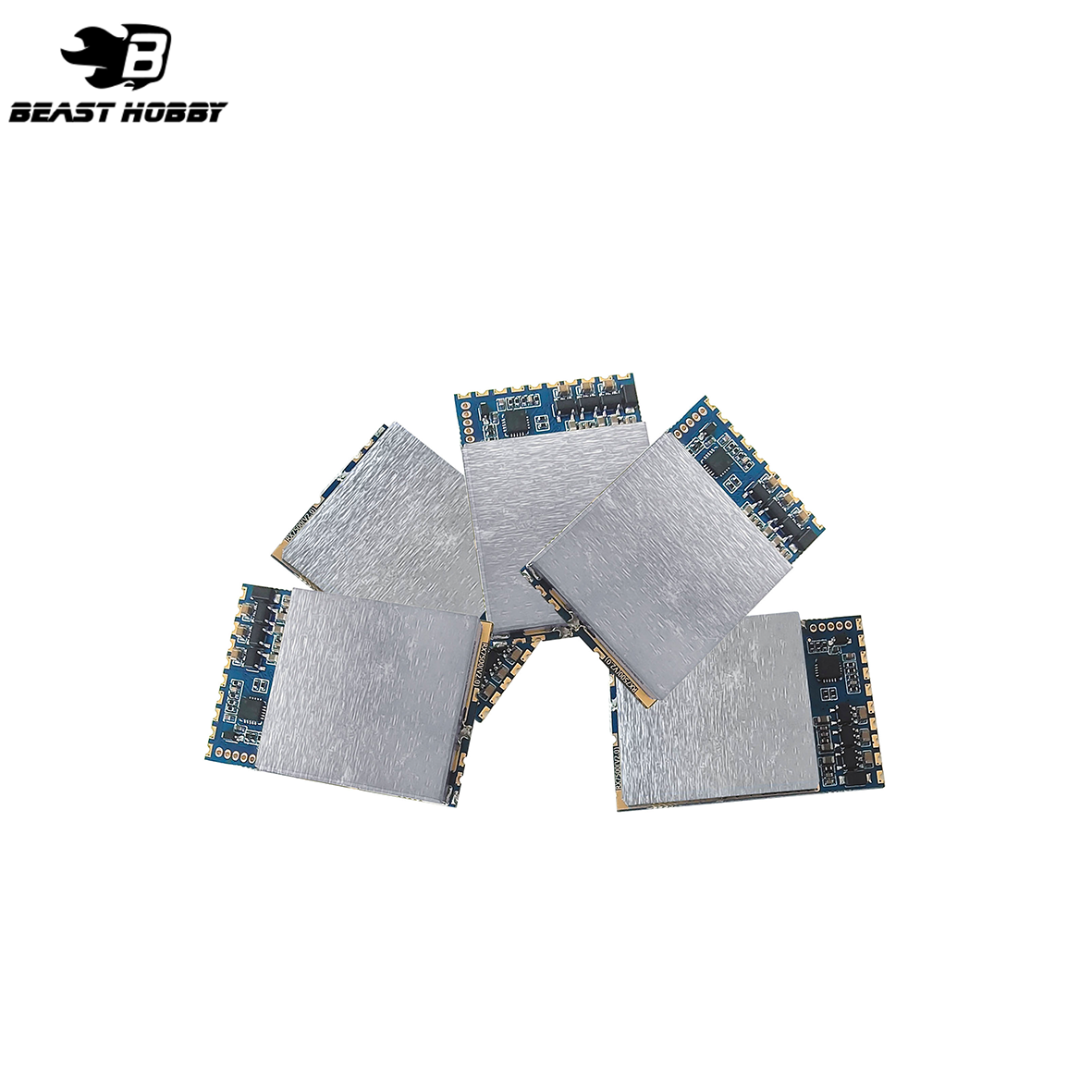

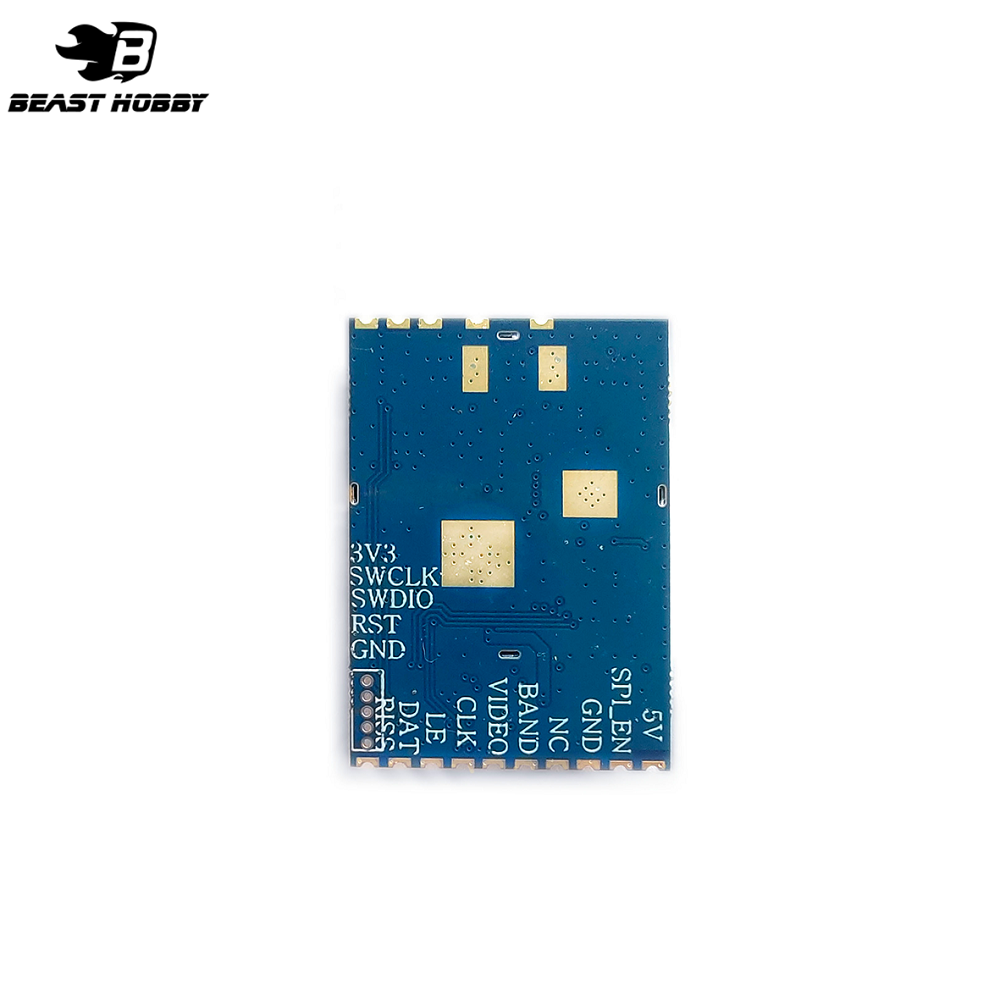

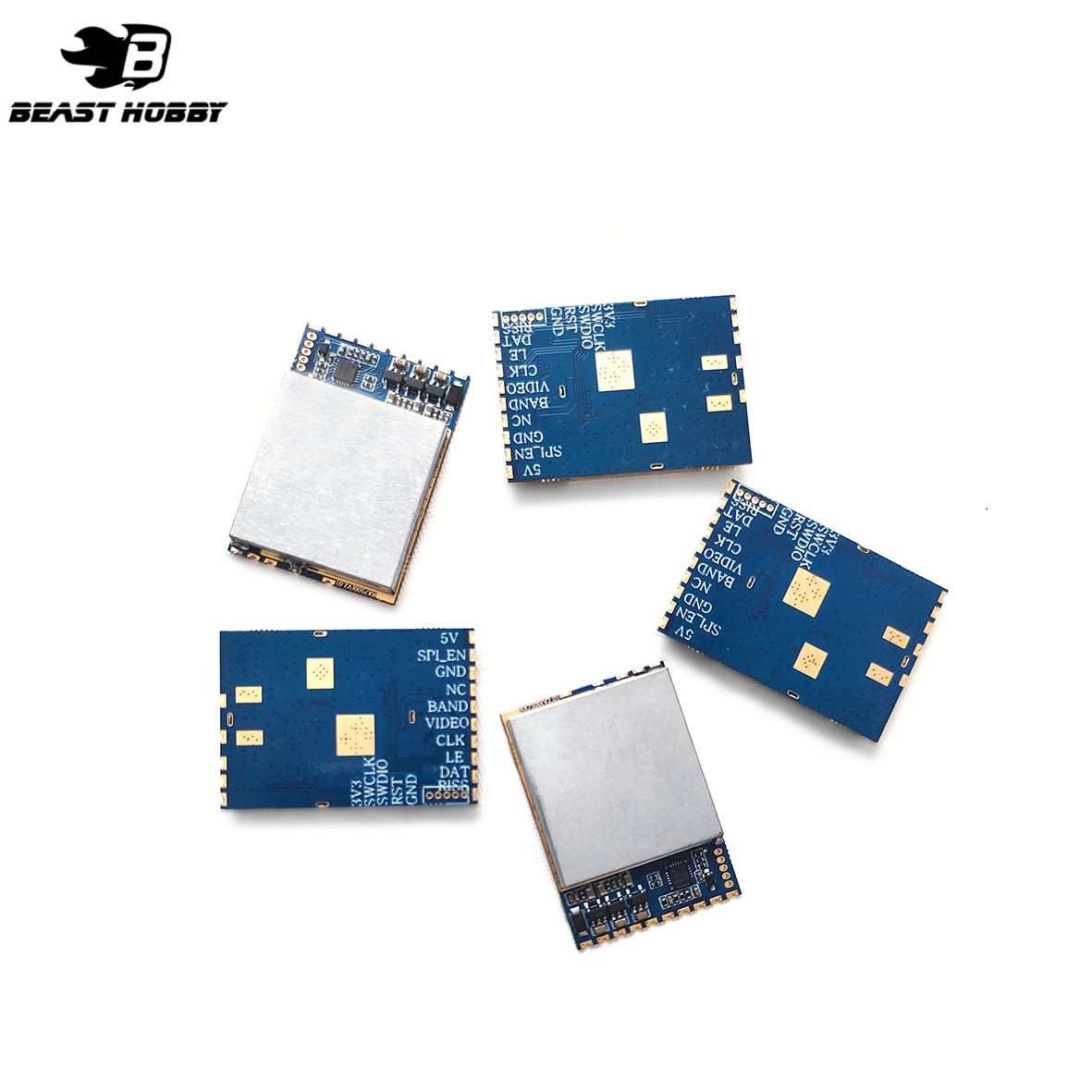

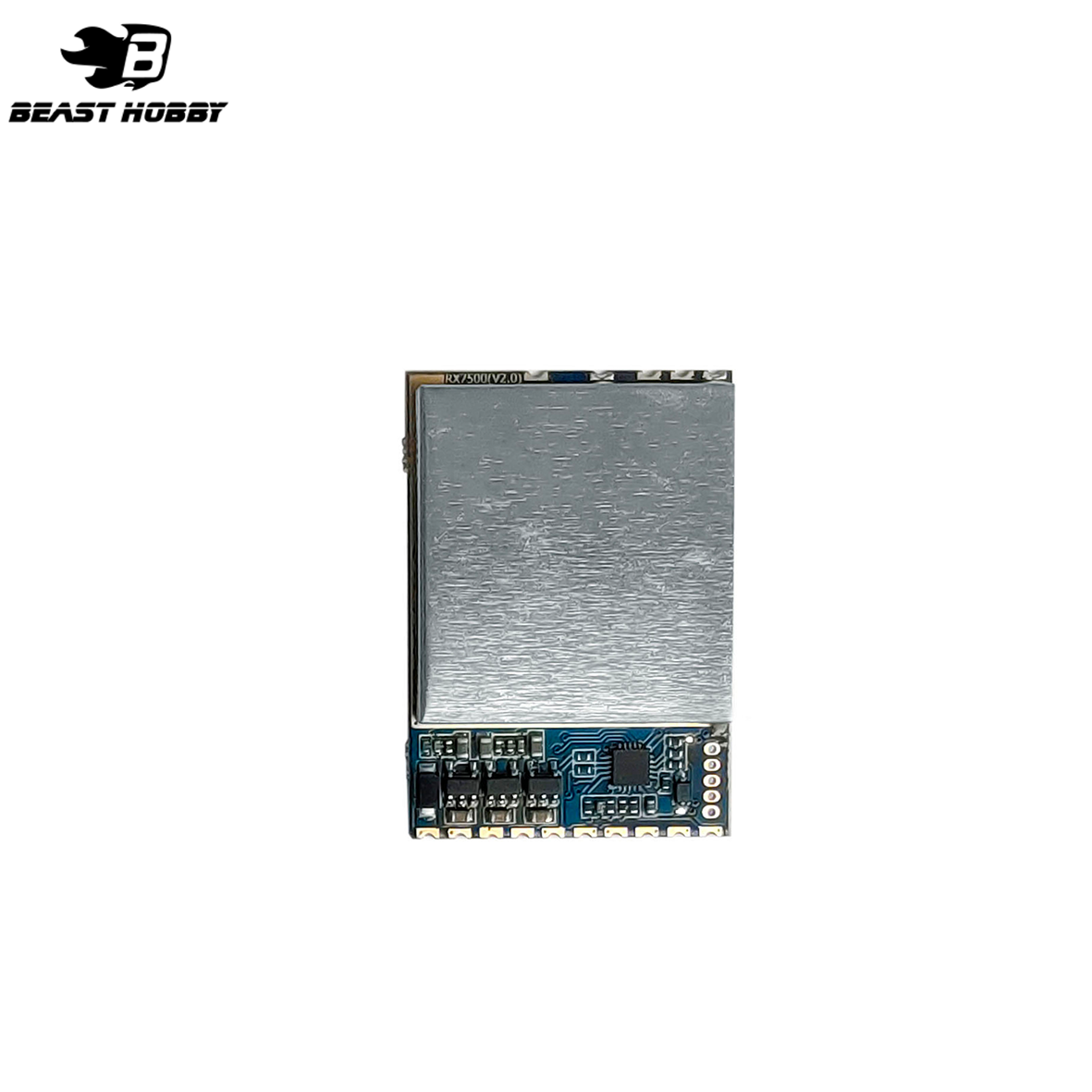

- Item name: 7.2GHz video receiver module
- Item model: RX7500
- Size: 37x26.3x3.7mm (1.46x1.02x0.15inch)
- Power supply: 5.0V
- Current consumption: 390mA Max
- Operating temperature: -10~+65℃
- Storing temperature: -30~+85℃
- Operating humidity: 85%RH
- Receiving frequency range: 6000~7500MHz
- Voltage standing wave ratio: 2:1
- Demodulation system: FM/PLL
- IF (Intermediate Frequency): 5400MHz
- ANT. input impedance: 50Ω, Typ.
- LO frequency stabilization: ±200kHz
- LO frequency precision: ±200kHz
- LO control: PLL
- Input LO leak: -65dBm
- Receiving sensitivity: -95dBm
- Input level range: -95 dBm ~ +5 dBm
- Video output impedance: 75Ω, Typ.
- Video output level: 1Vp-p, Typ.
- Video polarity: NEGATIVE
- Video frequency response: ±5 dB, Max. 50Hz ~ 6MHz
- Differential gain: ±5 %, Max
- Differential phase: ±5 Deg., Max
- 3dB IF Wideband: 16.5MHz
- Signal-to-Noise Ratio (S/N): 30dB, Min
- RSSI Output Voltage (-30dBm~-90dBm): 1.2~0.6V(The stronger the signal strength, the higher the output voltage; the weaker the signal strength, the lower it is.)
The dip switch supports 16 frequency points (16 Channels), which are categorized into Band A and Band B, with corresponding parameter settings for each channel as follows:
- For Band A:
CH1 corresponds to a frequency of 6150 MHz; paired with the settings: L/CH1 = 0, C/CH2 = 0, D/CH3 = 0, BAND = 1, SPI/EN = 0
CH2 corresponds to a frequency of 6250 MHz; paired with the settings: L/CH1 = 1, C/CH2 = 0, D/CH3 = 0, BAND = 1, SPI/EN = 0
CH3 corresponds to a frequency of 6350 MHz; paired with the settings: L/CH1 = 0, C/CH2 = 1, D/CH3 = 0, BAND = 1, SPI/EN = 0
CH4 corresponds to a frequency of 6450 MHz; paired with the settings: L/CH1 = 1, C/CH2 = 1, D/CH3 = 0, BAND = 1, SPI/EN = 0
CH5 corresponds to a frequency of 6550 MHz; paired with the settings: L/CH1 = 0, C/CH2 = 0, D/CH3 = 1, BAND = 1, SPI/EN = 0
CH6 corresponds to a frequency of 6650 MHz; paired with the settings: L/CH1 = 1, C/CH2 = 0, D/CH3 = 1, BAND = 1, SPI/EN = 0
CH7 corresponds to a frequency of 6750 MHz; paired with the settings: L/CH1 = 0, C/CH2 = 1, D/CH3 = 1, BAND = 1, SPI/EN = 0
CH8 corresponds to a frequency of 6850 MHz; paired with the settings: L/CH1 = 1, C/CH2 = 1, D/CH3 = 1, BAND = 1, SPI/EN = 0
- For Band B:
CH1 corresponds to a frequency of 6950 MHz; paired with the settings: L/CH1 = 0, C/CH2 = 0, D/CH3 = 0, BAND = 0, SPI/EN = 0
CH2 corresponds to a frequency of 7010 MHz; paired with the settings: L/CH1 = 1, C/CH2 = 0, D/CH3 = 0, BAND = 0, SPI/EN = 0
CH3 corresponds to a frequency of 7050 MHz; paired with the settings: L/CH1 = 0, C/CH2 = 1, D/CH3 = 0, BAND = 0, SPI/EN = 0
CH4 corresponds to a frequency of 7070 MHz; paired with the settings: L/CH1 = 1, C/CH2 = 1, D/CH3 = 0, BAND = 0, SPI/EN = 0
CH5 corresponds to a frequency of 7100 MHz; paired with the settings: L/CH1 = 0, C/CH2 = 0, D/CH3 = 1, BAND = 0, SPI/EN = 0
CH6 corresponds to a frequency of 7130 MHz; paired with the settings: L/CH1 = 1, C/CH2 = 0, D/CH3 = 1, BAND = 0, SPI/EN = 0
CH7 corresponds to a frequency of 7150 MHz; paired with the settings: L/CH1 = 0, C/CH2 = 1, D/CH3 = 1, BAND = 0, SPI/EN = 0
CH8 corresponds to a frequency of 7210 MHz; paired with the settings: L/CH1 = 1, C/CH2 = 1, D/CH3 = 1, BAND = 0, SPI/EN = 0
Test Condition:
- Ambient temperature: 25℃
- Video input voltage: 1.0Vp-p,150 (IRE)
Attention:
- When the SPI/M is at a high level, the module receives the SPI signal to control the frequency, if no frequency setting or invalid setting is received, it will work at 6150MHz by default, and the frequency range can be set to 6G~7.5G, 1MHz steps.
- SPI signal level 3.3V, up to 100K rate.
SPI Frequency Point Table
This is the SPI frequency point list, which specifies the frequency values corresponding to channels CH1 to CH8 under different bands. The details are as follows:
- For Band A: CH1: 6110, CH2: 6130, CH3: 6150, CH4: 6170, CH5: 6190, CH6: 6210, CH7: 6230, CH8: 6250
- For Band B: CH1: 6270, CH2: 6290, CH3: 6310, CH4: 6330, CH5: 6350, CH6: 6370, CH7: 6390, CH8: 6410
- For Band E: CH1: 6430, CH2: 6450, CH3: 6470, CH4: 6490, CH5: 6510, CH6: 6530, CH7: 6550, CH8: 6570
- For Band F: CH1: 6590, CH2: 6610, CH3: 6630, CH4: 6650, CH5: 6670, CH6: 6690, CH7: 6710, CH8: 6730
- For Band R: CH1: 6750, CH2: 6770, CH3: 6790, CH4: 6810, CH5: 6830, CH6: 6850, CH7: 6870, CH8: 6890
- For Band P: CH1: 6910, CH2: 6930, CH3: 6950, CH4: 6970, CH5: 6990, CH6: 7010, CH7: 7030, CH8: 7050
- For Band H: CH1: 7070, CH2: 7090, CH3: 7110, CH4: 7130, CH5: 7150, CH6: 7170, CH7: 7190, CH8: 7210
- For Band U: CH1: 6115, CH2: 6265, CH3: 6425, CH4: 6585, CH5: 6745, CH6: 6905, CH7: 7065, CH8: 7185
Note: size is manual measurement, there are exist errors
