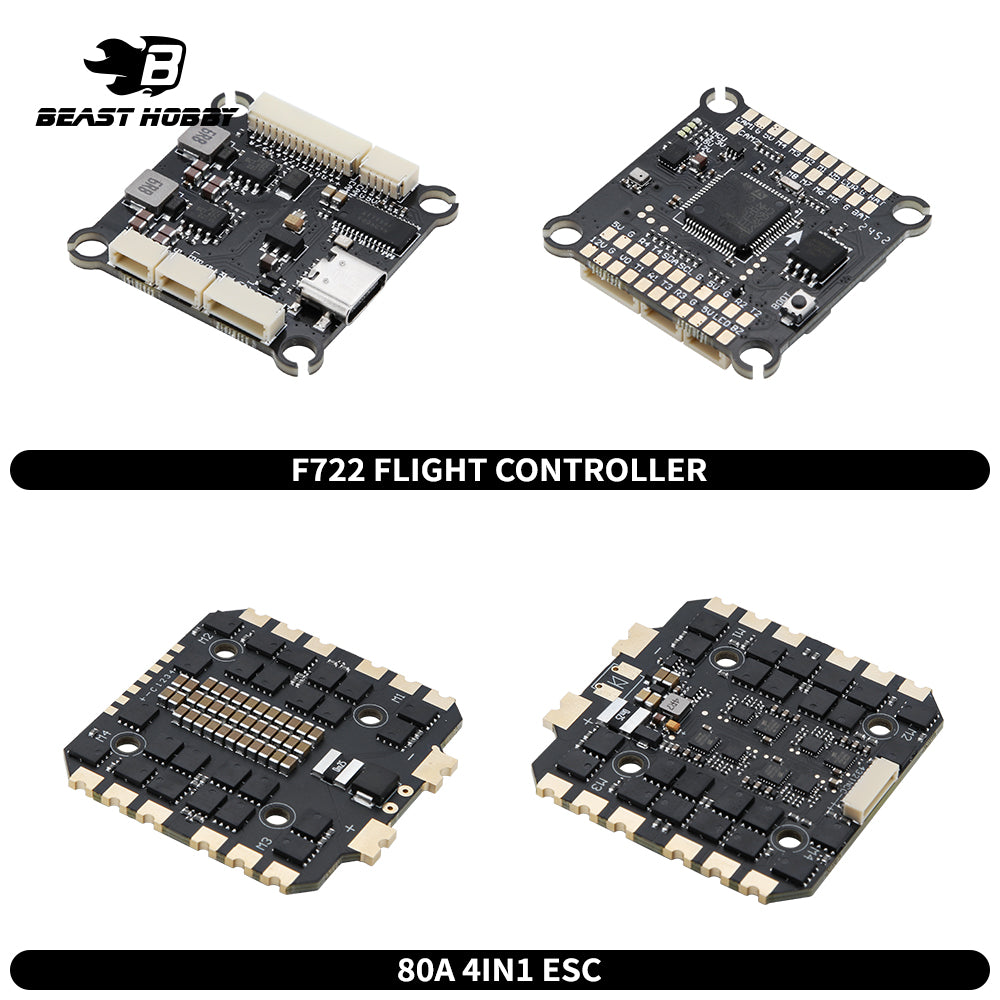

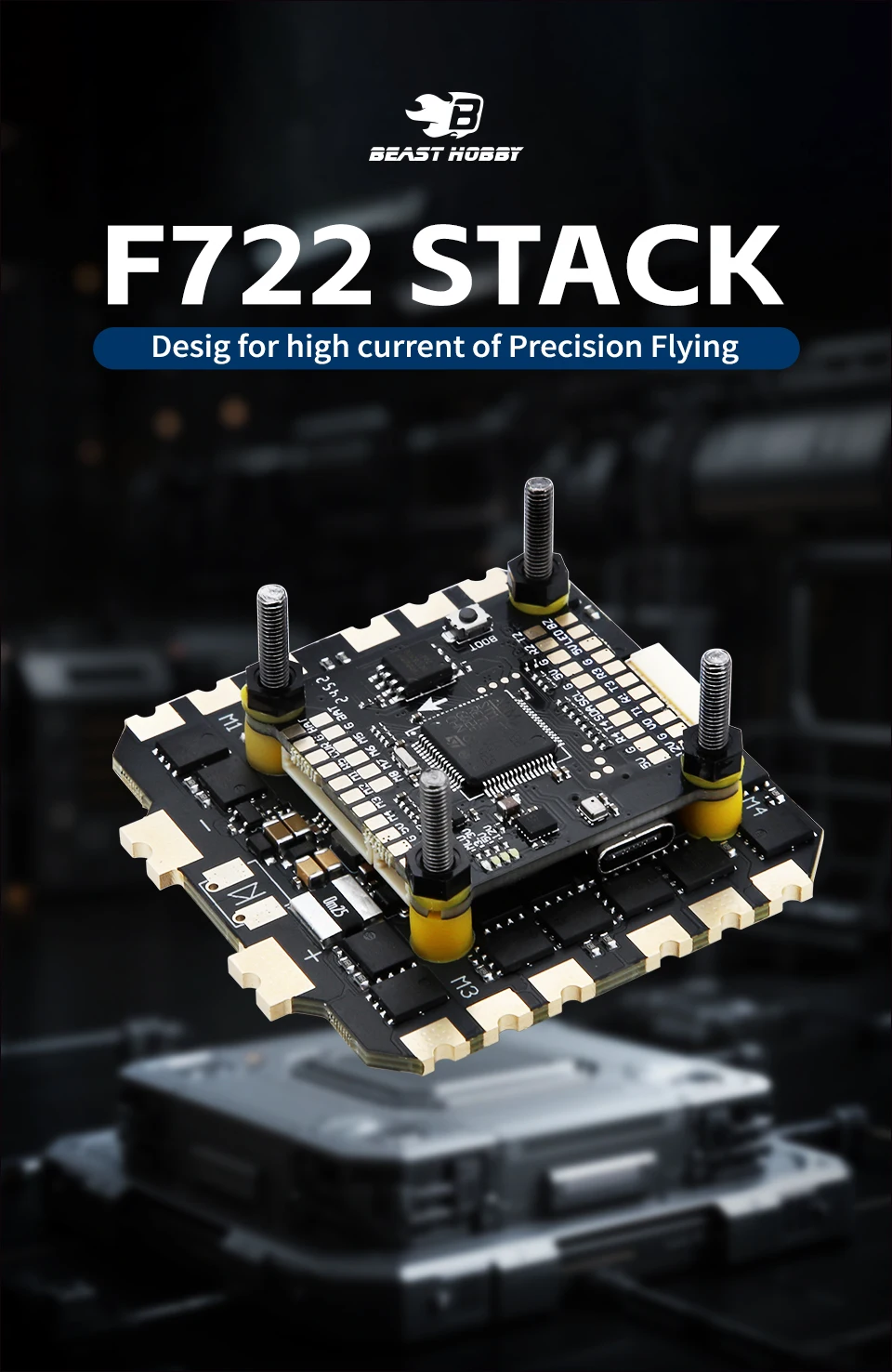

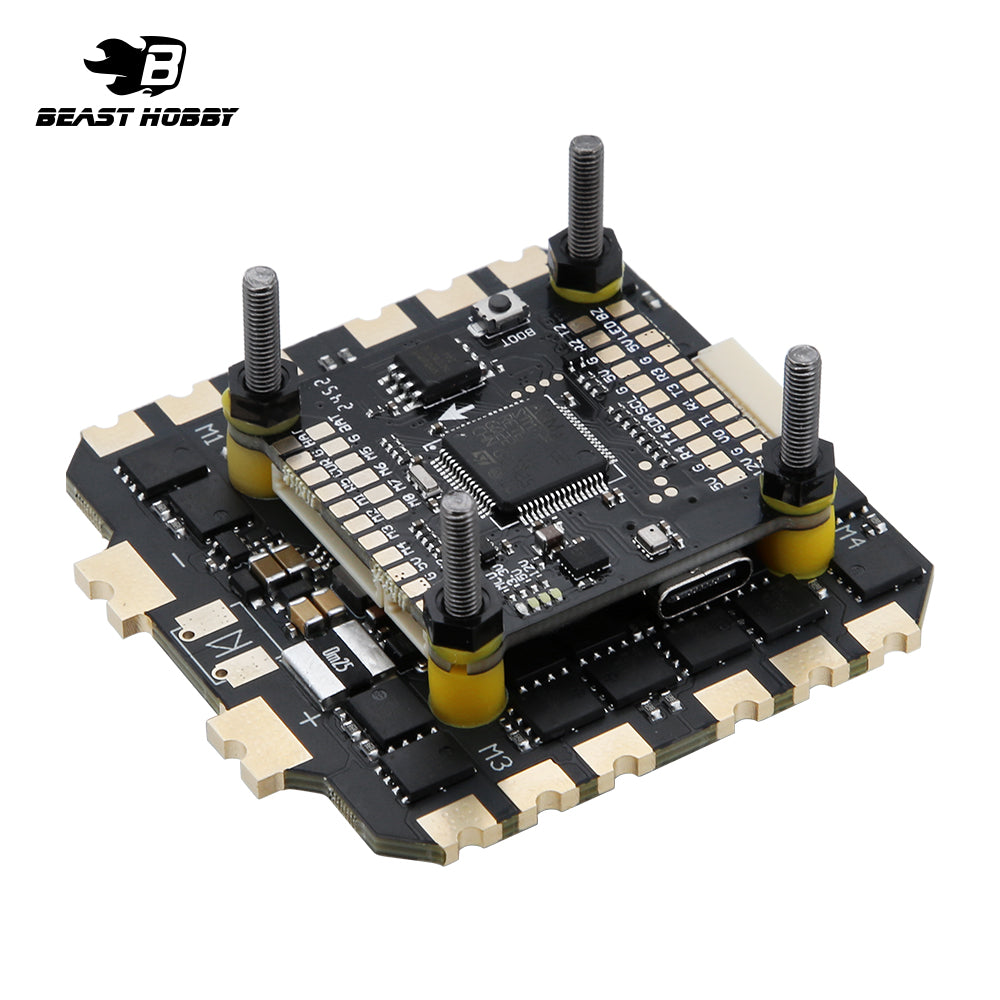

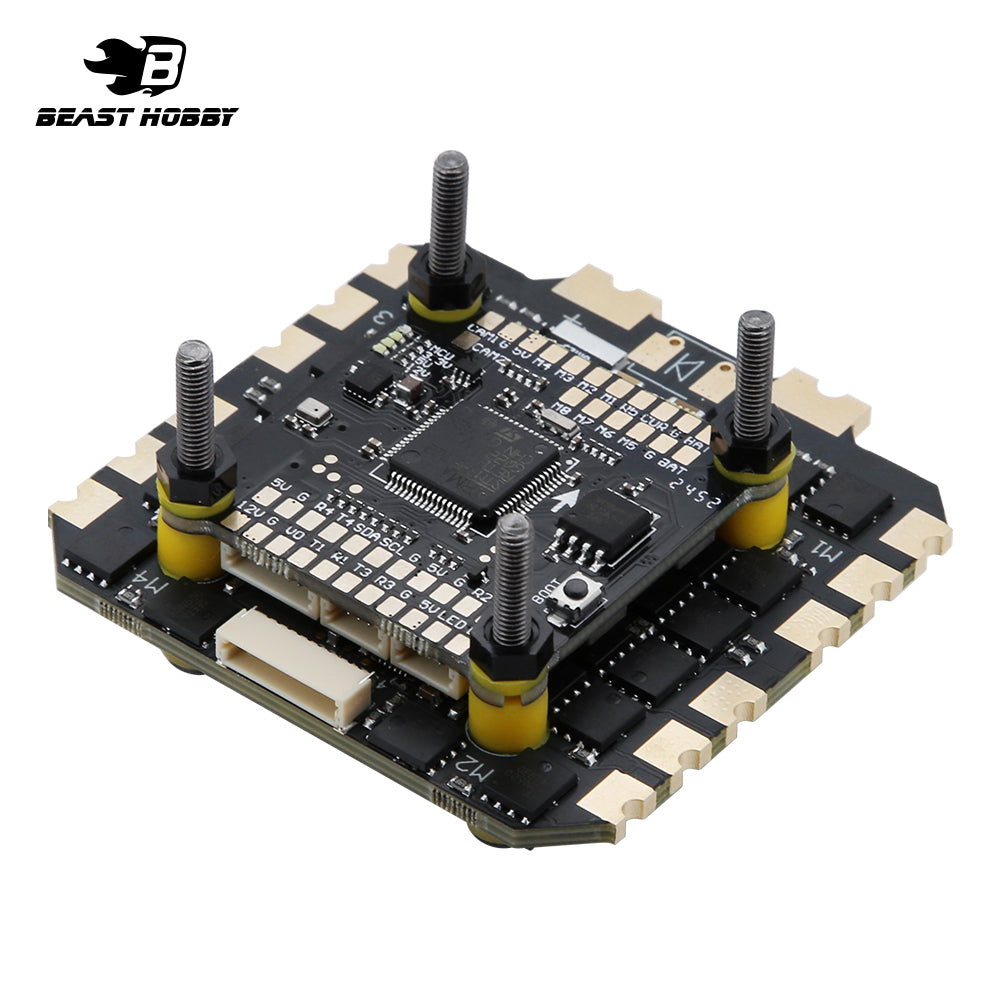

BeastHobby F722 80A Stack

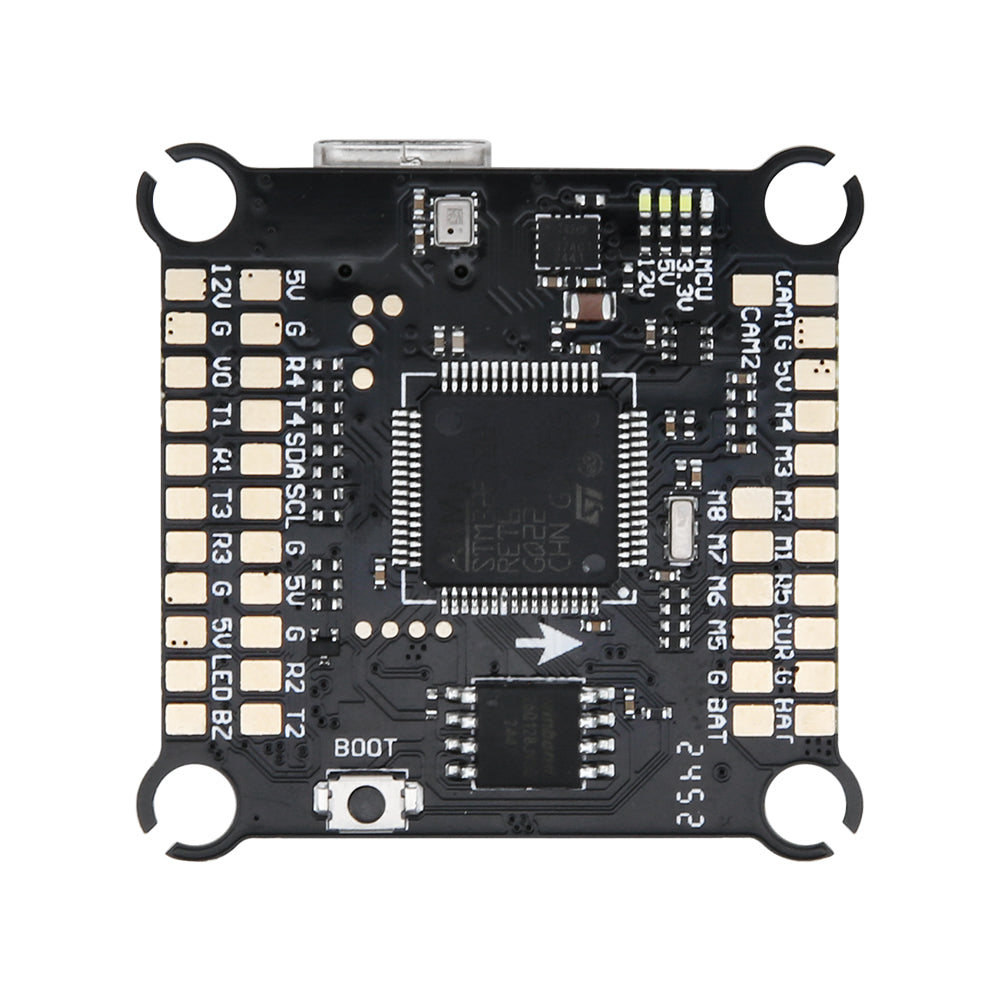

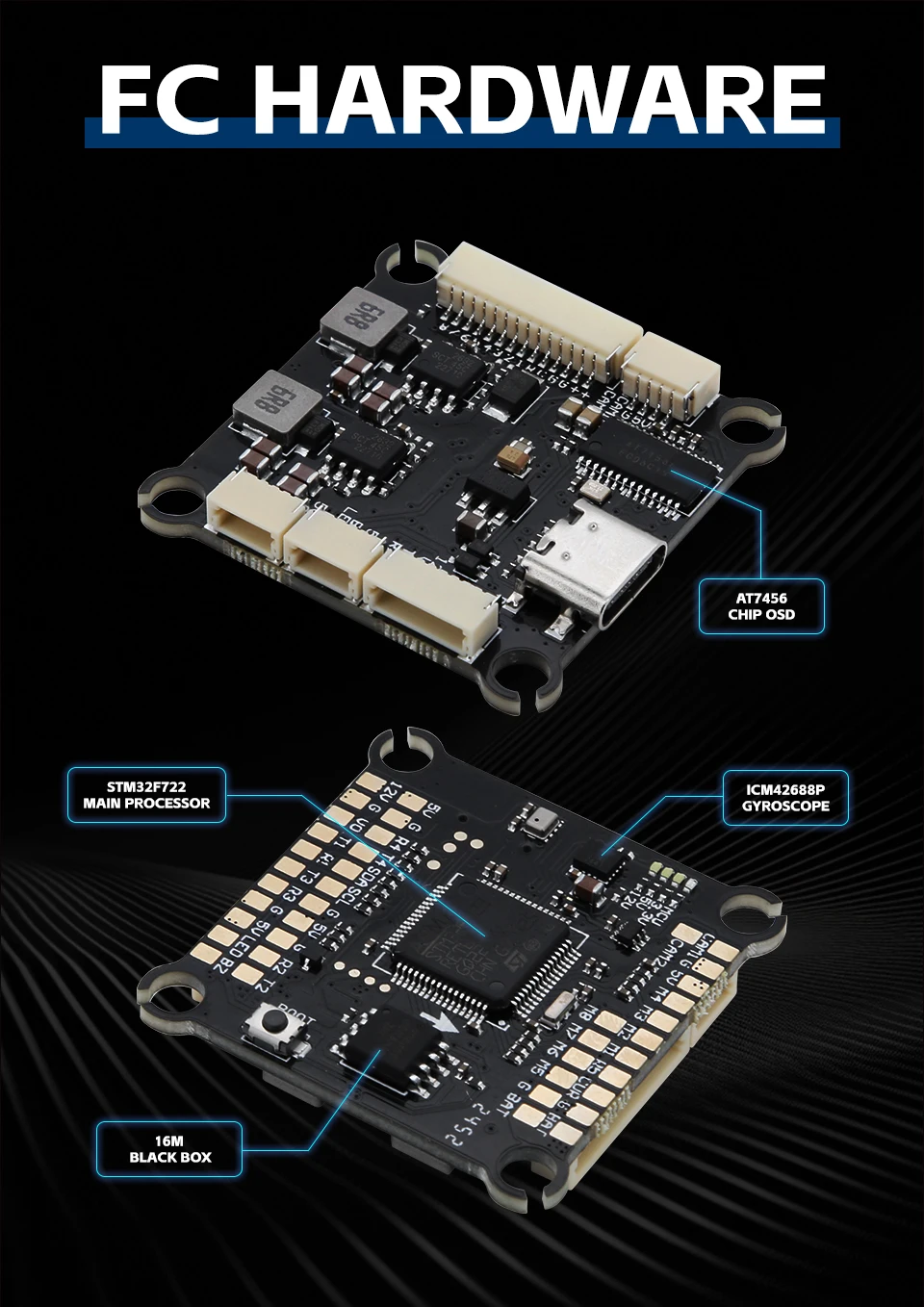

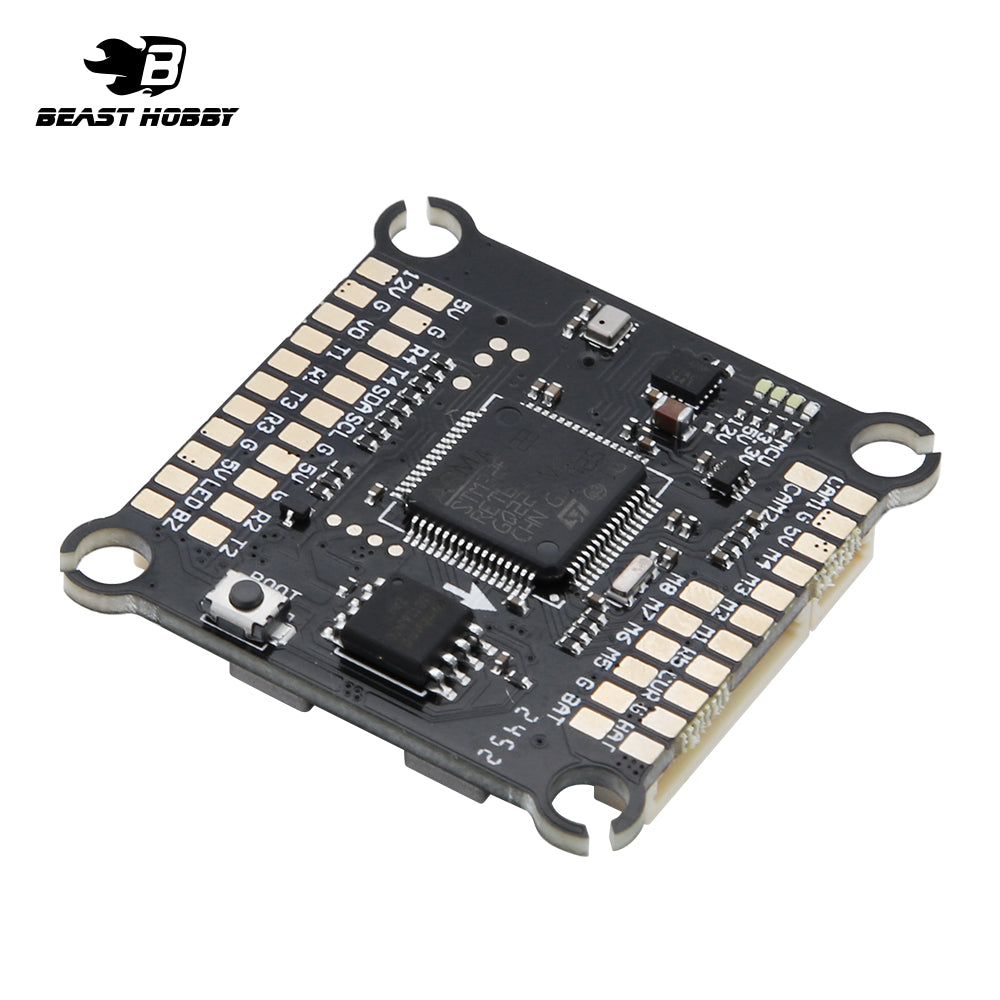

F722 FC Specifications
MCU: STM32F722
IMU(Gyro): ICM42688P
OSD:BetaFlight OSD (AT7456E chip)
Barometer: selectable
USB Port: Type C
DJI Airunit connector: YES
Dual camera : YES (Default: CAM1)
Black box: 16M Black Box
Power Input: 3-8S Lipo
Firmware name: BETAFLIGHT: STM32F405
BEC Output: 5V output, the total current load is 3A
12V output, the total current load is 2.5A
UART: 5 Sets
UART1 for VTX data setting
UART2 for VTX RC Link (R2I for SBUS receiver)
UART3 Vacancy
UART4 for GPS
UART5 Dedicated for ESC telemetry
ESC Signal: M1-M8
I2C: YES (SDA & SCL pads can be used for magnetometer)
LED Pad: YES (used for WS2812 LED control)
Buzzer Pad: YES
Boot Button: YES
Mounting: 30.5×30.5mm (4mm hole diameter)
Dimension: 36*36mm*7mm
Weight: 7g

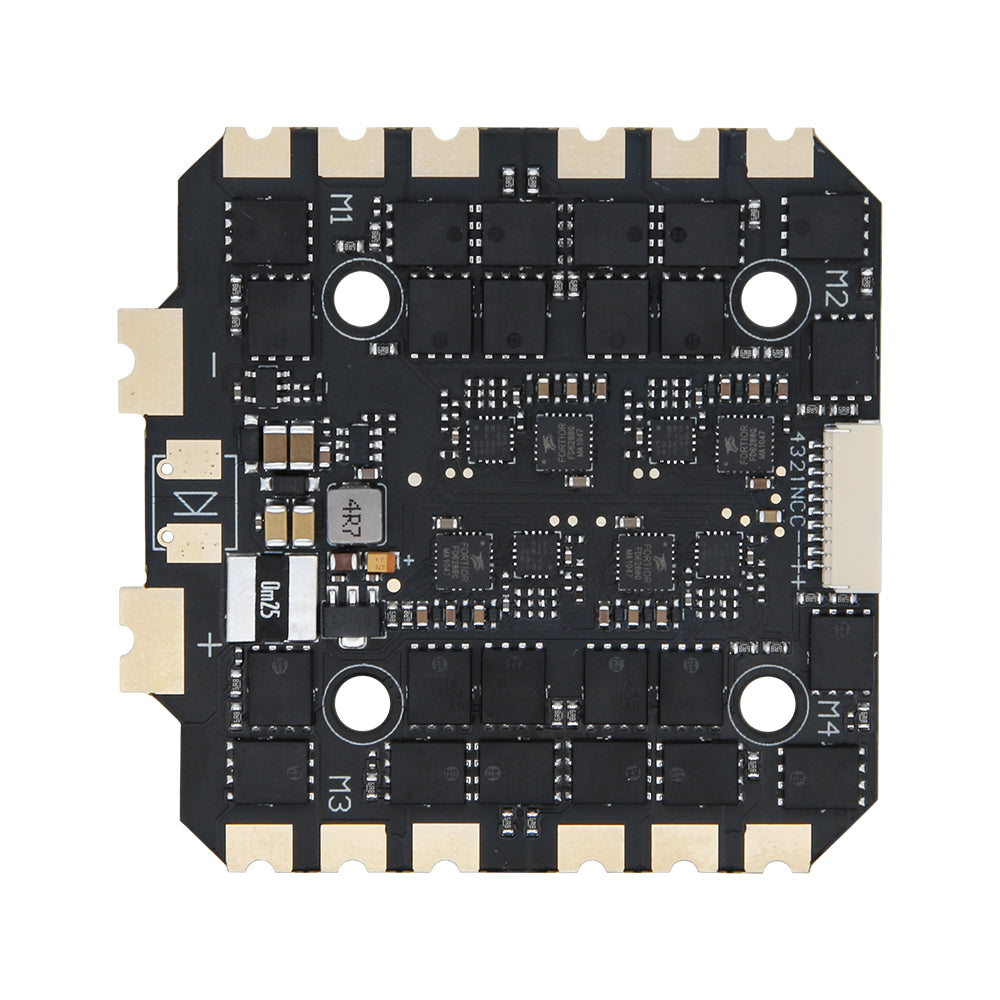

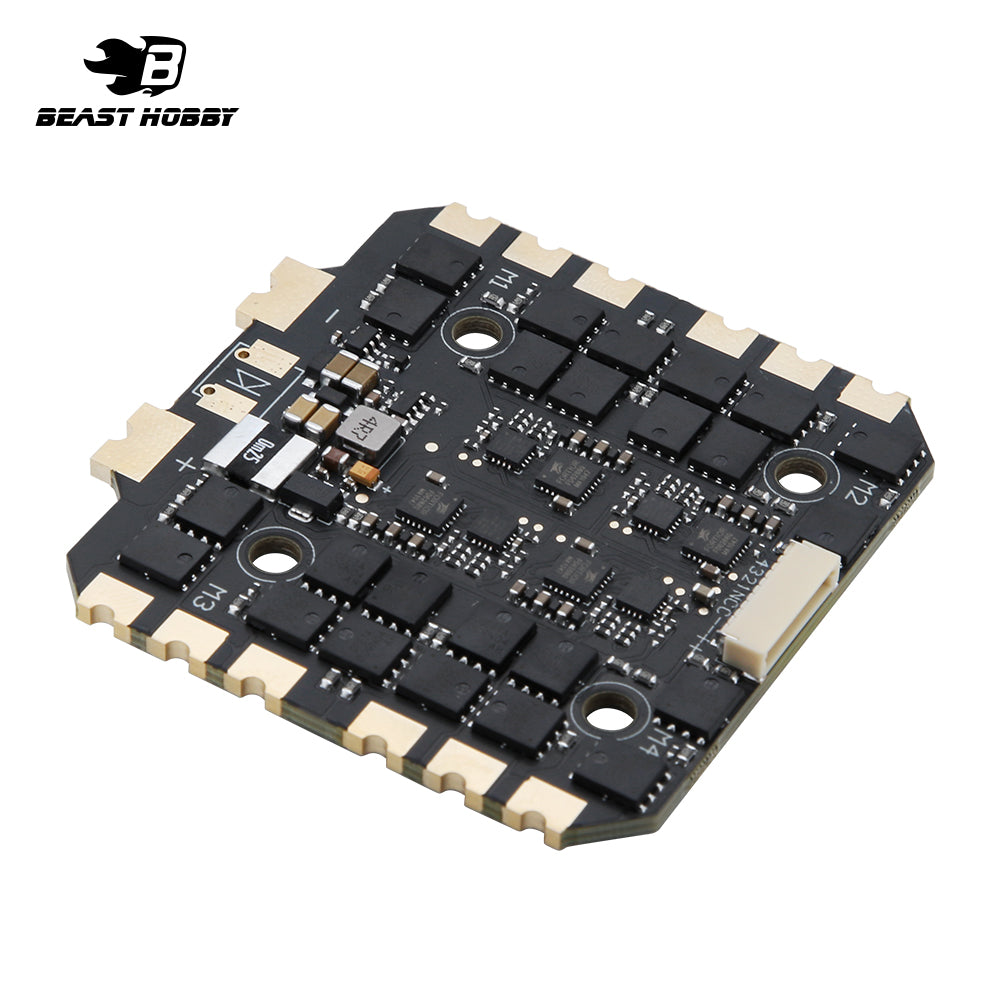

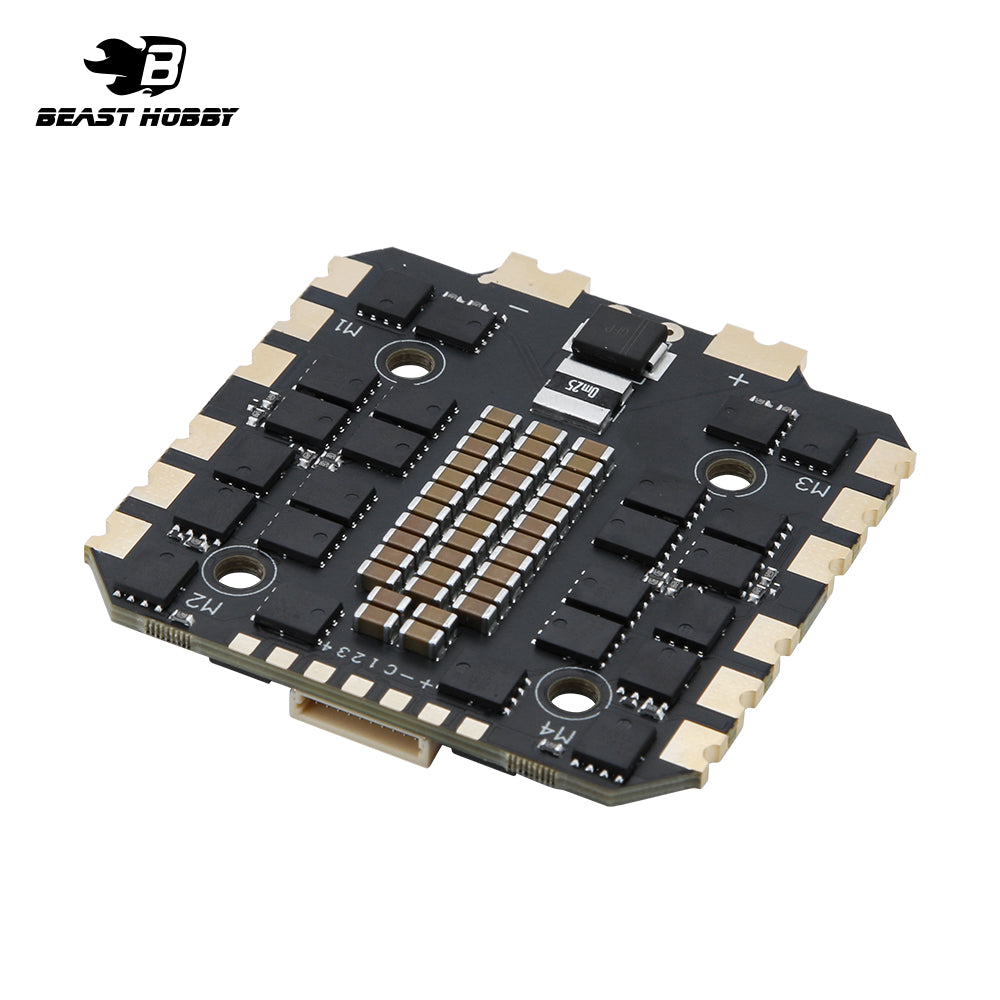

80A 30.5*30.5 4-IN-1 ESC
MCU: EFM8BB21F16G
MOSFET: High performance Mosfet
Power Input: 3-6S Lipo
Continuous current: 80A*4
Burst current :90A (10 seconds)
ESC Protocol: DSHOT300/600
Firmware:Q_H_30 24K
Mounting: 30.5×30.5mm (4mm hole diameter)
Dimension: 57*56mm*7mm
Weight: 28g
PC ONLINE Configurator Link: http://esc-configurato.com/

Product Size:

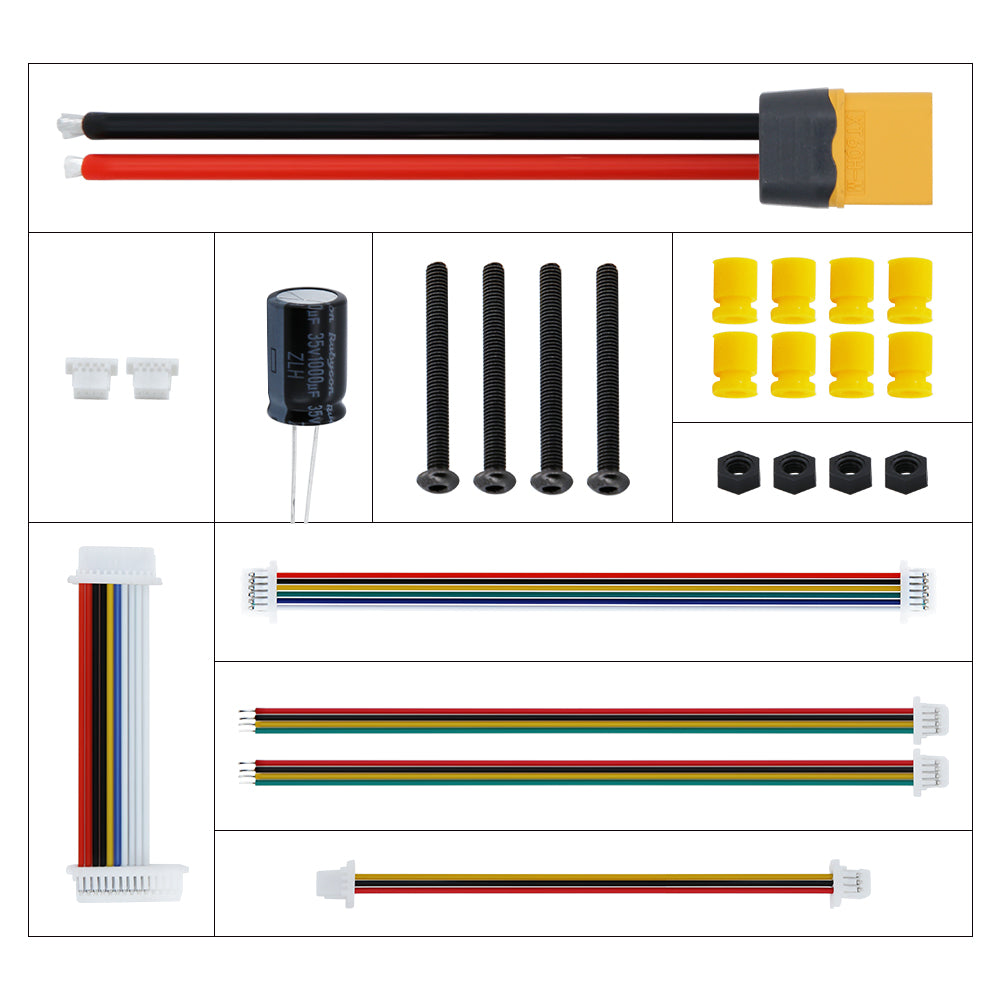

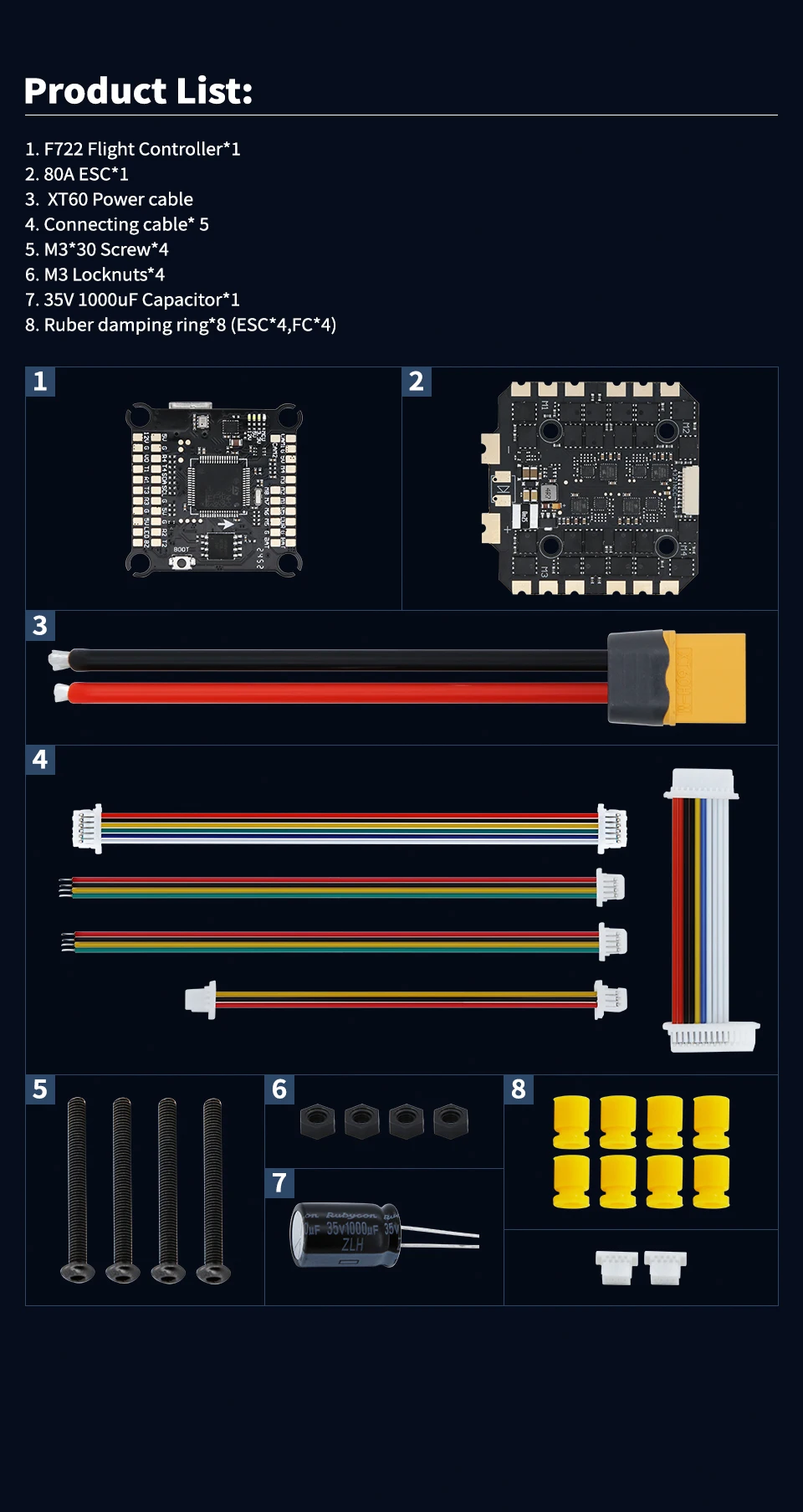

Packing List:

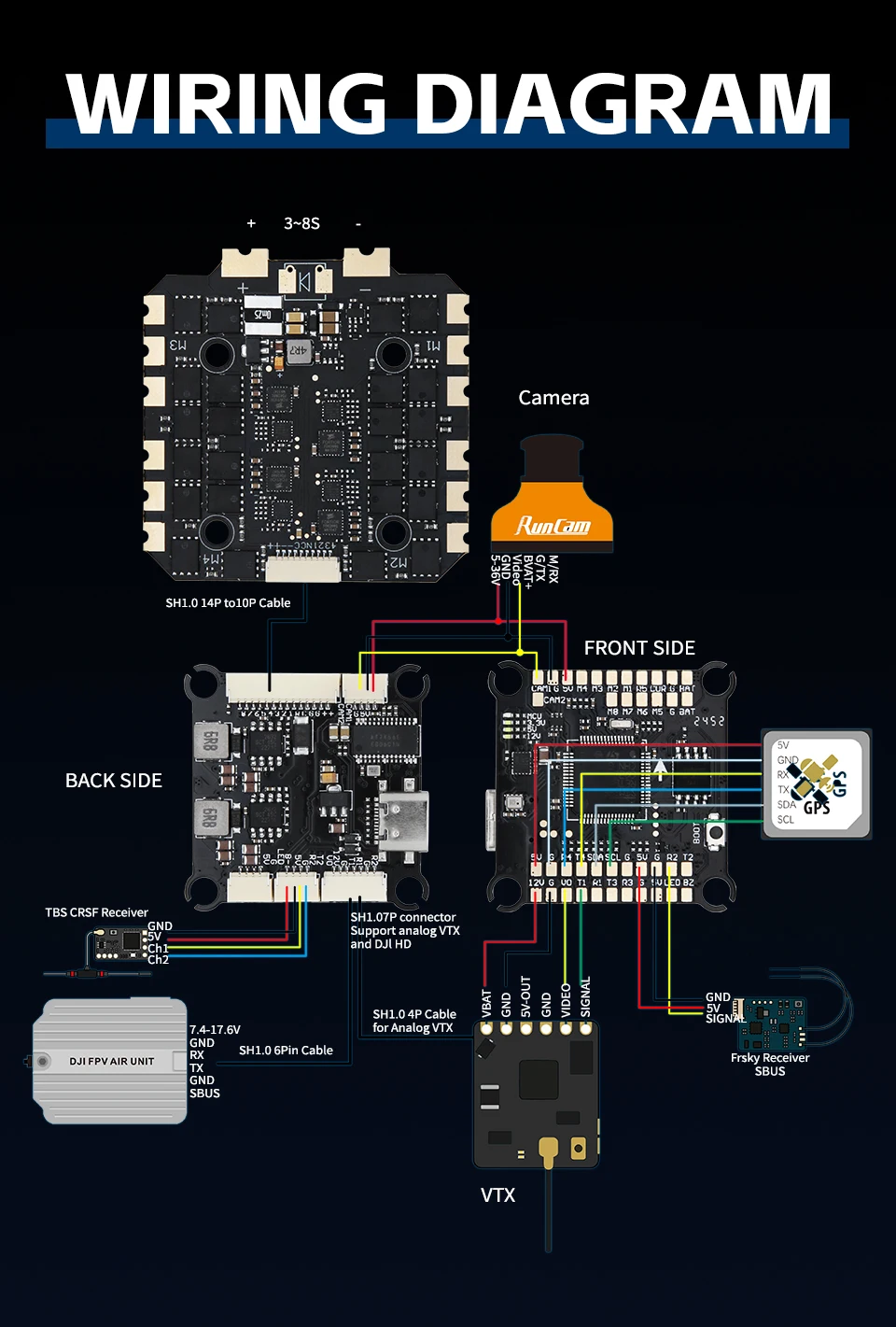

Diagram:
