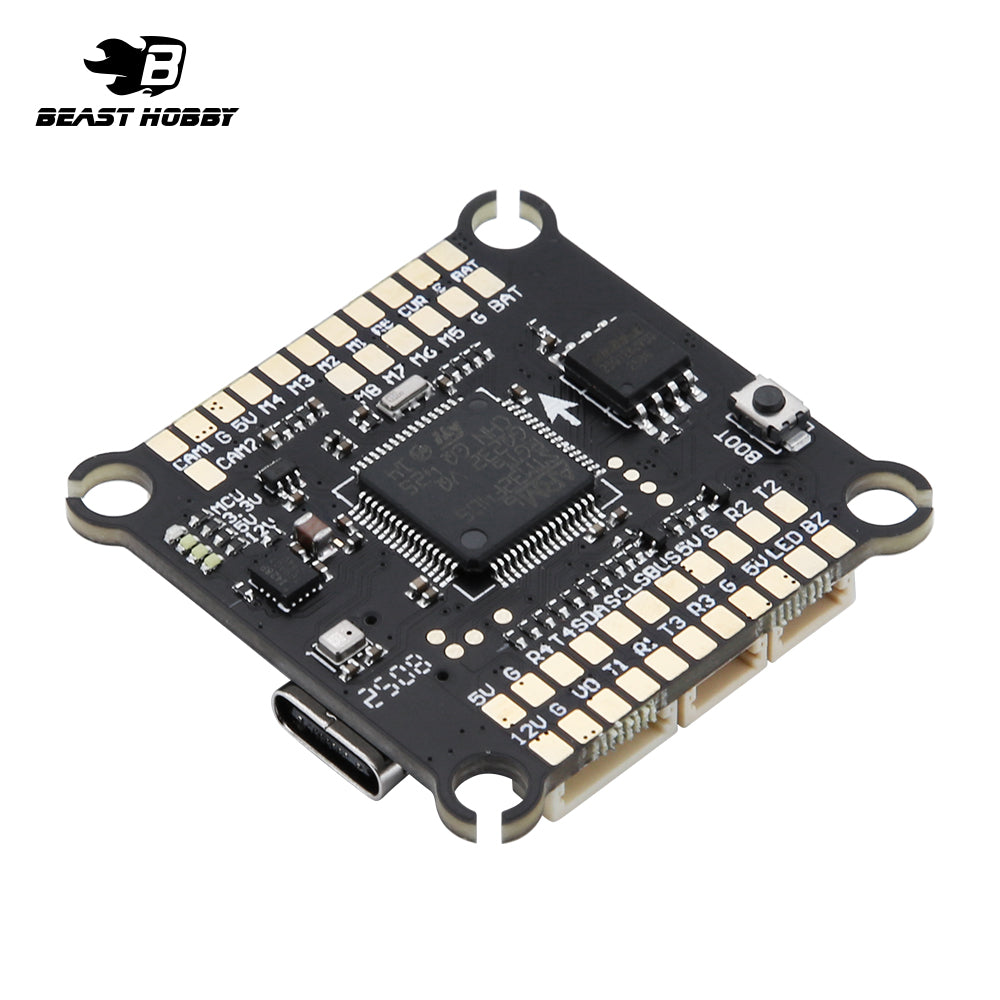

F405  FC Specifications

MCU: STM32F405

IMU(Gyro): ICM42688P

OSD:BetaFlight OSD (AT7456E chip)

Barometer: selectable

USB Port: Type C

DJI Airunit connector: YES

Dual camera : YES (Default: CAM1)

Black box: 16M Black Box

Power Input: 3-8S Lipo

Firmware name: BETAFLIGHT: STM32F405

BEC Output: 5V output, the total current load is 3A

                        12V output, the total current load is 2.5A

UART: 5 Sets

UART1 for VTX data setting

UART2 for VTX RC Link (R2I for SBUS receiver)

UART3 Vacancy

UART4 for GPS

UART5 Dedicated for ESC telemetry

ESC Signal: M1-M8

I2C: YES (SDA & SCL pads can be used for magnetometer)

LED Pad: YES (used for WS2812 LED control)

Buzzer Pad: YES

Boot Button: YES

Mounting: 30.5×30.5mm (4mm hole diameter)

Dimension: 36*36mm*7mm

Weight: 7g

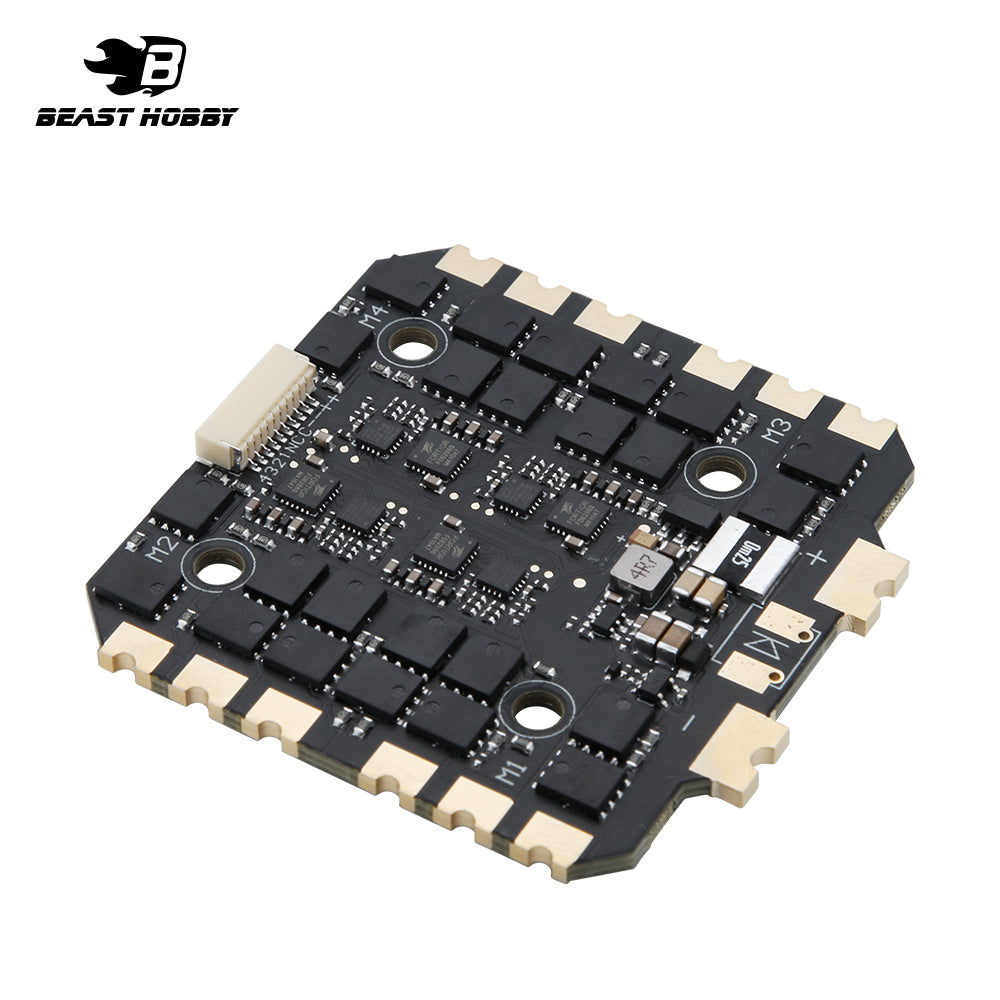

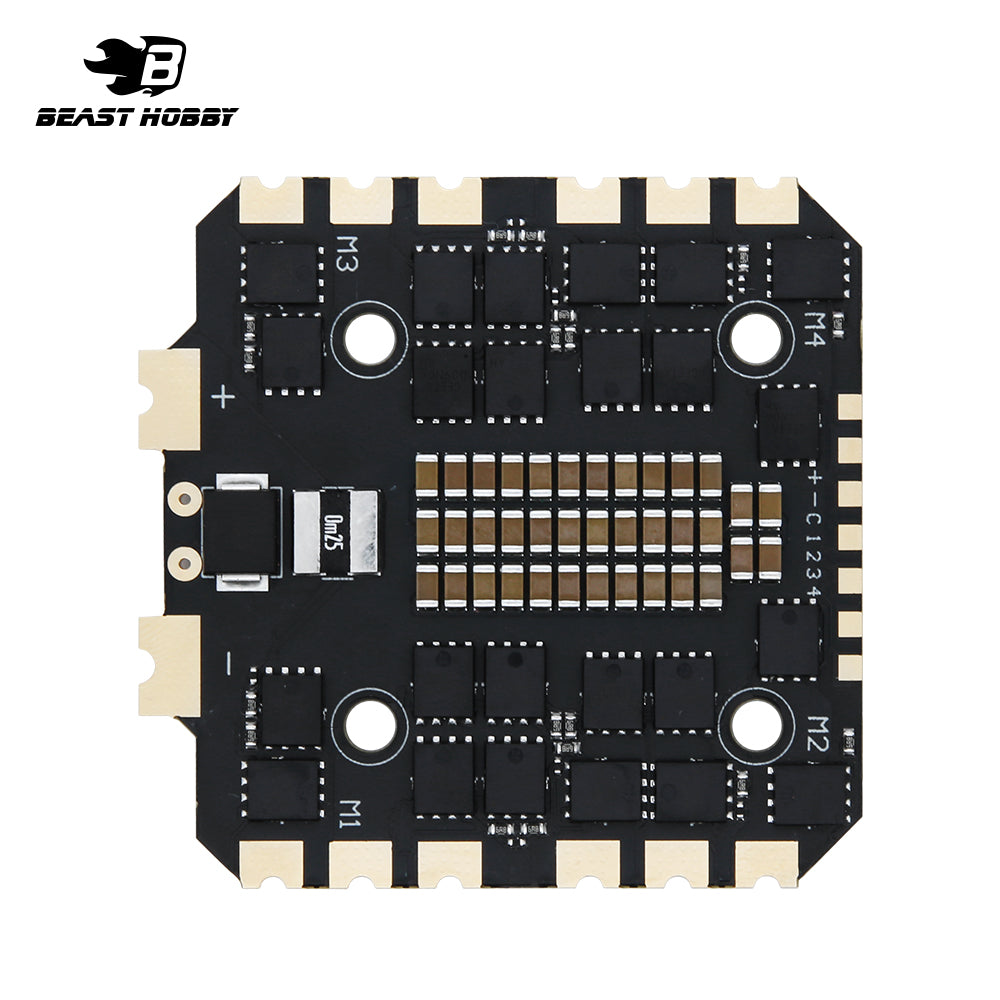

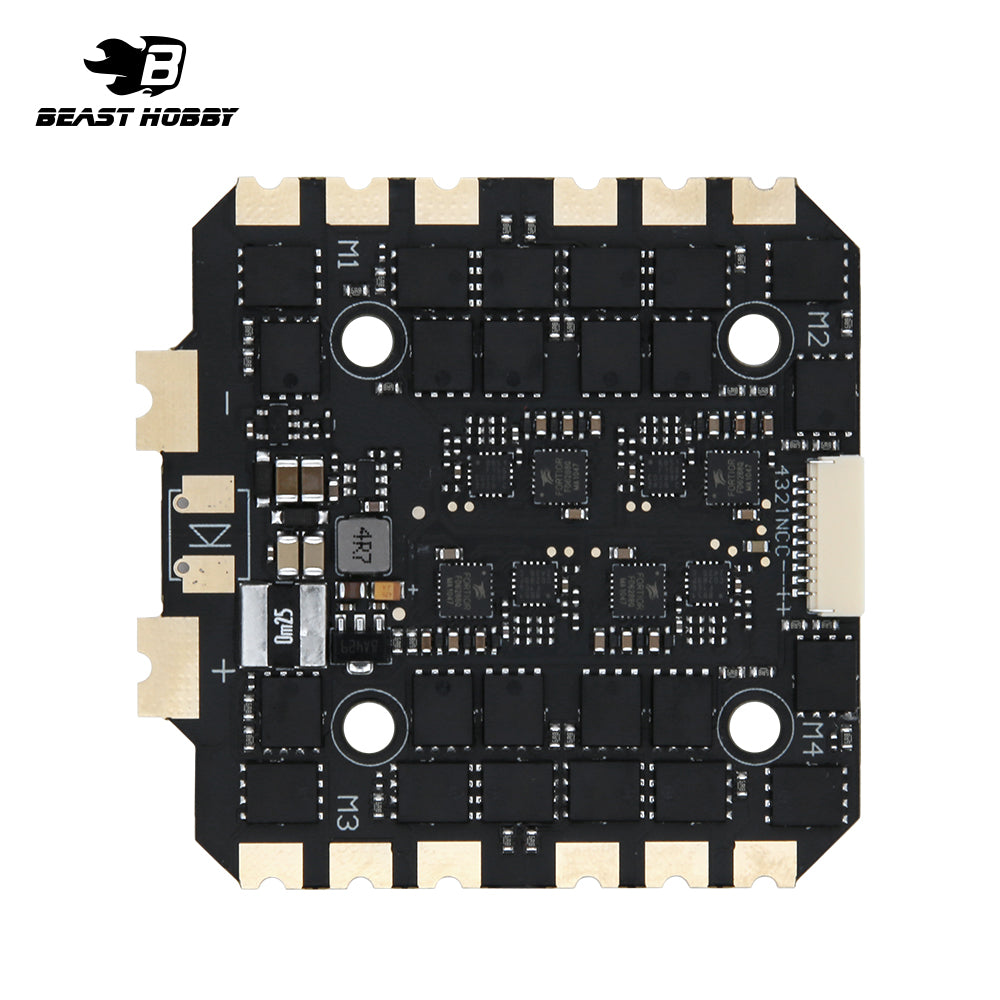

80A 30.5*30.5 4-IN-1 ESC

MCU: EFM8BB21F16G

MOSFET: High performance Mosfet

Power Input: 3-6S Lipo

Continuous current: 80A*4

Burst current :90A (10 seconds)

ESC Protocol: DSHOT300/600
Firmware:Q_H_30 24K

Mounting: 30.5×30.5mm (4mm hole diameter)

Dimension: 57*56mm*7mm

Weight: 28g

PC ONLINE Configurator Link: http://esc-configurato.com/
