BeastHobby MARK4 V3 Pro 13/15-inch 570mm/680mm carbon frame for FPV drone

Description

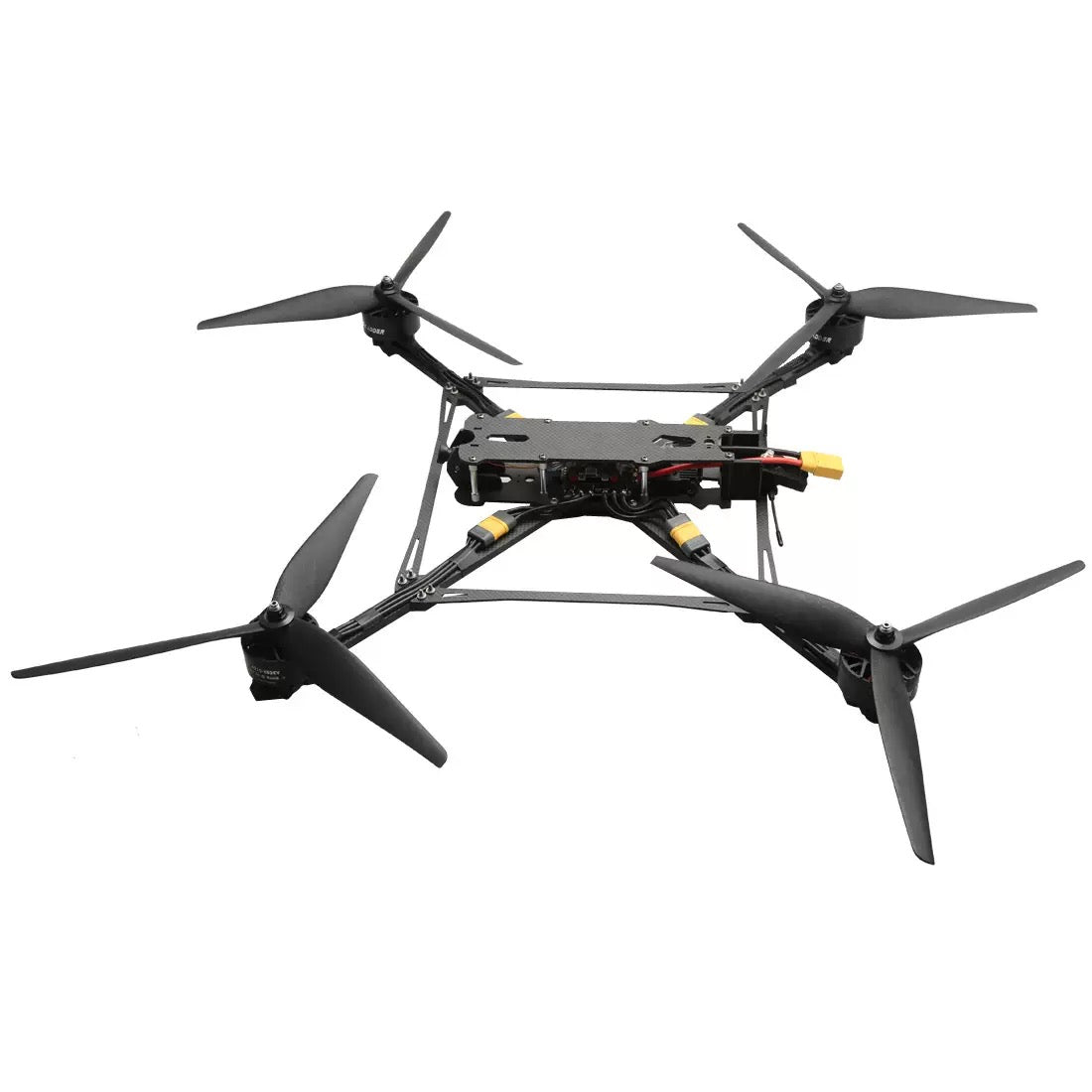

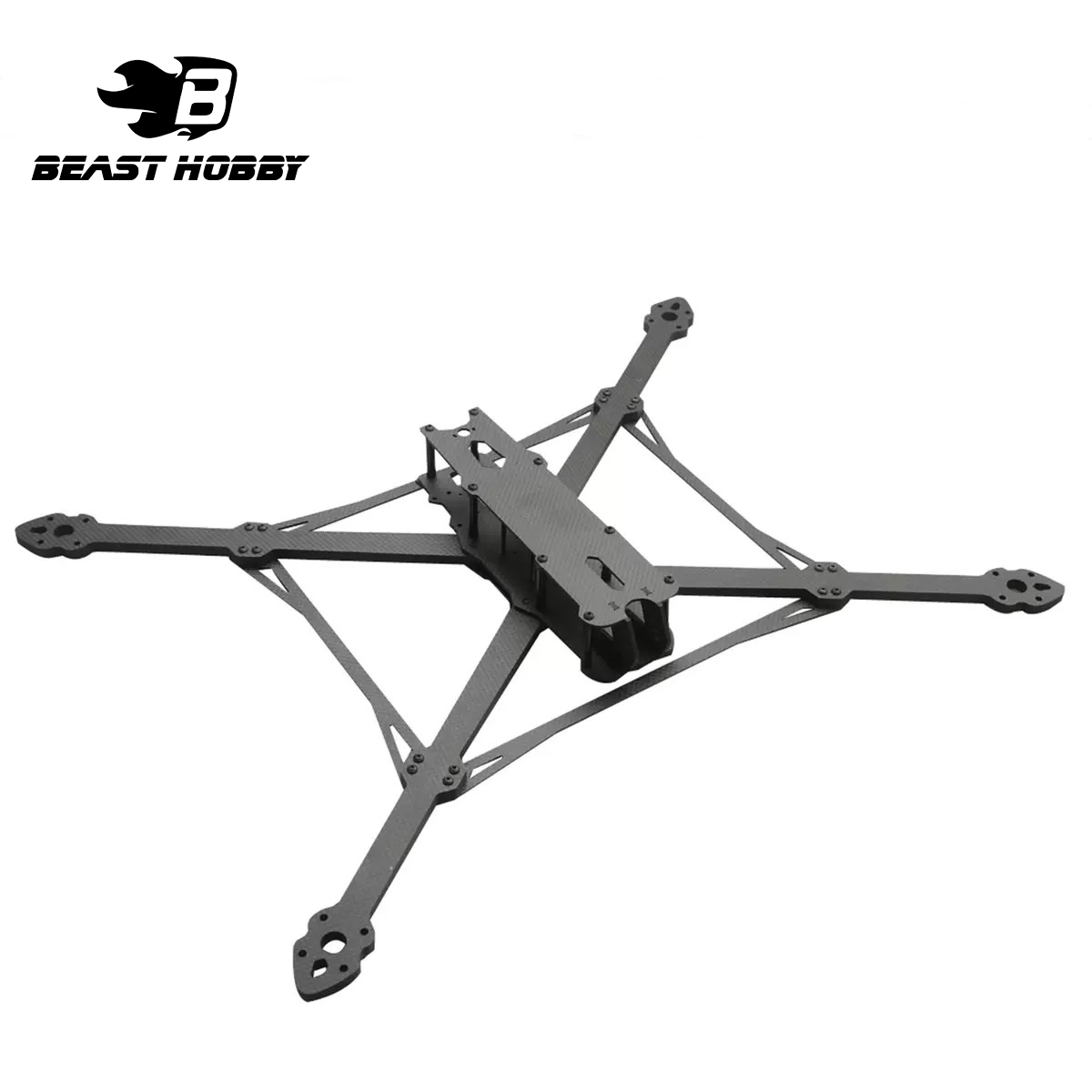

BeastHobby MARK4 V3 Pro 13/15inch - these carbon frames are available in two versions, 13-inch and 15-inch, designed for long-range drone assembly. They have a 13inch-570mm and 15inch-680mm motor axis spacing and are equipped with 8mm carbon fiber arms that are interconnected to increase structural rigidity. The frame is compatible with Micro 19mm cameras, which are fixed in the carbon sidewalls. It supports mounting holes for stacks of 30.5*30.5mm and 20*20mm. There is also a place in the rear for installing a video transmitter, also with appropriate holes for both formats. The frame is optimized for analog video systems, but also allows for the integration of digital video transmitters.

Features

• 8mm carbon fiber arms are interconnected to reduce deformation under load
• Carbon fiber sidewalls with a 19mm mounting dimension provide a stable mounting of the Micro camera
• Two diagonal options - 570mm-13inch and 680mm-15inch centerline models are adapted for long-range drones with propeller sizes up to 15 inches
• Suitable for both analog and digital video transmitters

Specifications

MARK4 V3 Pro 13 inch

• Frame size along the motor axes: 570mm
• Lever thickness: 8mm
• Top plate: 2mm
• Bottom plate: 3mm
• Distance between the camera mounting holes: Micro 19mm
• Mounting holes for the stack: 30.5x30.5mm M3/20x20mm M2
• Mounting holes for VTX: 30.5x30.5mm M3/20x20mm M2
• Mounting holes for motors: 30mm M4
• Material: carbon fiber
• Color: black
• Weight: 520g

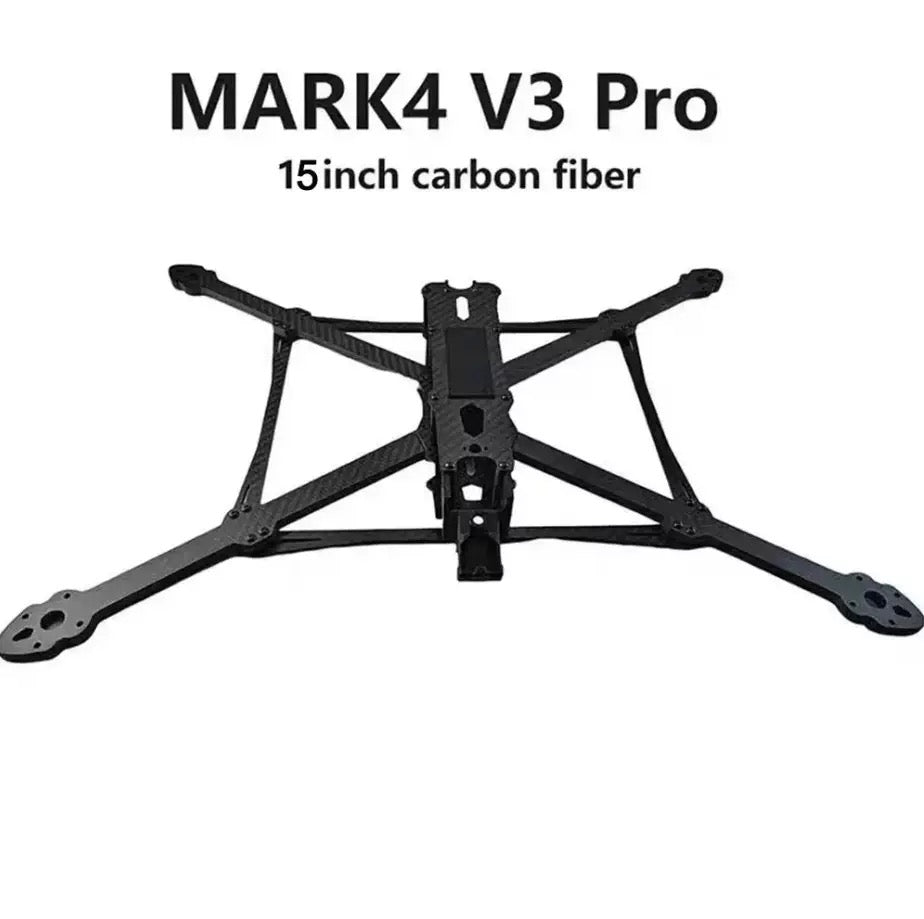

Mark4 V3 Pro 15 inch

• Frame size along the axes of the motors: 680mm

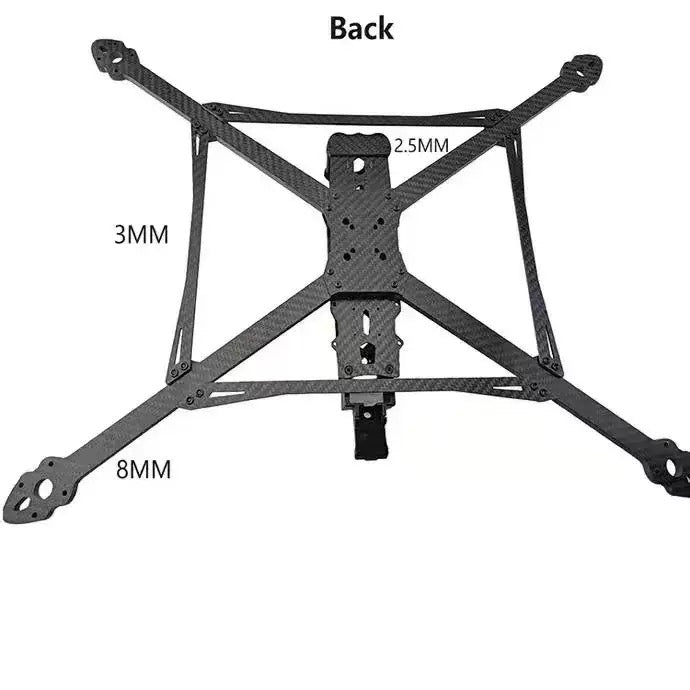

• Lever thickness: 8mm
• Top plate: 2mm
• Bottom plate: 3mm
• Lower fixed plate: 3mm
• Side plate of the camera: 2.5mm
• Front/back plate thickness: 2.5mm
• Thickness of the surrounding amplification: 3mm
• Distance between camera mounting holes: 19mm
• Mounting holes for stack: 20*20mm/30.5*30.5mm
• VTX mounting holes: 20*20mm/30.5*30.5mm
• Mounting holes for motors: 21*21mm M4
• Material: carbon fiber
• Color: black
• Weight: 590g

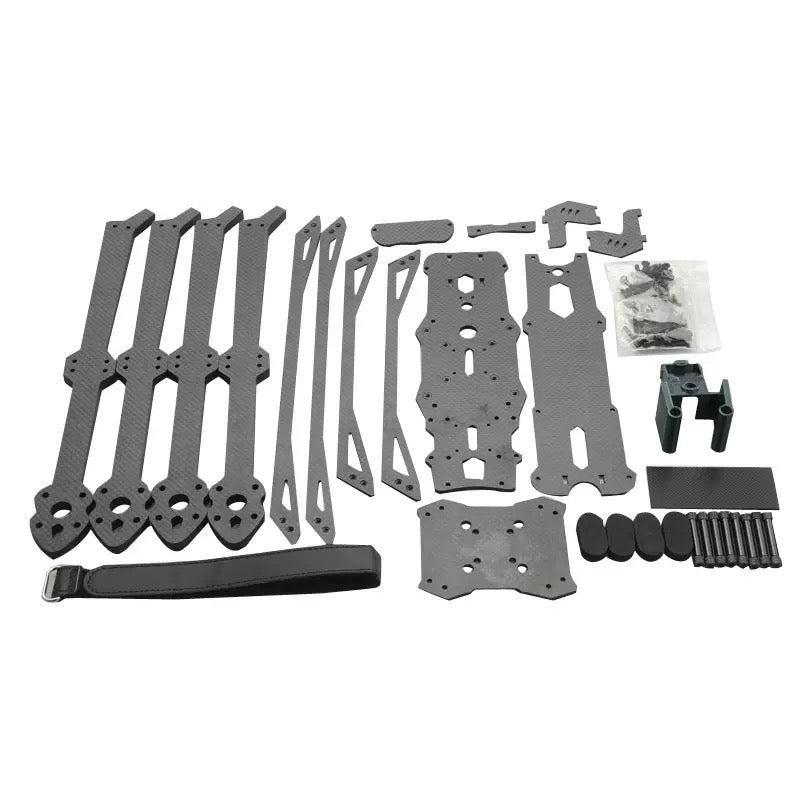

Package

• 1 x BeastHobby MARK4 V3 Pro 13/15inch 570mm/680mm carbon fiber frame for FPV drone (optional)
