About this product

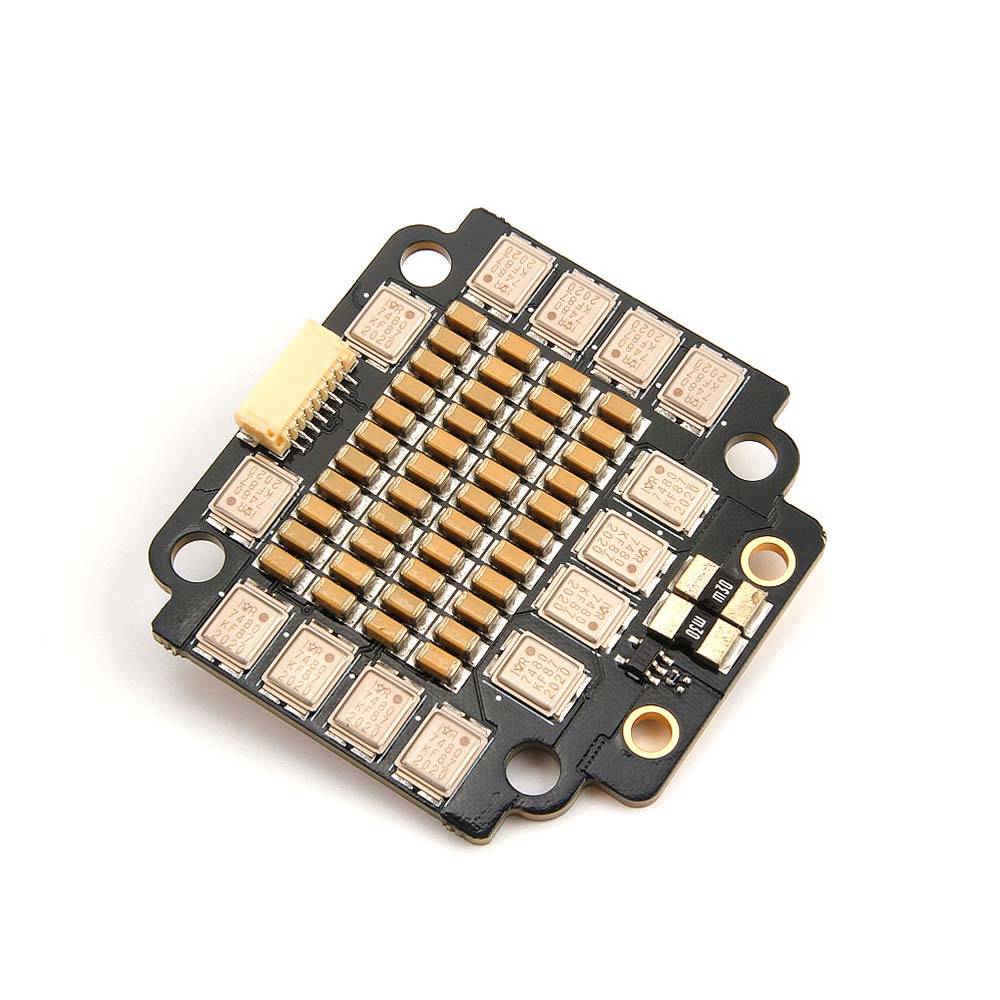

The Spedix IS25 4-in-1 ESC provides high-quality power delivery with a spacious layout – a luxury for micro racing drones.
This ESC has a burst current rating of 35A along with a current sensor, a sweet spot for 3-inch racing drones. The small 20×20 footprint lets it fit easily even in most 2-inch frames.
- Continuous Current: 25 amps
- Burst Current: 35 amps≥10 S
- Input Voltage: 2-5 Cell LiPo
- BEC: No
- Current Detection: Yes
- Dimensions: 29x32x5mm
- Mounting pattern: 20x20mm
- Mounting Holes: 3.7mm (M3 shoulder washers included)
- Firmware: BLHeli_S(QH-15)
- Input signal: PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300 & Dshot600
Note: The amperage meter scale needs to be set to 200 for the current sensor to work.
- 1x 25amp 4in1 ESC
- 10cm red & black 16AWG wire pre-soldered
- 10x M3 shoulder washers (8 required, 2 spare)
- 25v 330μF capacitor
- 2x 1mm JST-SH 8-pin connectors
- 1x Datasheet
