Radiolink M8N GPS SE100 Module High Positional Accuracy Work with GLONASS/BeiDou for APM Pixhawk Flight Controller RC Drone Quad


SKU: BS026-029 Categories: ,

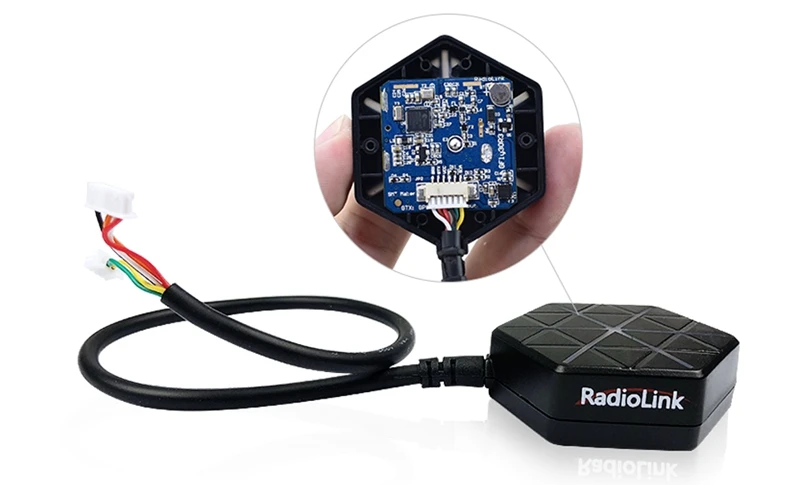

Drone GPS Module SE100 for Pixhawk


  • 【Mini Size】: This mini GPS for Radiolink Pixhawk Flight Controller, only 1.89*1.6*0.59in, it’s perfect for you racing drone and quadcopter.
  • 【Excellent Stable】: The ceramic antenna design have enhances the ability to get extremely weak signal even though interference by ideal filter.Double Filter:SAWF(Surface acoustic wave filter)form Murata,Independent dual filtering technology, stronger anti-interference ability.
  • 【Top Configuration】: Design with U-box UBX-M8030(M8), 72-channel, is better than GNSS 7N. 2.5dbl Ceramic Antenna and HMC5983 from Honeywell.
  • 【Positional Accuracy and Quick】: 50 centimeter precision when working with concurrent GNSS, positioning 20 satellites in 6 seconds at open ground and valley station-keeping ability. Support Reception of GPS, QZSS L1 C/A, GLONASS L10F, BeiDou B1.
  • 【High-performance】:Added GPS signal search satellite indicator function, and obtained exclusive patent, achieving high configuration, low price, giving the model friend a very cost-effective product.
  • 【You Will Get】: excellent mini GPS and 12 months warranty and 24 hours friendly customer service.

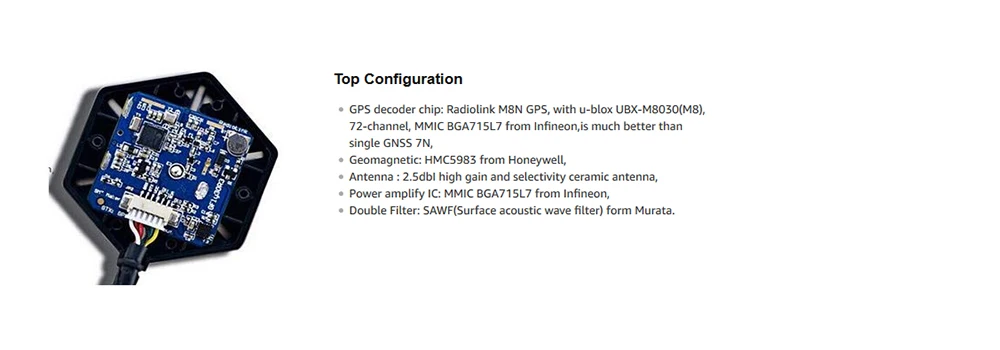

Top Configuration

  • GPS decoder chip: Radiolink M8N GPS, with u-blox UBX-M8030(M8), 72-channel, MMIC BGA715L7 from Infineon,is much better than single GNSS 7N,
  • Geomagnetic: HMC5983 from Honeywell,
  • Antenna : 2.5dbI high gain and selectivity ceramic antenna,
  • Power amplify IC: MMIC BGA715L7 from Infineon,
  • Double Filter: SAWF(Surface acoustic wave filter) form Murata

Excellent Performance

  • 50 centimeter position accuracy.
  • Positioning 20 satellites in 6 seconds as open ground.
  • Valley station-keeping ability.
  • Concurrent reception of GPS/QZSS L1 C/A,GLONASS L10F,Beidou B1,

Assembly Selection of PIXHAWK

The connection cable interface of the Radiolink M8N SE100 is the same as the external socket of the PIXHAWK. It is a 6P MX interface. Users who want to use it on the Radiolink Mini PIX need to purchase a new socket extension for connection, The weight is only 1.89*1.6*0.59in.

Package Included

  • M8N SE100 GPS x 1
  • Metal rod bracket x 1
  • Connecting cable x 1
  • Metal fixing gasket x 2
  • Foam fixed sticker x 1

Additional information

Weight 0.1 kg
