Sale!

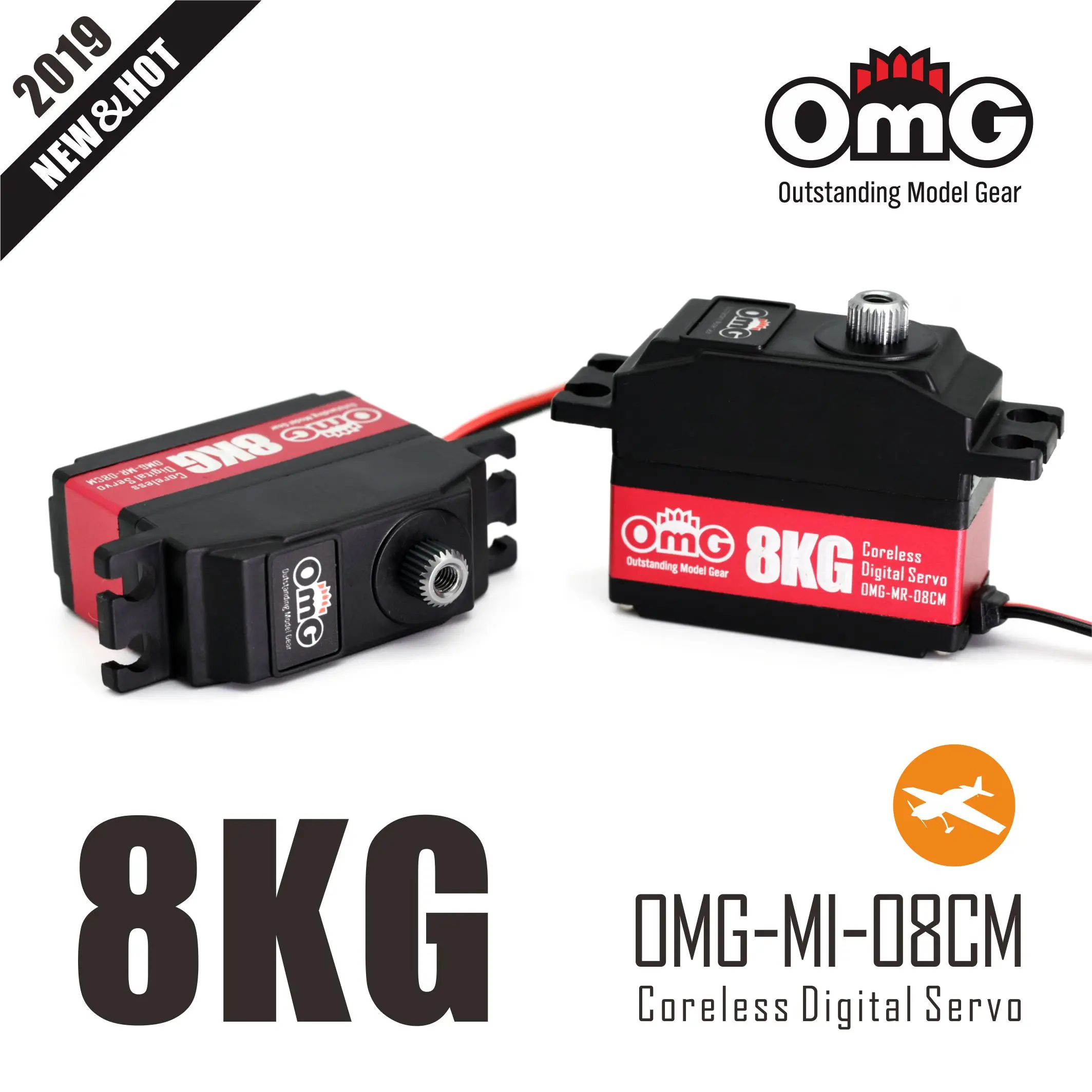

OMG Servo OMG-M1-08CM 8KG NC Full Metal High Voltage Motor Servo for Turbine Aircraft Large Scale Glider

$40.00

Top & bottom is plastic, middle is metal

SKU: BS021-0016 Category:

Description

Fit for turbine aircraft, large scale glider, top & bottom is plastic, middle is metal. Aluminum Titanium gear, middle size.

Specifications:

Working voltage: 4.8-8.4V The fastest speed: 7.4V-0.095sec/60° 8.4V-0.085sec/60° Locked-rotor torque: 7.4V-11.5kg-cm 8.4V-12.5kg-cm Output gear: 25T Product size: 35.5x15x29.2mm Product weight: 35g Operating stroke: 180±10°(500-2500μsec) Rotation direction: 180°(1000-2000μsec) Angle limit: 220 Neutral point: 1520μsec Maximum stroke: ≈180°(500-2500μsec) Pulse width range: 500-2500μsec Death drive pulse width: 2μsec Wire length: JR180 mm Wire model: #22PVC

Additional information

Weight 0.06 kg
Dimensions 35 × 20 × 35 cm
