LHCXRC DJI FPV Goggles 5.8GHz Antenna LHCP


Clear and sturdy looking Crystal patch antennas for DJI FPV Goggles from LHCXRC.

Login to view prices

This product is currently out of stock and unavailable.

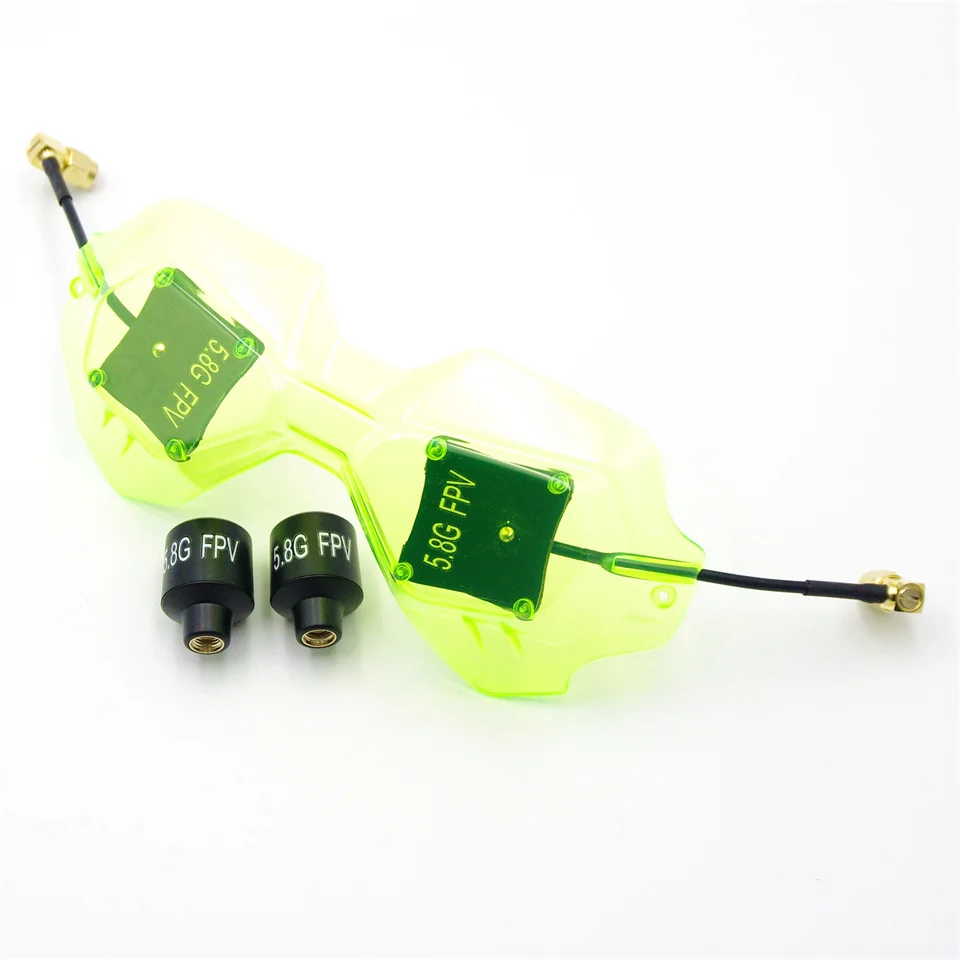

DJI FPV Goggles Antenna

Description:
This specially designed DJI FPV goggles Antenna offers higher gain, more stable video transmission and overall better signal penetration for longer distances. These are high-gain directional and LHCP circularly polarized omnidirectional antenna. It comes in a variety of colors to choose from. Translucent black, Translucent green, semi-transparent orange.

Model: LHCXRC HD-02

Frequency range: 5.3GHz-6.0GHz
Gain: 8.6 dBiC
VSWR: <=1.3
Radiation efficiency: 94%
Beam width: 75° H. 75° V.
Polarized: (LHCP) Left Hand Circularly Polarized
Interface: RP-SMA (Fits DJI Goggles directly, not to be used on standard SMA)
Weight: 31g
FOR DJI HD2 Cylindrical Antenna
Gain: 3.5dbic
Axial ratio: 0.9
Frequency range: 5.3GHz-6.0GHz
Radiation efficiency: 98%
Beam width: 360 degrees (omni-directional)
VSWR: <=1.5
Weight: 6.5g
Dimensions: 20mm x 28mm
Interface: RP-SMA (custom long)
Polarization: Left Hand Circularly Polarized (LHCP)

Click here to check our wide collection of Antennas for DJI FPV Goggles.
