Sale!

JHEMCU F745 Flight Controller Stack GF30F745-MPU Flight Controller BLHELI_32 45A / 60A 4in1 ESC 3-6S 30X30mm for FPV Freestyle

$35.00

SKU: N/A Category:

Description

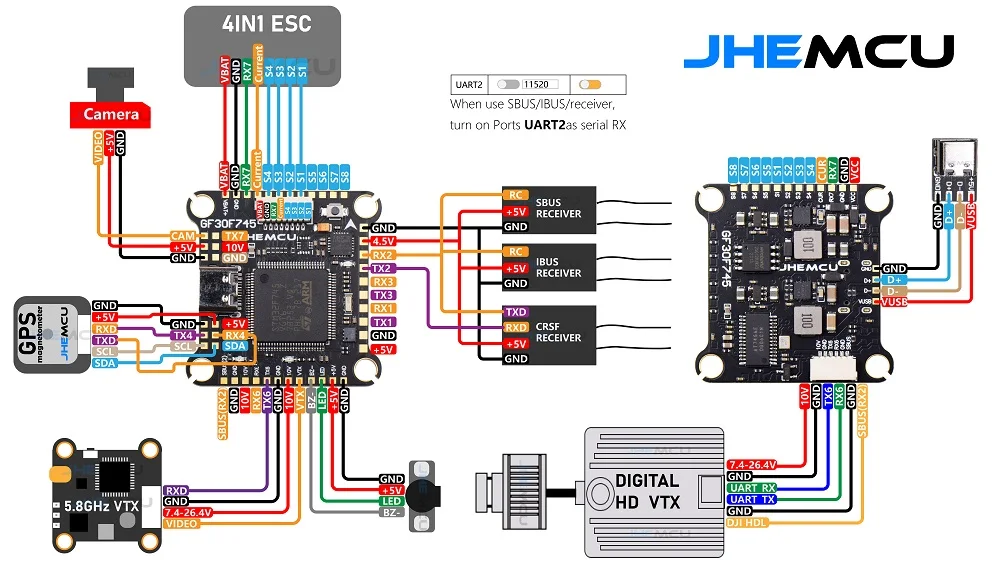

JHEMCU F745 Flight Controller Stack GF30F745-MPU Flight Controller BLHELI_32 45A / 60A 4in1 ESC 3-6S 30X30mm for RC FPV Drone

Model: GF30F745-MPU

  • Master: STM32F745VG(216 MHZ)
  • Gyroscope: MPU6000
  • Barometer: DPS 310
  • OSD Chip: AT7456E
  • Black Box: 16MB
  • LED Programming: Support
  • Buzzer: Support
  • Input Voltage: 3-6S
  • I2C Interface: Support
  • BEC: 5V/2.5A / 10V/2.0A
  • Camera Input: Support
  • UART: UART1,UART2,UART3,UART4,UART5,UART6,UART7
  • Receiver: ELRS(CRSF). TBS(CRSF),SBUS,IBUS,DSM2,DSMX
  • GPS: YES
  • Compass: YES
  • HD O3: YES
  • ESC signal: Dshot 150, Dshot 300, Dshot 600
  • USB: TYPE-C
  • Current port: YES
  • Voltage sensor: YES
  • DFU button: YES
  • Weight: 7.5g
  • Firmware: betaflight_4.4.2_JHEF745.HEX
  • Mounting hole distance: 30.5MM*30.5MM*4MM
  • Dimension: 36MM*36MM

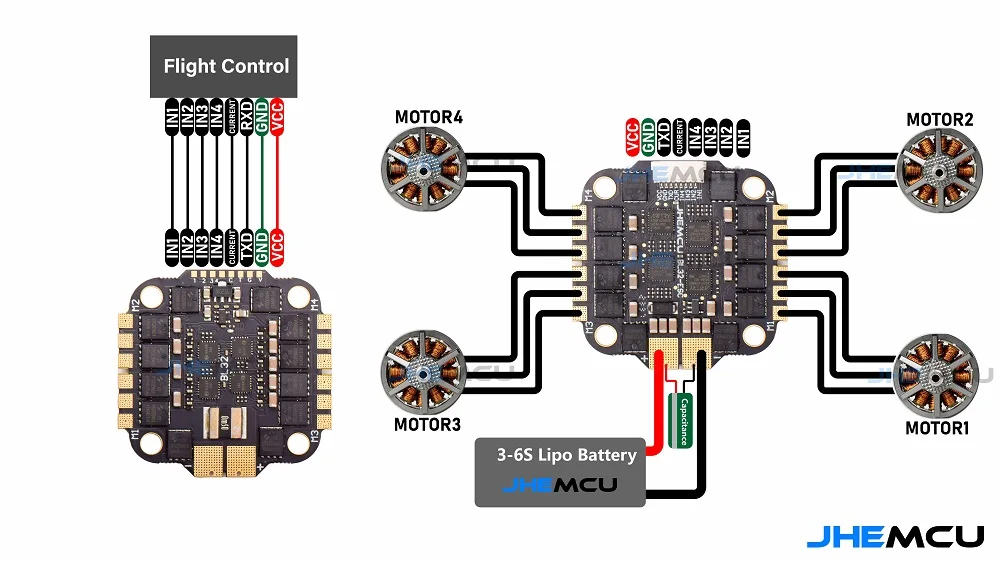

Product Name: BL32 45A/60A 4-in-1 ESC

  • Input Voltage: 3-6S (11-27V)
  • Continuous current: 45A/60A*4 ways
  • BEC: No
  • Ammeter: Yes
  • Mounting hole pitch: 30.5MM*M4
  • Overall Dimension: 44mm*43mm
  • Firmware: BLHELI_32 JHEMCU_ESC32_Multi_32_9.HEX
  • Weight: 15.4 grams

Additional information

Weight N/A
Version

GF30F745+45A FC STACK, GF30F745+60A FC STACK, BL32A45 ESC, BL32A60A ESC, GF30F745-MPUFC
