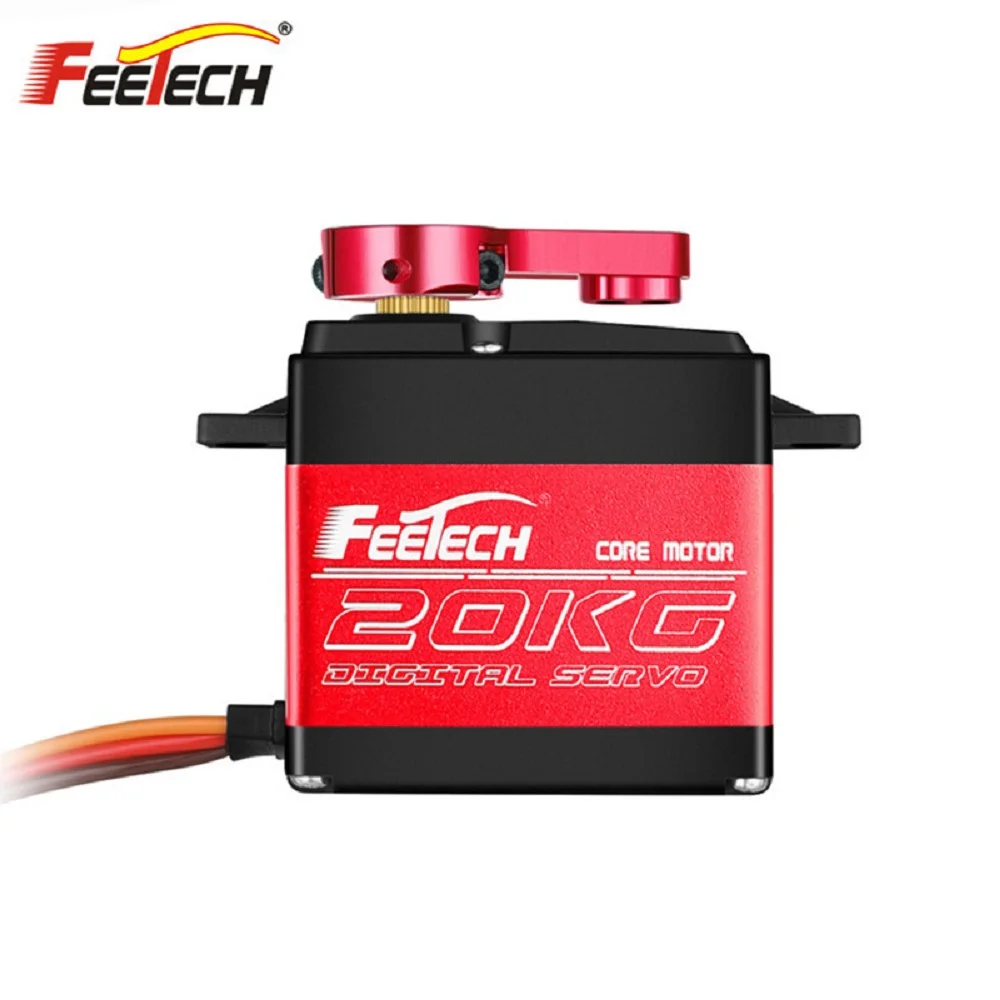

Feetech FT5320M 180 Degree Digital Servo Motor 20KG 7.4V Red Aluminum Alloy Gear Servo With Blue Metal Arm

$17.48

SKU: BS035-002 Category:

Description

Mechanical Specification:

Size:55X20X43
Limit Angle:No limit
Case material:PA+Aluminum

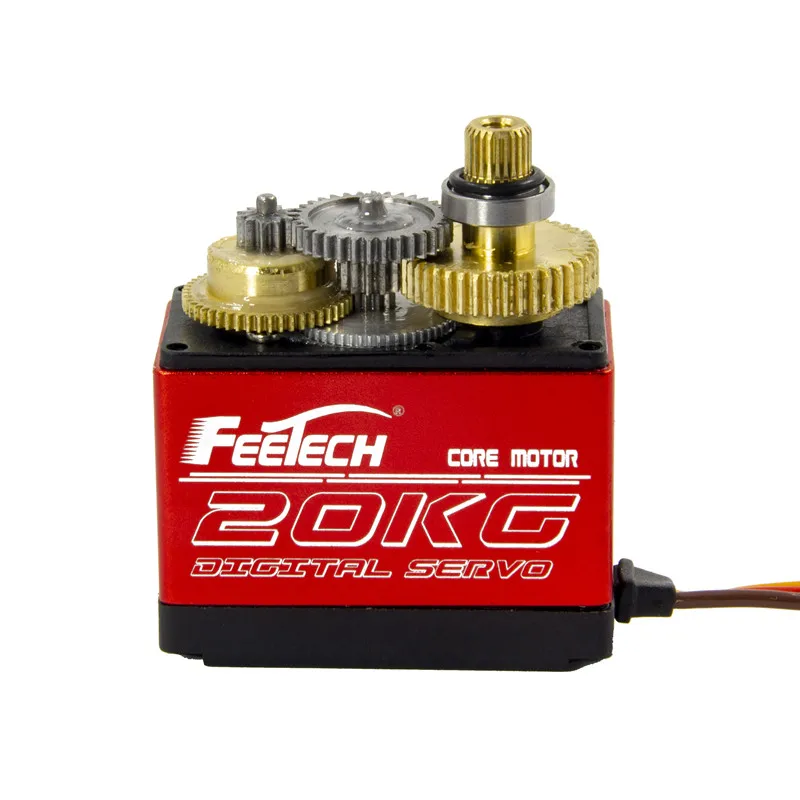

Gear material:Copper Gear
Bearing type:Ball bearings
Angle Sansor:Carbon-Film Potentiometer
Angle:220°
Life:1000000Cycles Min
Connector and Cable:Type:JR
Material:PVC
Length:30CM
Pin Definition:1 Signal
2 Vcc
3 GND”
The Weight:67± 1g
Horn Type:25T/5.9mm
Gear Ratio:1/275
Back Lash:≦0.5°
The rocker phantom:0°
The rocker screw:M3X6
Motor:Core Motor

Control Specification:

Command Signal:Pulse width modification
Control System Type:Digital comparator
Operating Travel:180°(at 500→2500μsec)
Left&Right Travelling Angledeviation:≤ 5°
Centering Deviation:≤1°
Neutral Position:1500 μsec
Dead Band Width:≤4 μsec
Rotating Direction:Counterclockwise(1500→2000 μsec)
Pulse Width Range:500→2500 μsec
Electronic Protection:Stall 8sec

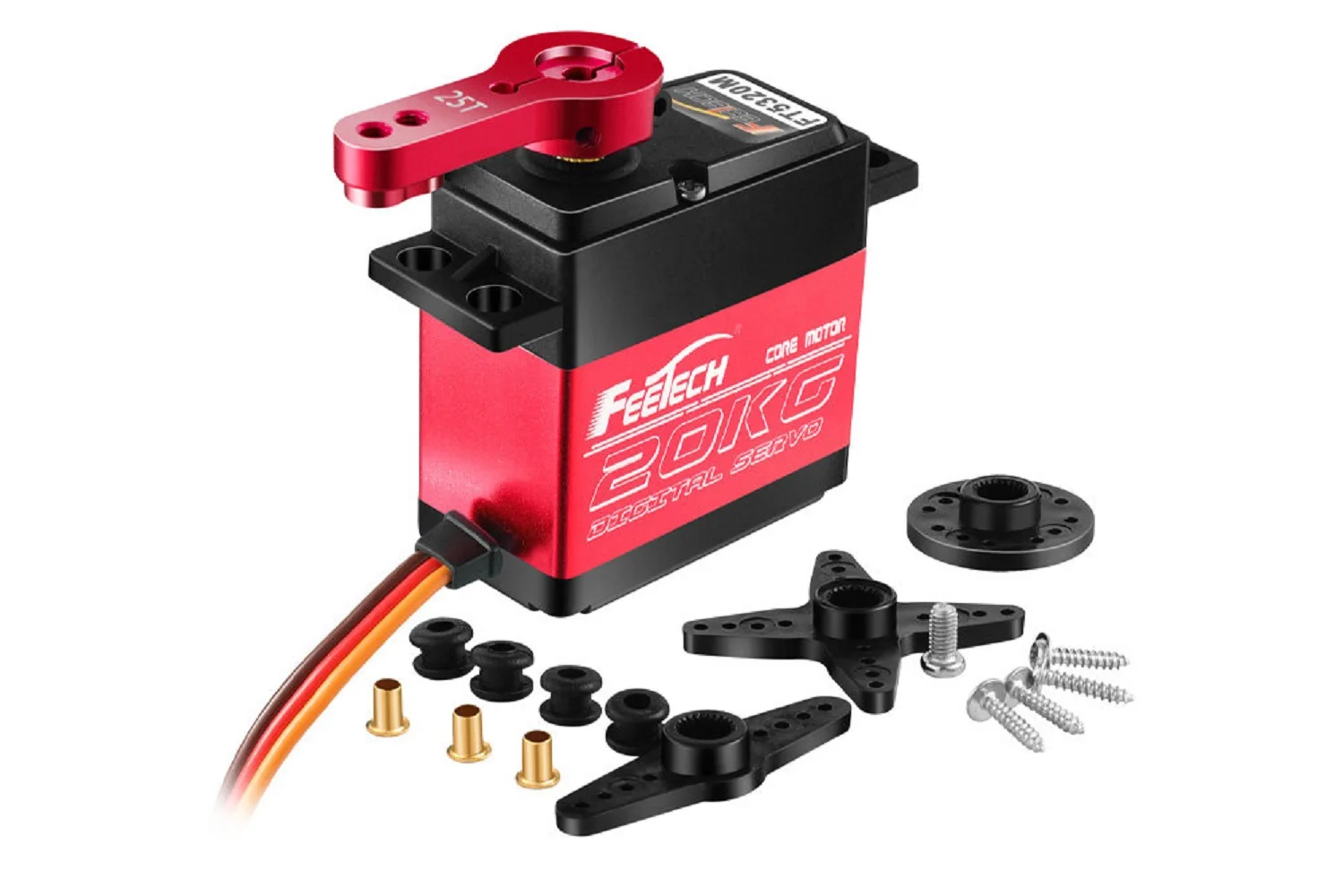

3、Package Include:

1X Feetech FT5320M Digital Servo
1 X Metal Arm

Additional information

Weight 0.3 kg
Dimensions 15 × 15 × 15 cm
